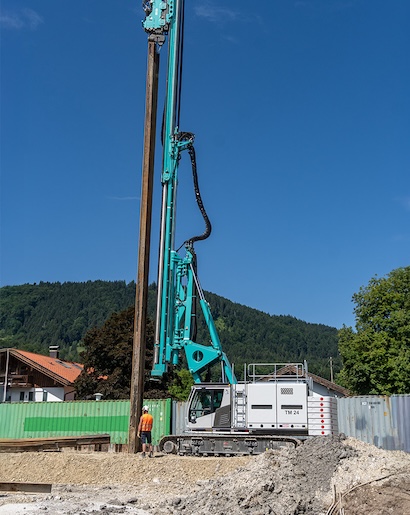

ABI Mobilram Multi-Purpose Rig

With over 35 years of proven history and 2,000 units operational worldwide, the ABI Mobilram has revolutionized the foundation and shoring construction industries. This highly mobile and multi-purpose rig is designed for drilling, vibrating, impacting, and pressing piles efficiently and cost-effectively.

Multifunctional

The telescopic leader mast is the key component on the Mobilram system which guides attachments for both common and specialized pile driving, extracting, augering, soil mixing, and static pressing operations. These telescoping masts provide crowd/retract forces from piling lengths up to 72 feet.

High Mobility

In transport configuration the telescopic leader mast is completely contracted to its minimum length. Bigger units come with carriers featuring an extendable under carriage for great on site stability and compact transport dimensions. The ABI Mobilram is a true self-propelled and compact one-load transporting unit.

Power

Hydraulically removable counterweights and extendable tracks are offered as options on the high tech Sennebogen carriers providing up to 800 HP for operation of powerful driving and drilling tools. The vibratory drivers/extractors provide up to 157 tons driving force with high frequency/ variable moment features that allow for pile installation and removal with minimal disturbance to surrounding soils and structures.

Low Set Up Times

The time required to set up an ABI Mobilram is typically less than 30 minutes and bringing it back to transport configuration does not take much longer. It is done in a one step operation and all of the attachments are connected and disconnected quickly and safely by the docking system or the traditional rapid changing device.

Accuracy

Computerized controls include automated alignment of the telescoping mast for accurate placement/removal of piles. This rugged and dependable rig is ideal for installing solar panel piles and pipe in tough soil conditions.

Speed

The ABI Mobilram system safely, easily and quickly picks piles from the stack on the ground and hoists them to the vertical position perfectly placed for clamping by the vibro.

Flexibility

Mobilram attachments include vibratory driver/extractors, vertical boring heads for pre-drilling/soil relieving/auger-cast piles, diesel hammers, double auger head drives for installation of secant piles and silent piling/hydro-press system.

ABI Mobilram Telescopic Leader Mast

Telescopic Leader Mast

ABI Videos

Watch All Videos

ABI Gallery

View Full Gallery

Mobilram Attachments

The Mobilram is a highly versatile rig that can be outfitted with a number of different attachments to perform a wide variety of piling applications quickly and efficiently.

Vibratory Hammer
Vibratory Hammer

The vibratory hammer with adjustable static moment is suitable for the piling and extracting of sheet pile walls, H-beams and pipes as well as alternative foundation methods like vibro, cast-in-place, gravel and sand piles.

Learn More

Vibratory Hammer

Dual Auger Casing Drive
Dual Auger Casing Drive

The Dual Auger Casing Drive is ideal for drilling operations that are directly against adjacent structures (contiguous type, tangential, secant and on-the-wall) and for soil mix applications.

Learn More

Dual Auger Casing Drive

CFA Drill Head
CFA Drill Head

The CFA Drill Head is ideal for applications like ground release drilling, dwell drilling or pile foundation drilling, but also contains an injecting head for the installation of CFA and part and full displacement piles.

Learn More

CFA Drill Head

Z Pile Pusher
Z Pile Pushers

The "Z" Pile Pusher is ideal for static pressing pile elements on construction sites where noise and vibration emissions must be limited or for applications where 4 sheets can be pressed at one time to maximize productivity.

Learn More

Z Pile Pushers

Diesel Hammers
Diesel Hammers

The Mobilram system can also accommodate Delmag diesel hammers which are usable in all displaceable soils and ideal for back driving and for determination of the load bearing capacity.

Learn More

Diesel Hammers

Hydraulic Impact Hammers
Hydraulic Impact Hammers

Certain hydraulic impact hammers can be attached to the Mobilram rig and are especially designed for impacting pre-fabricated concrete piles.

Learn More

Hydraulic Impact Hammers

Mobilram Vs Free Suspended Hammers

Why should you consider renting the ABI Mobilram over traditional free suspended hammers? The advantages are almost limitless.

Checkmark

The ABI Rig requires less personnel which makes the job safer and easier to coordinate.

Checkmark

Set up time and demobilization takes one hour vs. 8 hours o rmore for a crane.

Checkmark

Moves with ease under obstacles in small confined spaces/job sites.

Checkmark

Pre-drilling ability allows for the installation of piles in ground that is unsuitable for vibration.

Checkmark

Different tools can be interchanged on site.

Learn More
