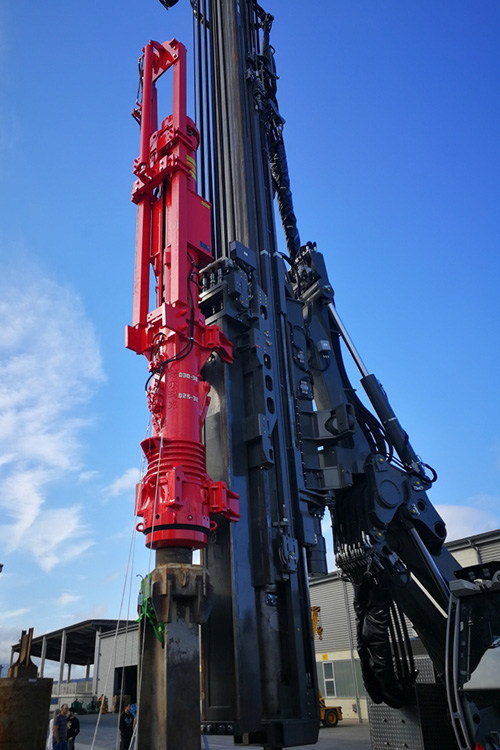

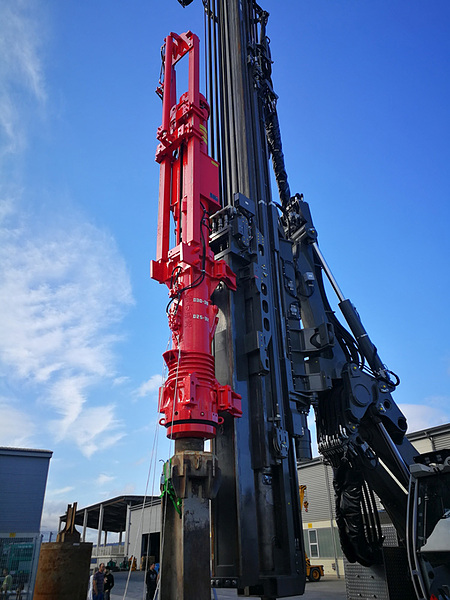

ABI Mobilram TM 17
The ABI TM 17 is a core member of the Mobilram fleet. Utilizing the latest technology as a member of ABI’s newest leader mast generation, the rig is robustly designed to handle difficult piling and drilling applications. The unit offers high torque absorption coupled with ample horse power to operate larger vibratory and drilling attachments, allowing the machine the versatility of low transport weight with superior power.
| Rig Model | TM 17 |
|---|---|
| Rig Features | |
| Docking | |
| Sennebogen Carrier | SR 35 T |
| Engine, HP | CAT, 639 |
| Aux. Winch, Capacity | yes, 5.6 ton |
| Vibratory Attachment | MRZV 30 VV |
| Transport Weight w/o Counterweight | 108,000 lb. |
| Counterweight | |
| Operating Weight w/ std. Vibratory Attachment | 150,150 lb. |
| Vibratory Attachment | MRZV 30 VV |
|---|---|
| w/SKZ 1800 | |
| Eccentric Moment | 0 - 2,601 in. lb. |
| Max. Operating Speed | 2600 cpm |
| Max. Driving Force | 165 tns |

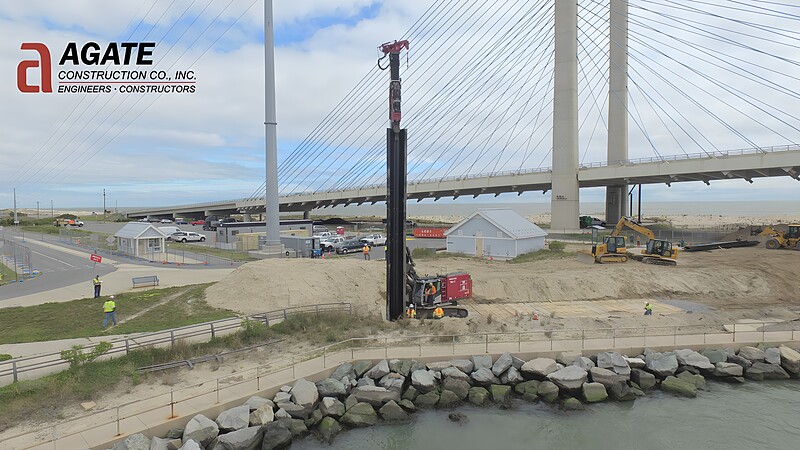

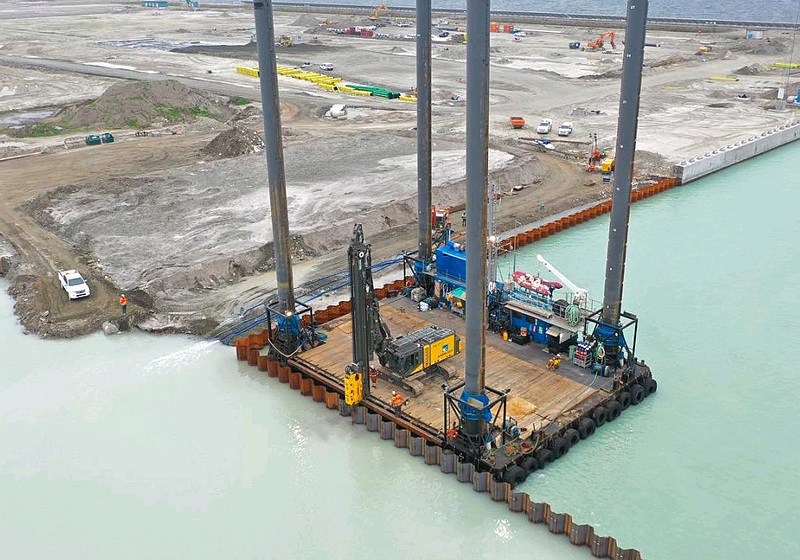

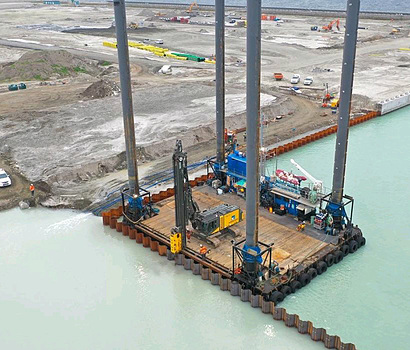

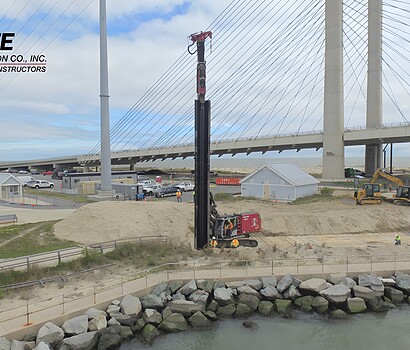

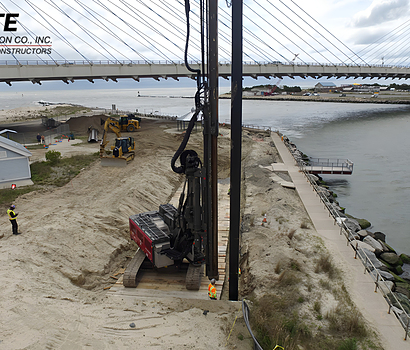

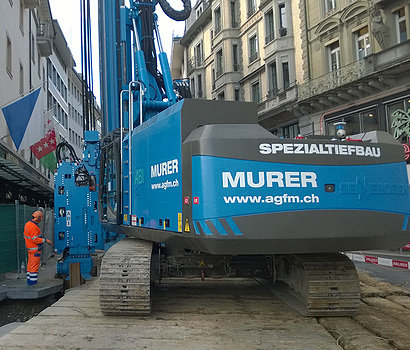

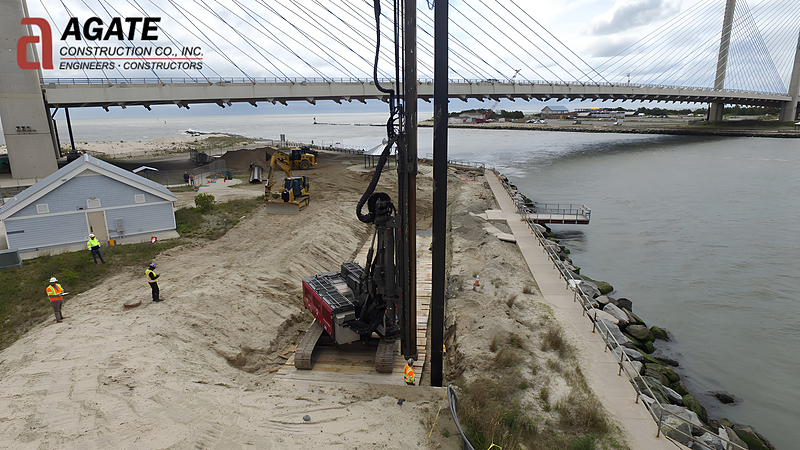

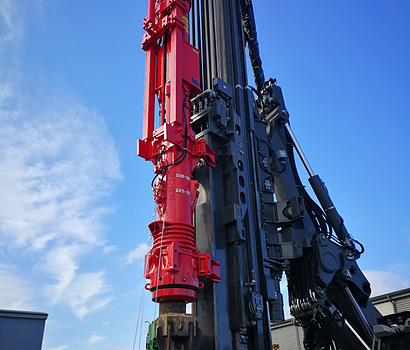

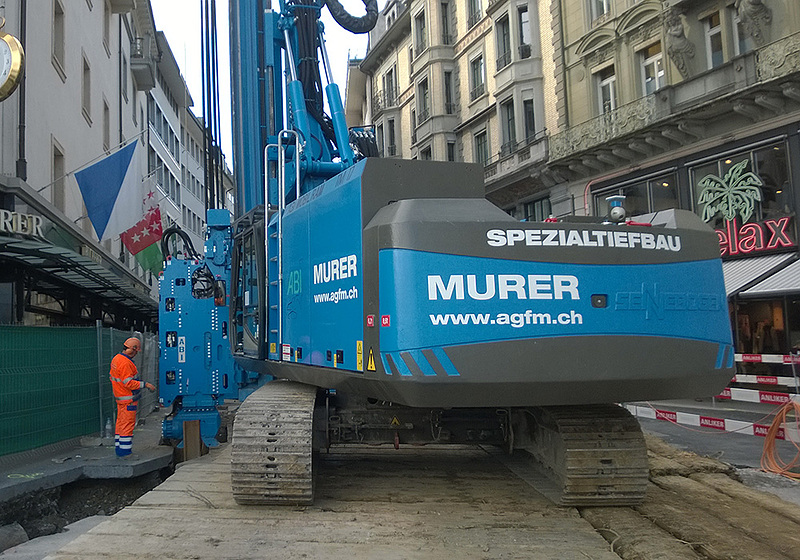

Photo Gallery
