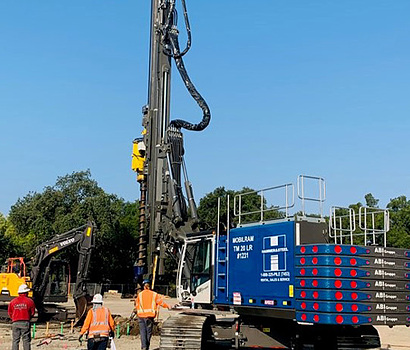

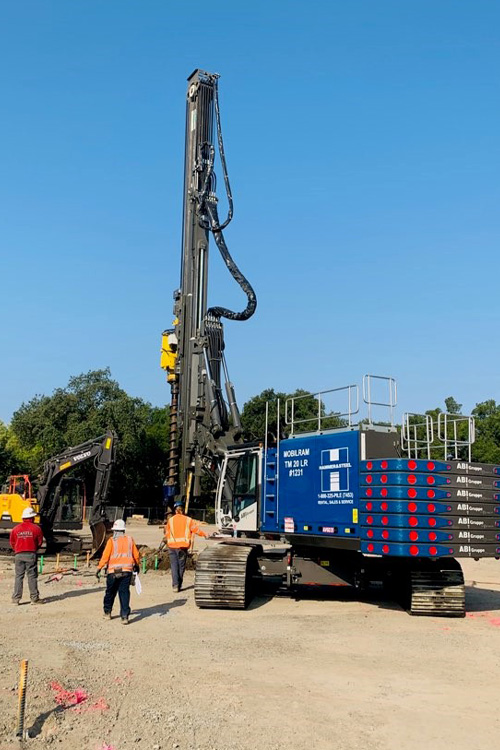

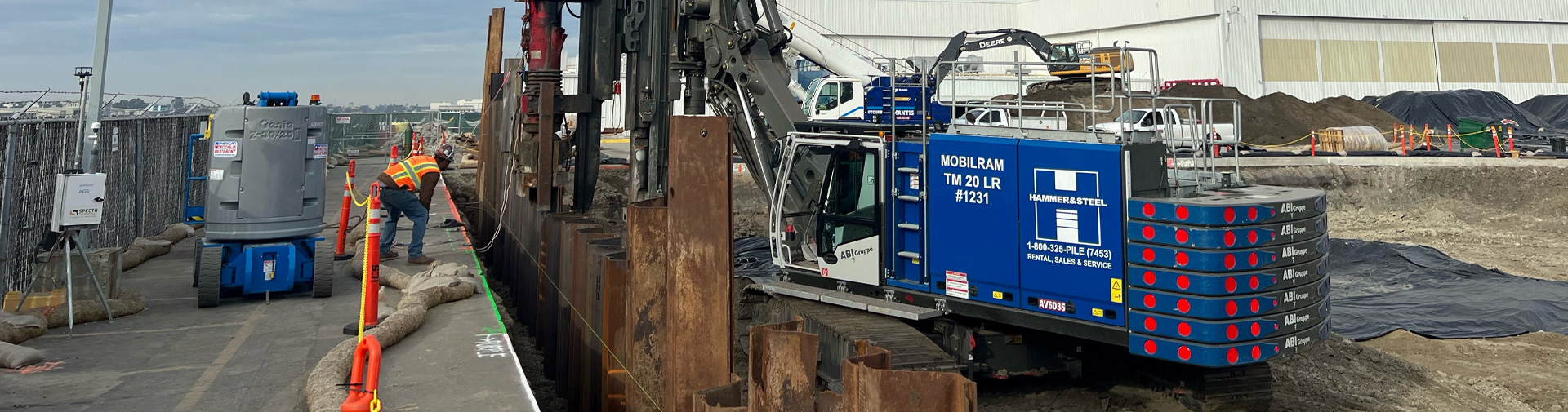

ABI Mobilram TM 20 LR
The new TM 20 LR (long-reach) telescopic leader rig joins ABI’s line up and boasts the same long-reach capabilities of previous models, able to reach a full 9.8’ further when accessing the pile driving axis. This machine can install and extract longer piles than previous LR ABI models, up to 65’. Perfect for difficult-to-access work and various specialized jobs, the unit adds another level of flexibility to our piling rig fleet.
| Rig Model | TM 20 LR |
|---|---|
| Rig Features | |
| Docking | D6 |
| Sennebogen Carrier | SR 35T |
| Engine, HP | CAT C18, 639 |
| Aux. Winch, Capacity | 5.6 ton |
| Vibratory Attachment | MRZV 30 VV |
| Transport Weight w/o Counterweight | 123,350 lb. |
| Counterweight | |
| Operating Weight w/ std. Vibratory Attachment | 184,650 lb. |
| Vibratory Attachment | MRZV 30 VV |
|---|---|
| w/SKZ 1800 | |
| Eccentric Moment | 0 - 2,601 in. lb. |
| Max. Operating Speed | 2600 cpm |
| Max. Driving Force | 165 tns |

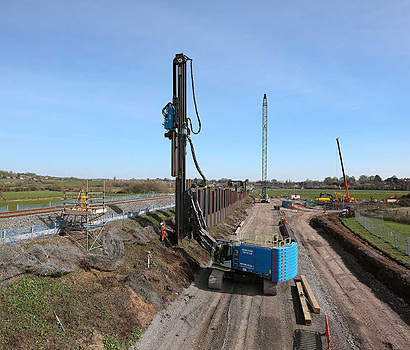

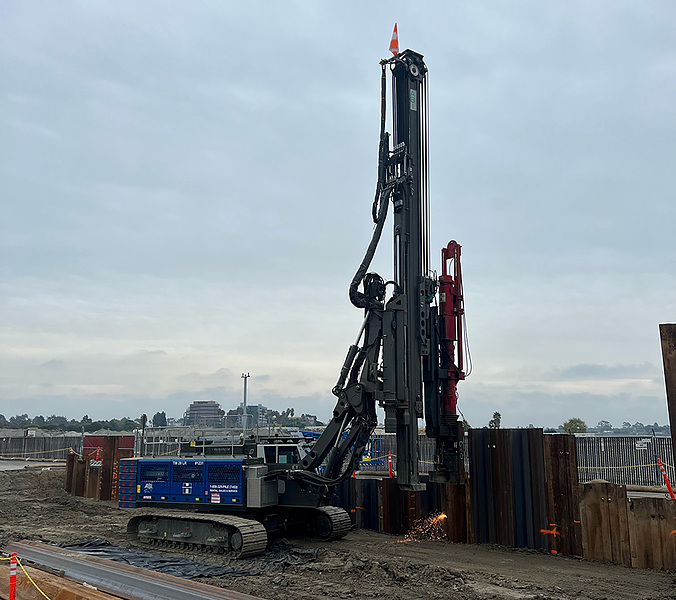

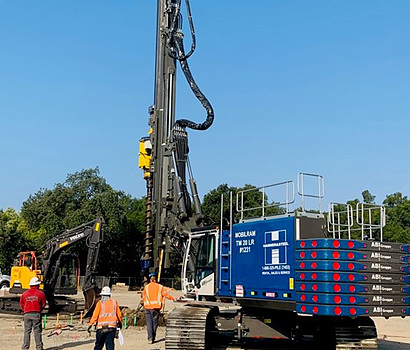

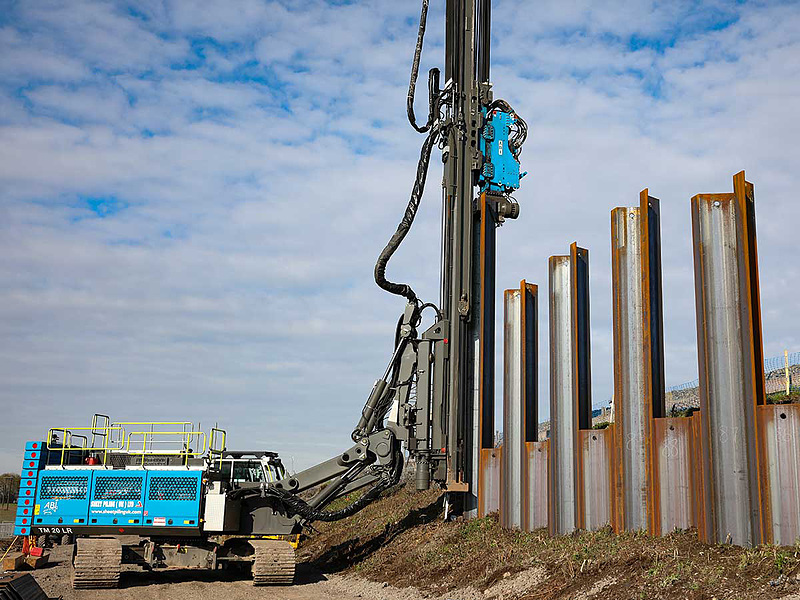

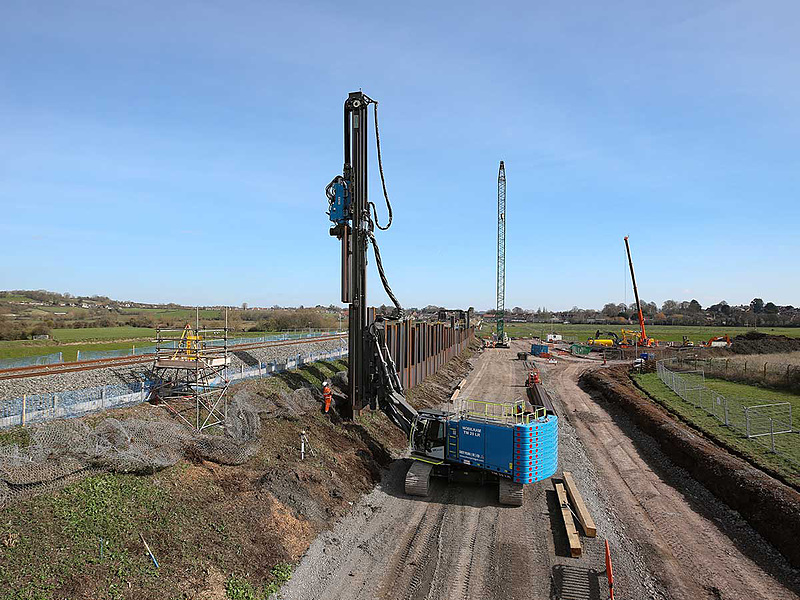

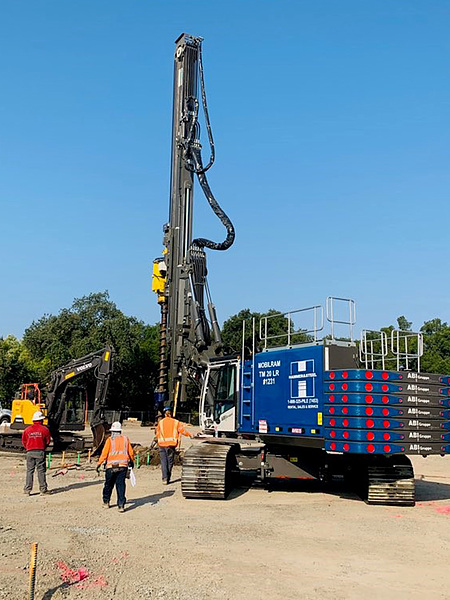

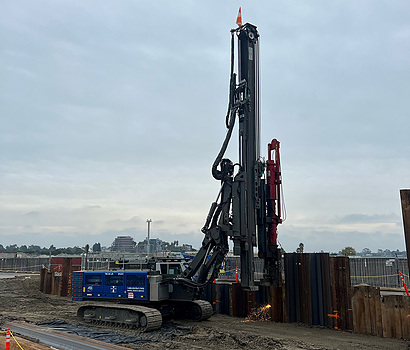

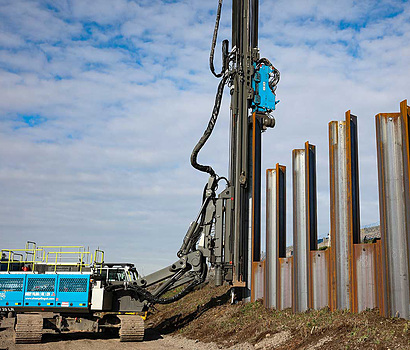

Photo Gallery
