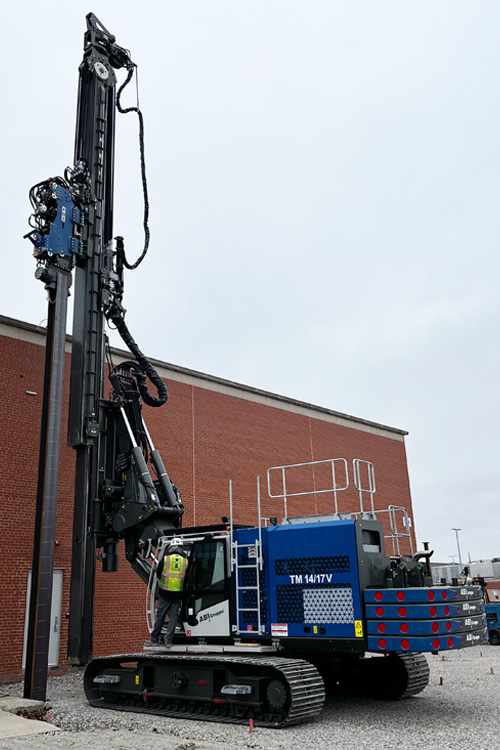

ABI Mobilram TM 14/17V
The ABI MOBILRAM TM 14/17 V was specifically designed to minimize shipping weight, while maintaining high torque absorption and maximizing piling length for a midsize piling rig. This telescopic leader mast in what ABI terms the ‘box’ design is suitable for many common piling and drilling applications around the United States .
| Rig Models | TM 14/17V |
|---|---|
| Docking | D4 |
| Sennebogen Carrier | SR 30 T |
| Engine, HP | CAT C9.3B, 462 |
| Aux. Winch, Capacity | opt. 5.6 ton |
| Vibratory Attachment | MRZV 20 VV |
| Transport Weight w/o Counterweight | 93,940 lb |
| Counterweight | Stackable base plate - 4,629 lb, 4 pcs stackable 5,400 lb ea |
| Operating Weight w/ std. Vibratory Attachment | 30,000 lb |
| Vibratory Attachment | MRZV 20VV |
|---|---|
| w/SKZ 1120 | |
| Eccentric Moment | 0 - 1,734 in. lb. |
| Max. Operating Speed | 2600 cpm |
| Max. Driving Force | 110 tns |

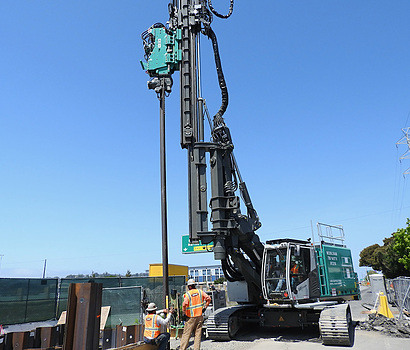

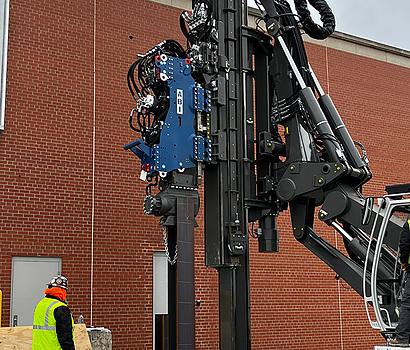

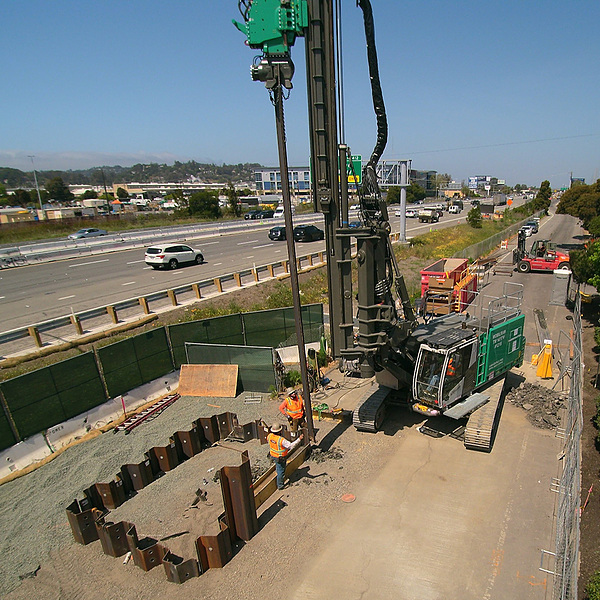

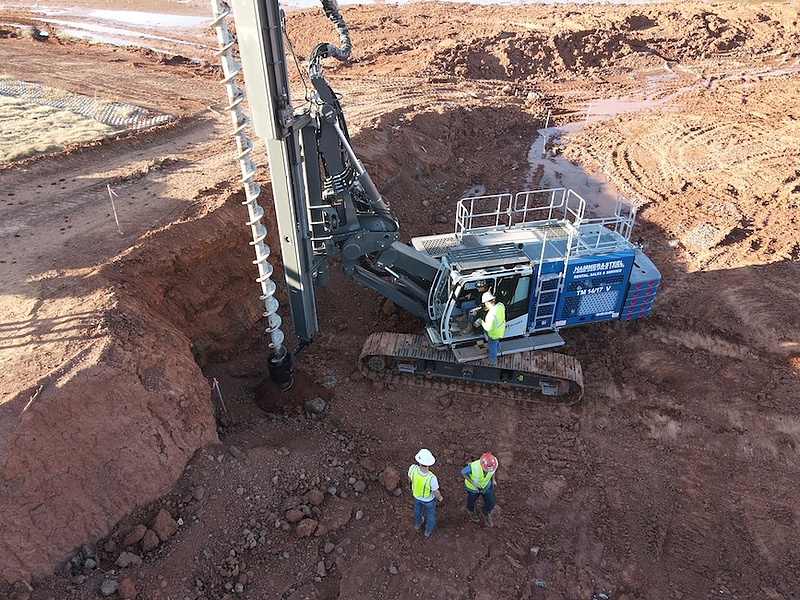

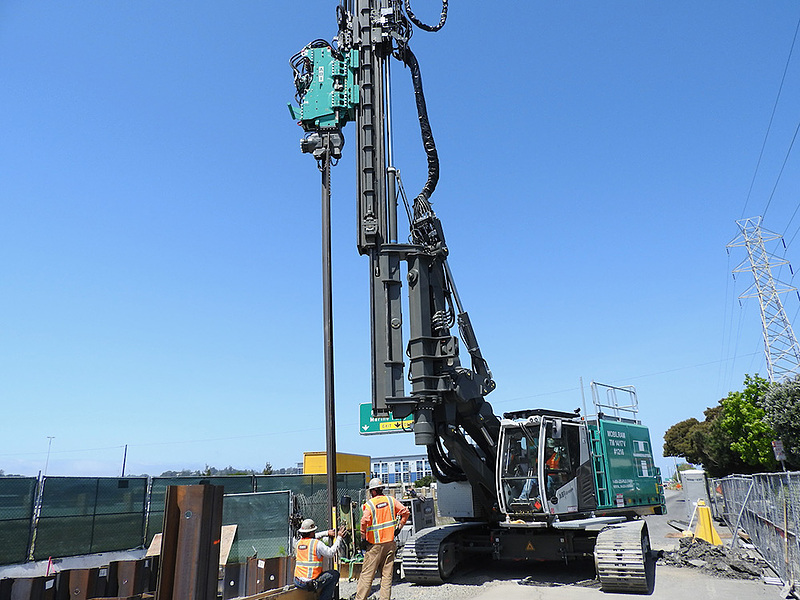

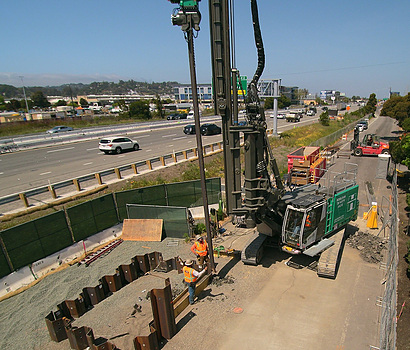

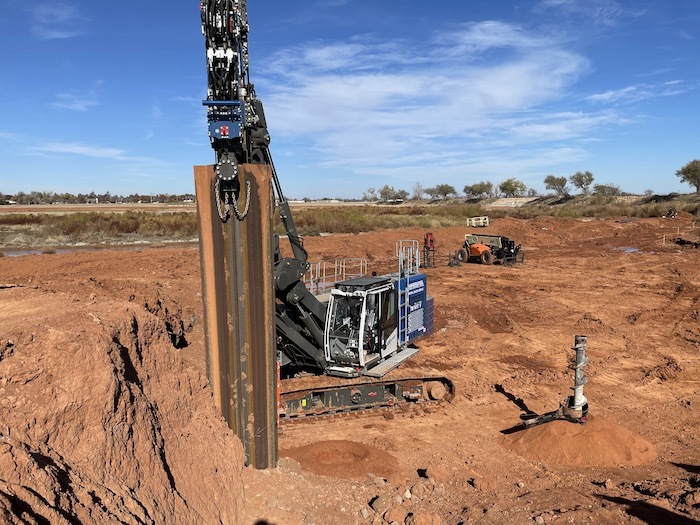

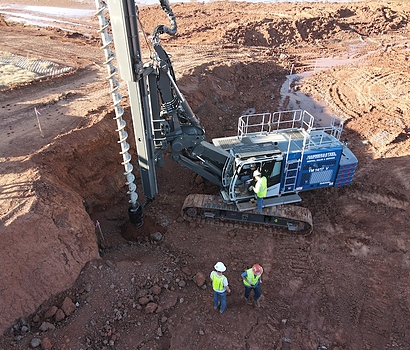

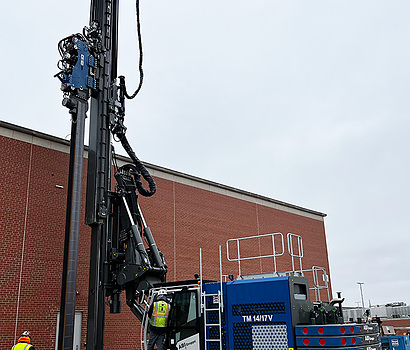

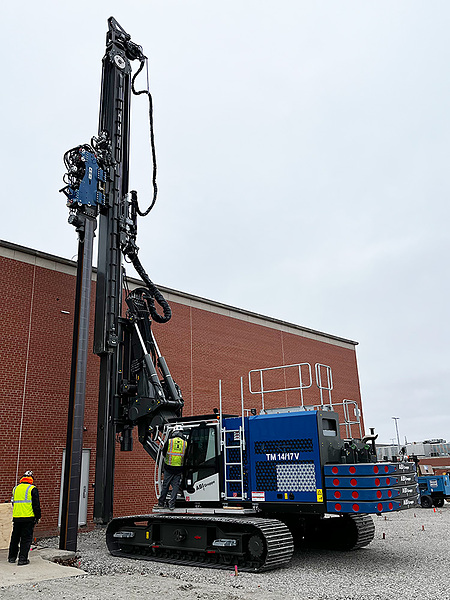

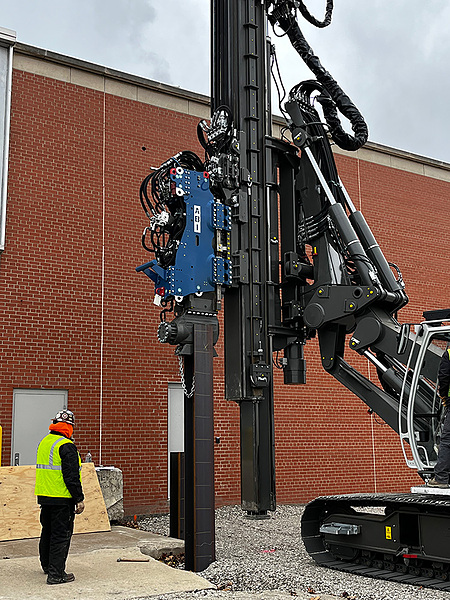

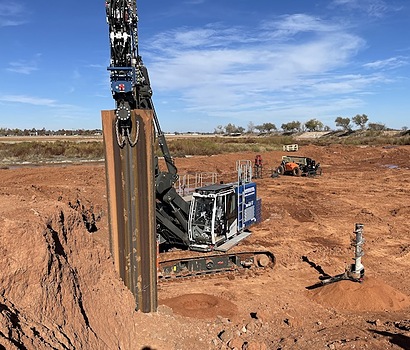

ABI MOBILRAM TM 14/17V Photo Gallery
