ABI Mobilram TM 24
The ABI TM 24 telescopic leader mast is designed for demanding deep foundation and piling applications. Paired with the SR 35 HD-Plus or SR 45 carriers, the TM 24 delivers exceptional performance, mobility, and versatility for a wide range of piling and drilling operations.
Carrier Options
The TM 24 is available in two configurations:
- Version A – SR 35 HD-Plus
- Engine Power: 470 kW
- Track Shoes: 700 mm
- Operating Weight: 89,550 kg
- Version B – SR 45
- Engine Power: 563 kW
- Track Shoes: 900 mm
- Operating Weight: 91,580 kg
Both carriers are equipped with CAT C18 engines meeting EU Stage V / US EPA Tier 4f emission standards. Hydraulic systems deliver up to 330 bar operating pressure, ensuring high performance across all applications.
TM 24 Specifications
| Feature | Specification |
|---|---|
| Total Height | 29,250 mm |
| Stroke | 24,200 mm |
| Max. Torque Absorption | 200 kNm |
| Feed Force (per cylinder) | 350 / 230 kN up/down |
| Mast Slewing Range | ± 90° |
| Max. Load Capacity | 18,000 kg (360° operation, depending on ballast and reach) |
| Inclination | 4° / 4° left/right • 4° forward • 5° backward |
Photo Gallery

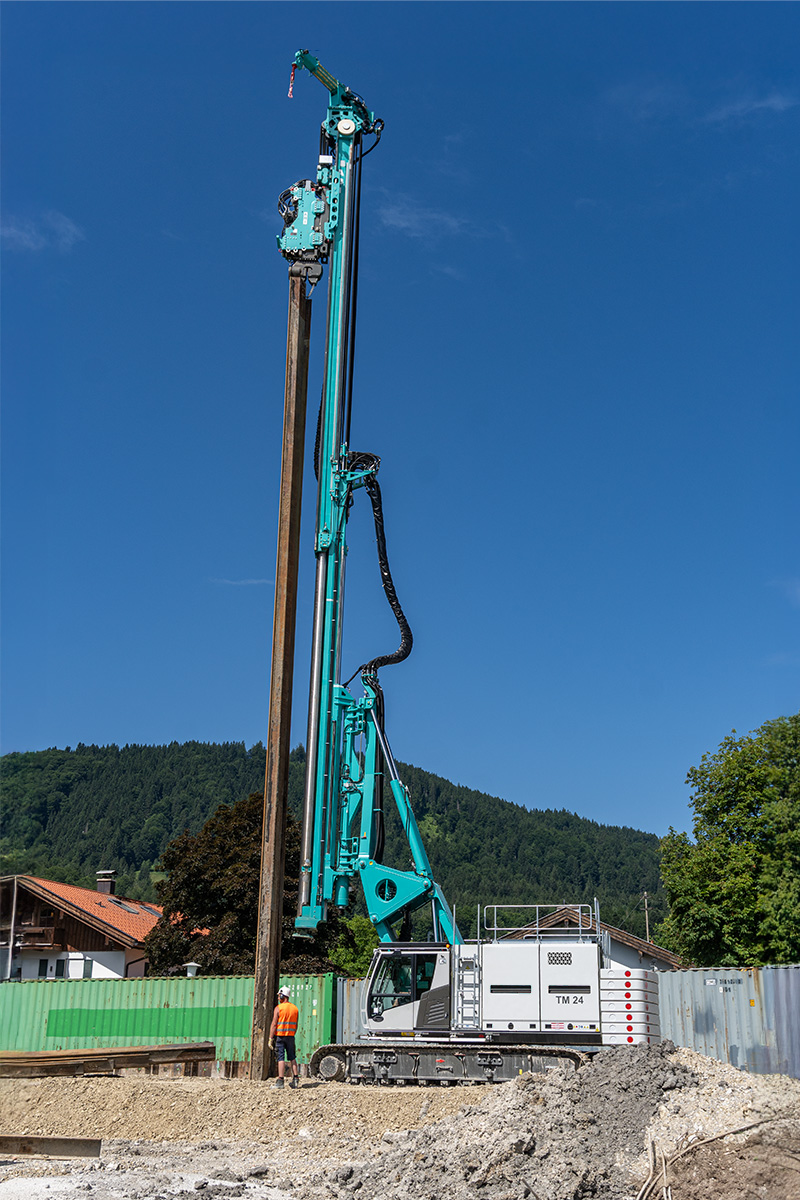

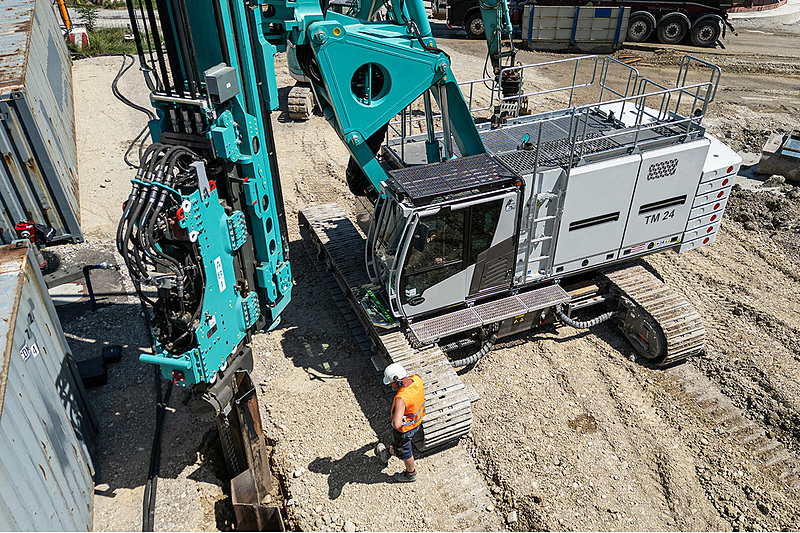

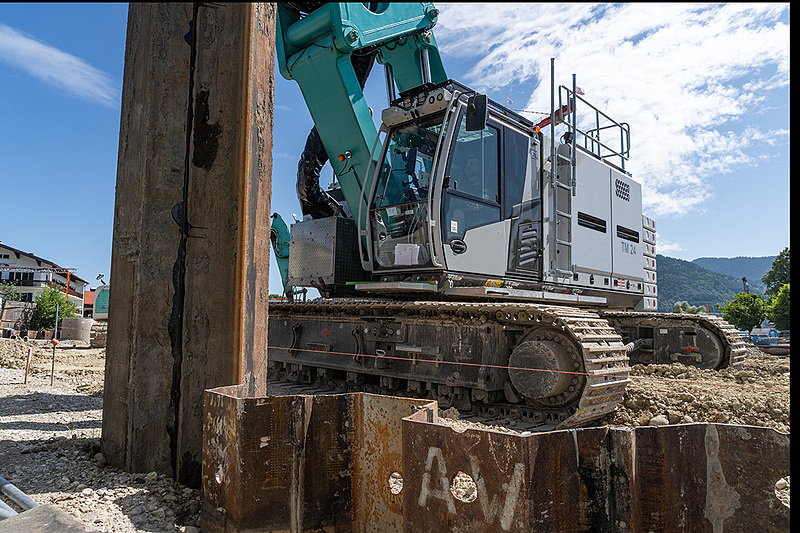

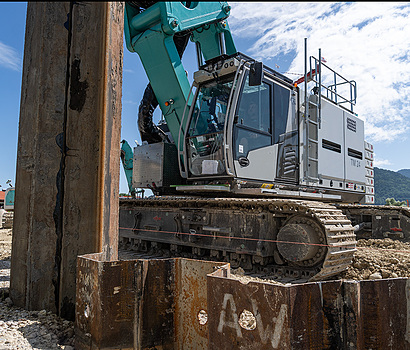

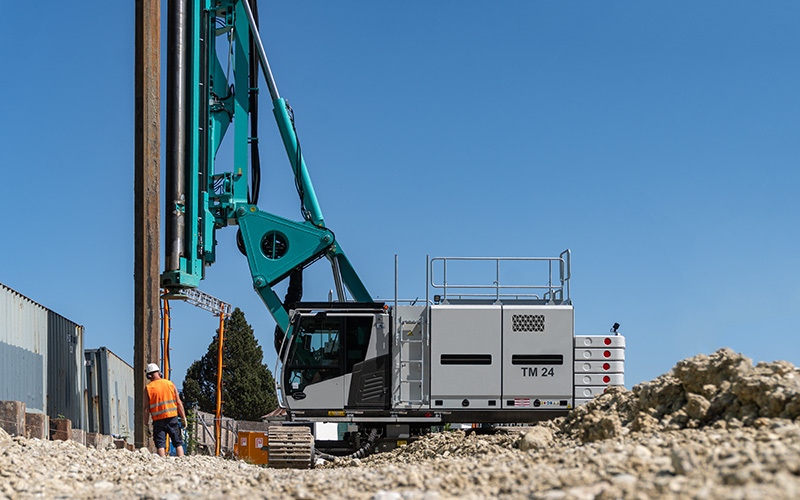

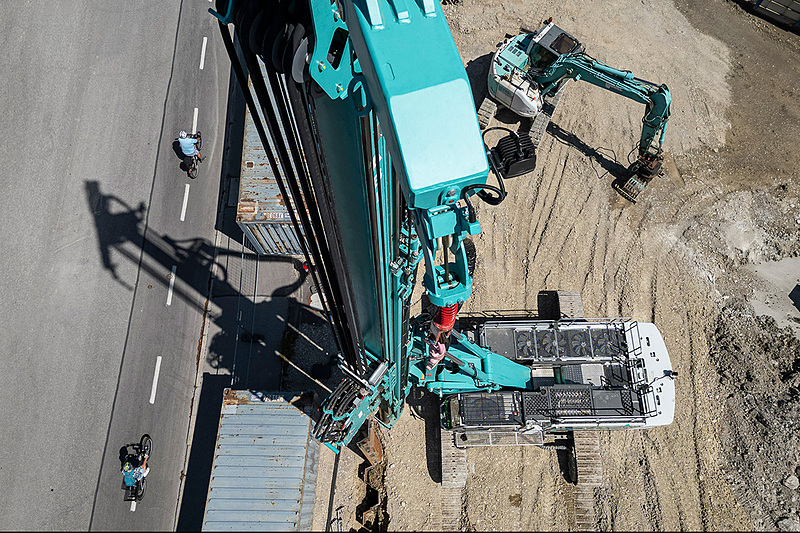

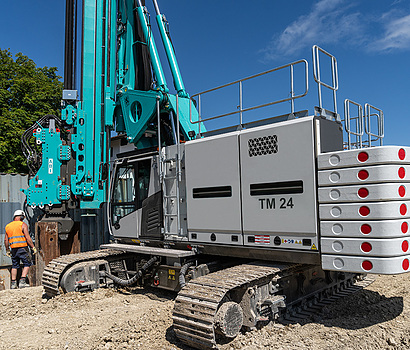

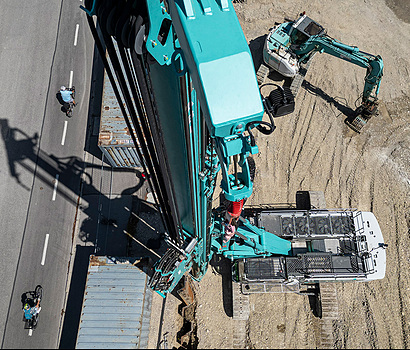

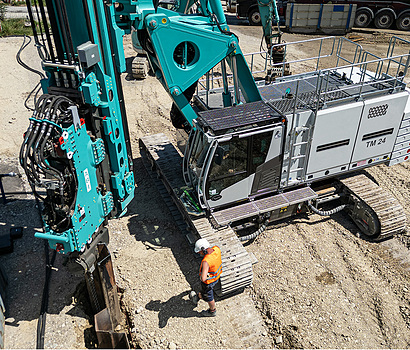

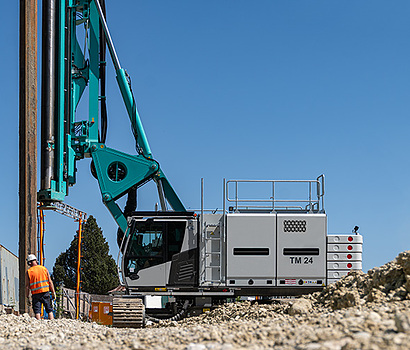

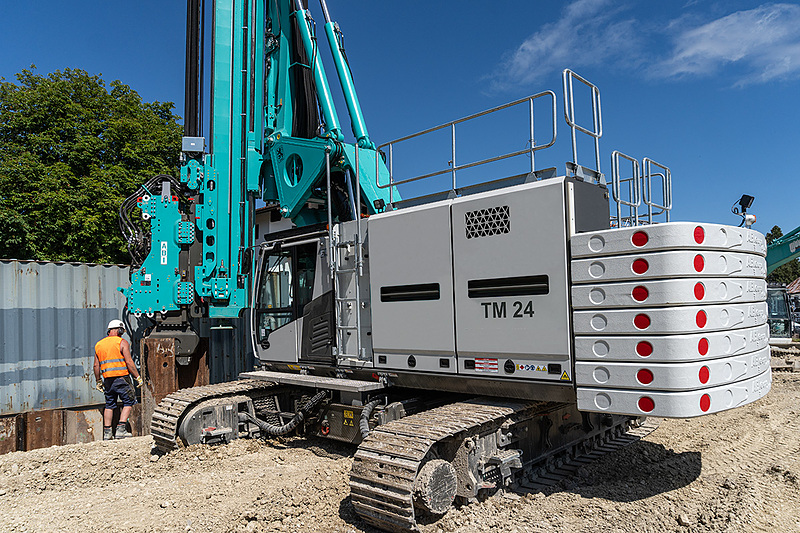

TM 24 Telescopic Leader Mast
Transport Efficiency
Despite its size, the TM 24 is engineered for streamlined transport.
- Transport weight (without attachments): 52,520 – 52,600 kg
- Detachable counterweight: 18,650 – 20,650 kg
- Hydraulic extendable undercarriage with optional detachable crawler track units simplifies setup and mobility on site.
Compatible Attachments
The TM 24 supports a wide range of attachments, making it suitable for multiple applications:
- Vibrators: MRZV 30VV, MRZV 32VV, MRZV 36VV
- Auger Drives: RHP 150S, VDW 140703, VDW 2001004, TMBA 2/3/4
- Diesel Pile Hammer: DELMAG D19
- Additional options: Hydraulic auxiliary winch, auger guide supports, hydraulically extendable leader mast foot.
Applications
The TM 24 is built for versatility in challenging ground conditions and specialized civil engineering projects:
- Piling with vibrator
- Pre-drilling / CFA drilling
- VDW drilling
- Soil mixing with TMBA
Get Pricing & Availability
Hammer & Steel is proud to offer the TM 24 telescopic leader mast for your next foundation project. Request a Quote or call 800-325-7453 to speak with a piling equipment specialist.
