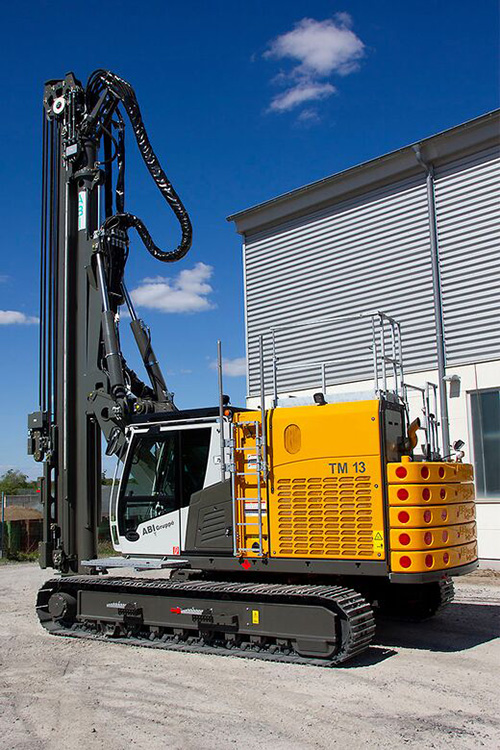

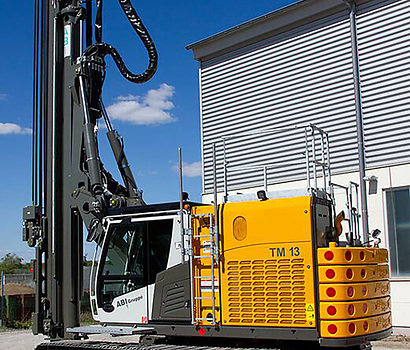

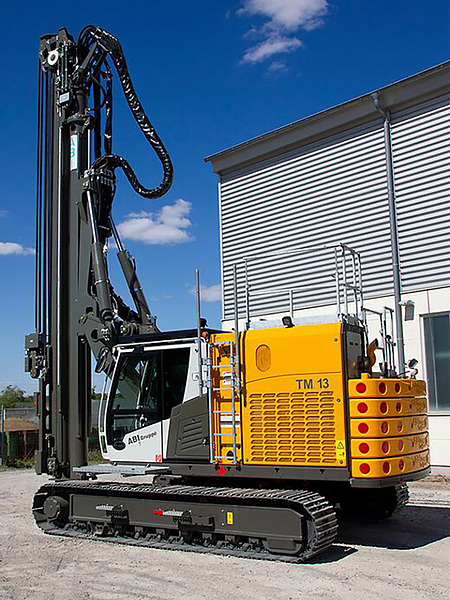

ABI Mobilram TM 13
The ABI Mobilram TM 13 is the smallest machine of the new leader mast generation. A versatile machine suitable for pile driving, predrilling, stone columns, solar pile, and many other applications, the telescopic leader mast offers high extraction forces as well as high torque absorption and very compact dimensions.
| Rig Model | TM 13 |
|---|---|
| Docking | D6/4 |
| Sennebogen Carrier | SR 20 |
| Engine, HP | Cummins B6.7, 284 |
| Aux. Winch, Capacity | opt 14kN/1.4 ton |
| Vibratory Attachment | MRZV 16 VV |
| Transport Weight w/o Counterweight | 31,950 kg/70,450 lb. |
| Counterweight | Stackable base plate - 1500 kg 5 pcs stackable 1,500 kg ea |
| Operating Weight w/ std. Vibratory Attachment | 44,600 kg/98,350 lb |
| Vibratory Attachment | MRZV 16 VV |
|---|---|
| w/SKZ 900 clamp | |
| Eccentric Moment | 0 - 1387 in. lb. |
| Max. Operating Speed | 2600 rpm |
| Max. Driving Force | 75 tons |
Photo Gallery
