ABI Mobilram

ABI Mobilram Multi-Purpose Rig

With over 35 years of proven history and 2,000 units operational worldwide, the ABI Mobilram has revolutionized the foundation and shoring construction industries. This highly mobile and multi-purpose rig is designed for drilling, vibrating, impacting, and pressing piles efficiently and cost-effectively.

ABI Mobilram

The telescopic leader mast is the key component on the Mobilram system which guides attachments for both common and specialized pile driving, extracting, augering, soil mixing, and static pressing operations. These telescoping masts provide crowd/retract forces from piling lengths up to 72 feet.

In transport configuration the telescopic leader mast is completely contracted to its minimum length. Bigger units come with carriers featuring an extendable under carriage for great on site stability and compact transport dimensions. The ABI Mobilram is a true self-propelled and compact one-load transporting unit.

Hydraulically removable counterweights and extendable tracks are offered as options on the high tech Sennebogen carriers providing up to 800 HP for operation of powerful driving and drilling tools. The vibratory drivers/extractors provide up to 157 tons driving force with high frequency/ variable moment features that allow for pile installation and removal with minimal disturbance to surrounding soils and structures.

The time required to set up an ABI Mobilram is typically less than 30 minutes and bringing it back to transport configuration does not take much longer. It is done in a one step operation and all of the attachments are connected and disconnected quickly and safely by the docking system or the traditional rapid changing device.

Computerized controls include automated alignment of the telescoping mast for accurate placement/removal of piles. This rugged and dependable rig is ideal for installing solar panel piles and pipe in tough soil conditions.

The ABI Mobilram system safely, easily and quickly picks piles from the stack on the ground and hoists them to the vertical position perfectly placed for clamping by the vibro.

Mobilram attachments include vibratory driver/extractors, vertical boring heads for pre-drilling/soil relieving/auger-cast piles, diesel hammers, double auger head drives for installation of secant piles and silent piling/hydro-press system.

Mobilram Rigs

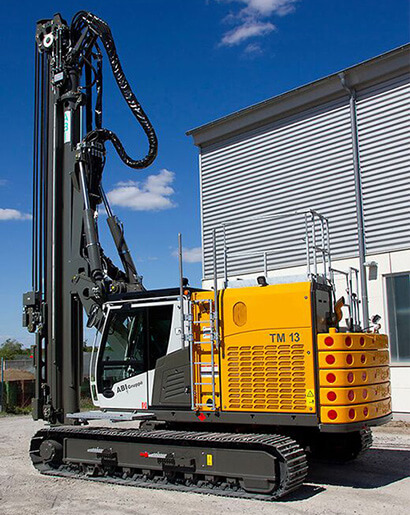

ABI Mobilram TM 13

ABI Mobilram TM 13

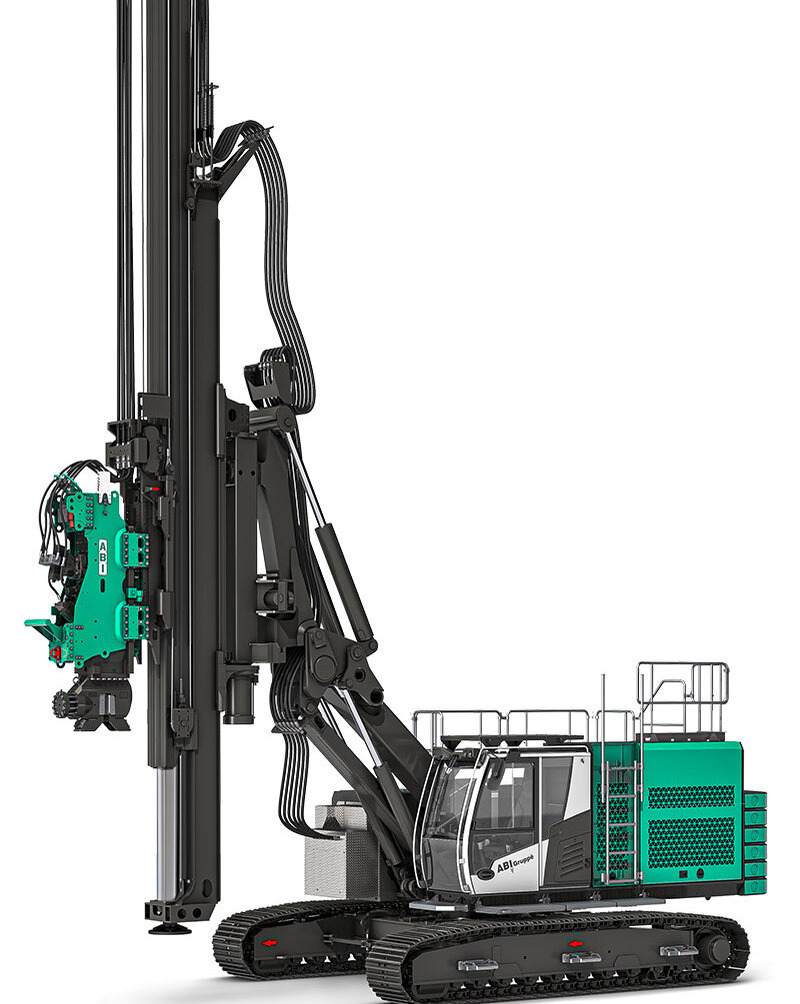

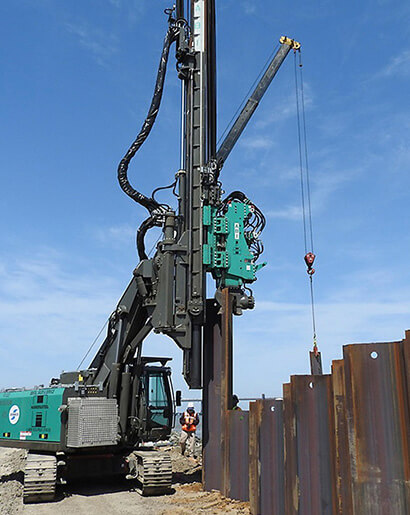

ABI Mobilram TM 13/16 SL

ABI Mobilram TM 13/16 SL

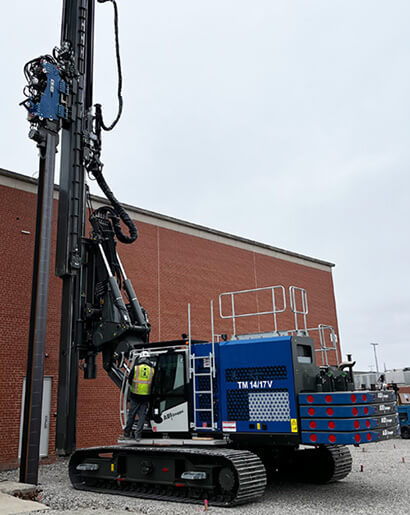

ABI Mobilram TM 14/17V

ABI Mobilram TM 14/17V

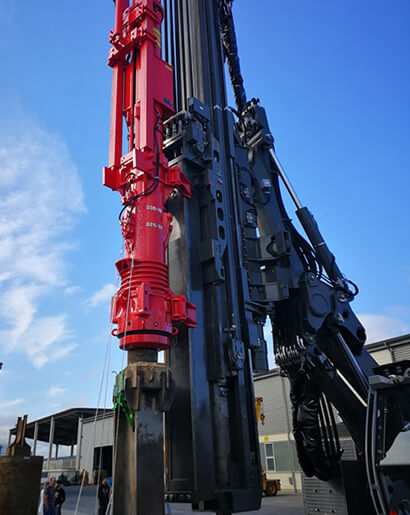

ABI Mobilram TM 17

ABI Mobilram TM 17

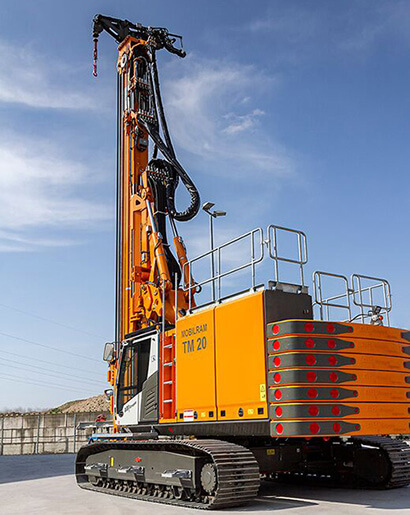

ABI Mobilram TM 20

ABI Mobilram TM 20

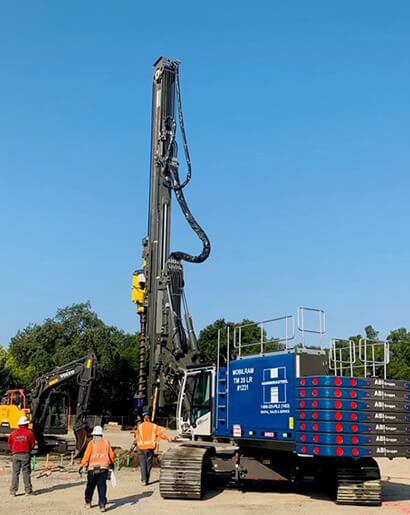

ABI Mobilram TM 20 LR

ABI Mobilram TM 20 LR

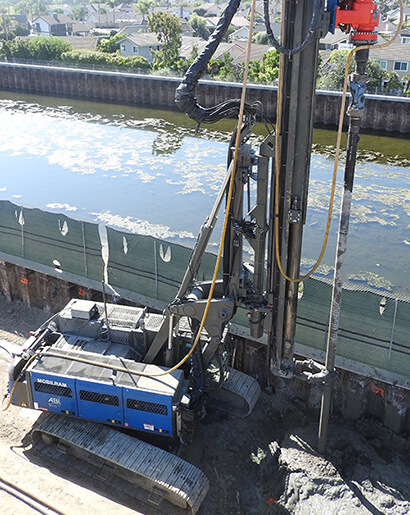

ABI Mobilram TM 22

ABI Mobilram TM 22

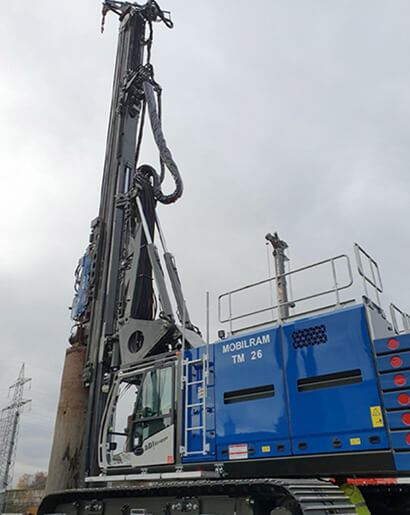

ABI Mobilram TM 26

ABI Mobilram TM 26

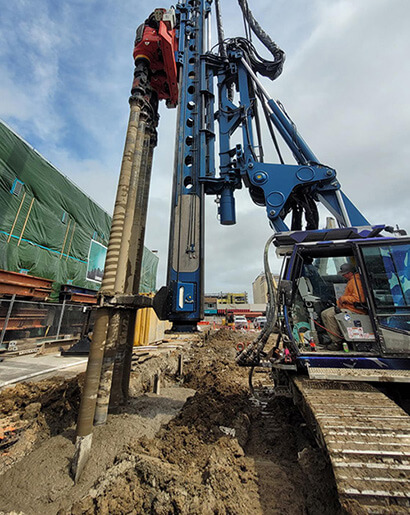

ABI Mobilram SM 18/22 HD

ABI Mobilram SM 18/22 HD

ABI Videos

The ABI Mobilram TM 13 is an easy to transport, compact machine. With an approximate operating weight of 95,900 lbs, and a transport weight of approximately 88,000 lbs, you're sure to get the job done quickly and efficiently.

View All Videos

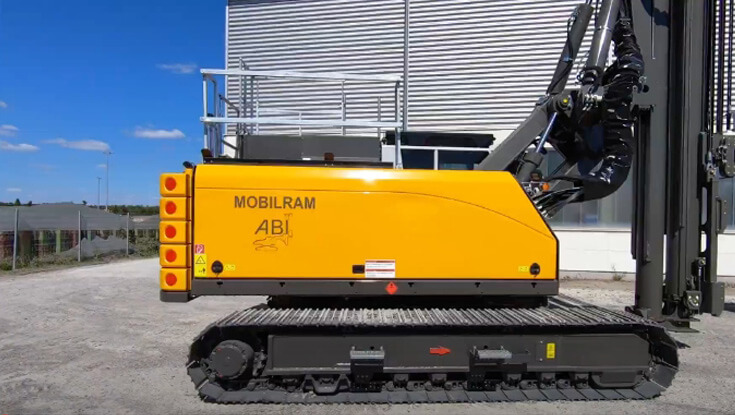

ABI Video Screenshot

Mobileram Attachments

The Mobilram is a highly versatile rig that can be outfitted with a number of different attachments to perform a wide variety of piling applications quickly and efficiently.

Vibratory Hammer

Vibratory Hammer

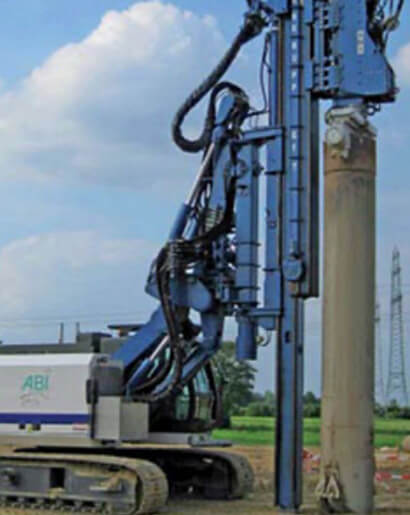

Dual Auger Casing Drive

Dual Auger Casing Drive

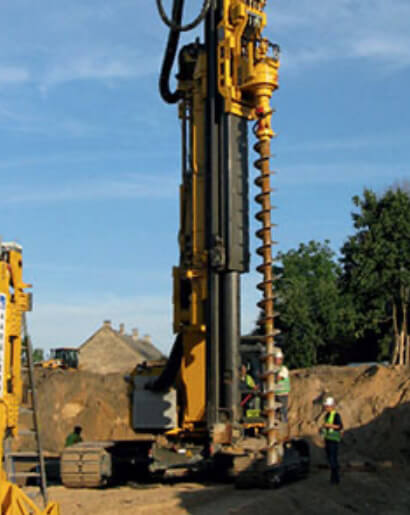

CFA Drill Head

CFA Drill Head

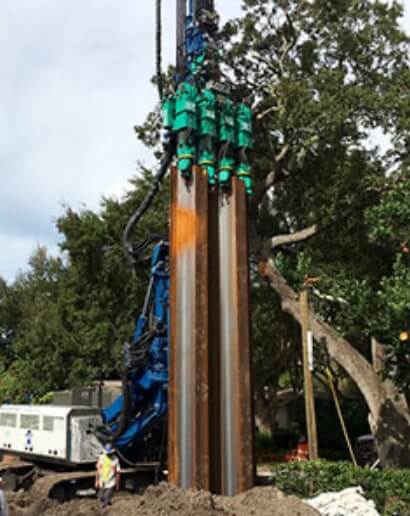

Z-Pile Pushers

Z-Pile Pushers

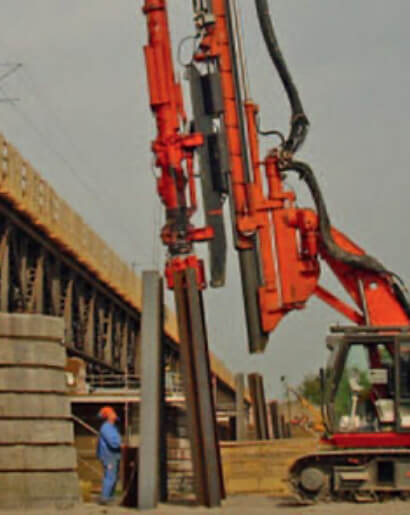

Diesel Hammers

Diesel Hammers

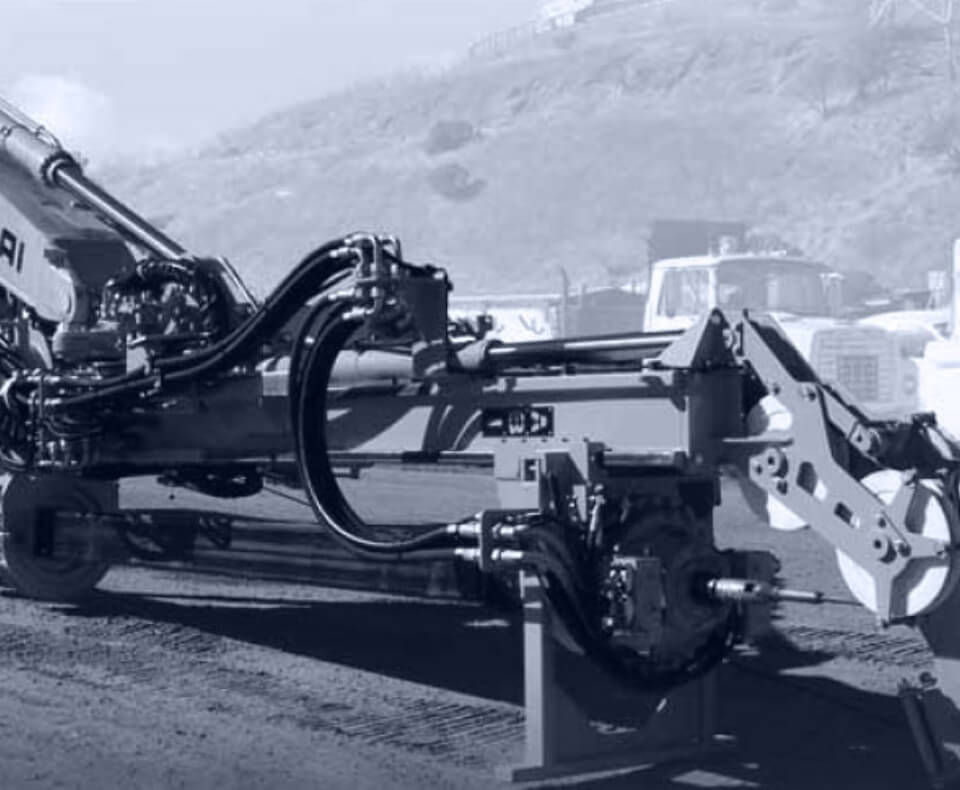

Grayscale Photo of ABI Mobilram

Mobilram vs Free Suspended Hammers

  • The ABI Rig requires less personnel which makes the job safer and easier to coordinate.
  • Set up time and demobilization takes one hour vs. 8 hours or more for a crane.
  • Moves with ease under obstacles in small confined spaces/job sites.
  • Pre-drilling ability allows for the installation of piles in ground that is unsuitable for vibration.
  • Different tools can be interchanged on site.
