MOVAX Side Grip

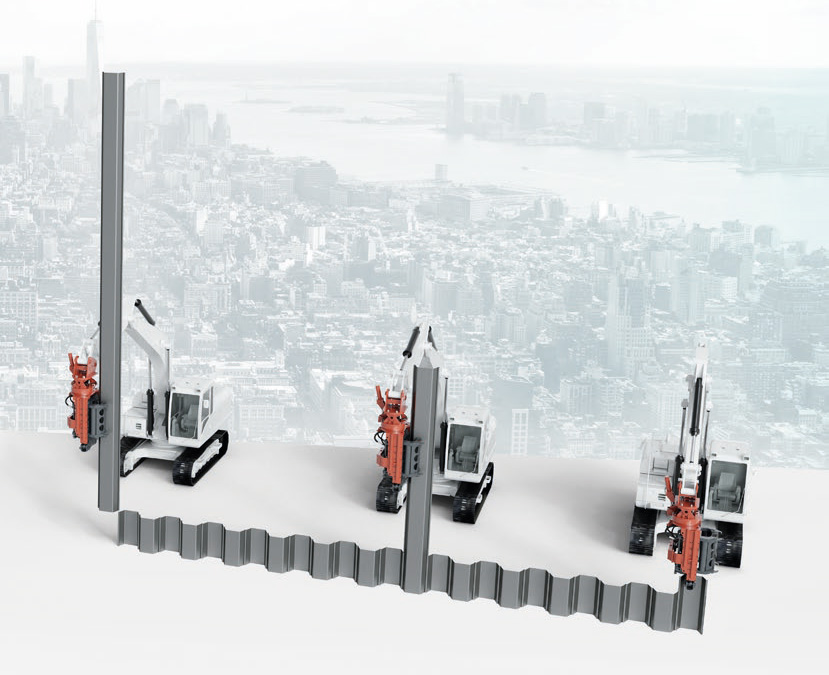

MOVAX Side grip pile drivers are excavator-mounted, high-frequency, vibratory-type pile drivers providing the optimum solution for a wide range of piling requirements – especially when a high degree of precision is required; and for piling in sensitive environments and when limited space, head room or access is available.
The same unit can handle, pitch and drive – and extract – different type of piles and is capable of accomplishing the entire piling process without the need of manual handling or assisting machinery. Furthermore there is no need for additional work, material and tools.
Model Technology
MOVAX side grip vibratory pile driver-models are available based on three different (vibro)technologies: variable eccentric moment (VA), resonance-free (V) and with fixed eccentric moment (STD/LITE). MOVAX side grip vibratory pile drivers are available with variable active moment, resonance-free start/stop (V) and with fixed eccentric moment.

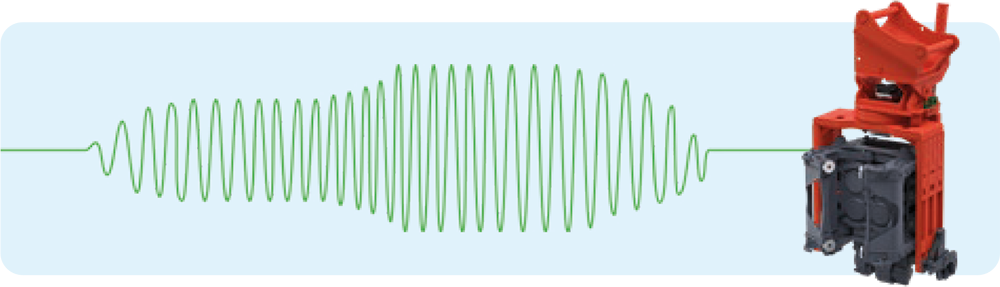

Variable Active (VA)
VA models are selected for the most demanding applications and for sensitive areas where disturbances to the surroundings are to be minimized.
Resonance-free (V)
V models are selected for sensitive areas where disturbances to the surroundings are to be minimized.

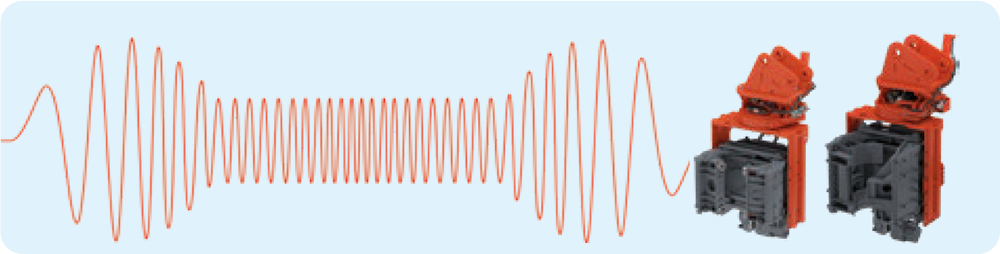

Fixed Eccentric (LITE & STD)
LITE and STD models are selected for a wide range of piling jobs.
Features ofSide Grip Vibratory Pile Drivers
Excavator-Mounted
- Suitable for 7-50 ton excavators.
- Utilizes the hydraulic power and lifting capacity of the excavator or rail roader (carrier).
- Designed to work on any and all wheeled and crawler-type excavators and rail roaders by utilizing and commanding the standard auxiliary hydraulics and/or by connecting to the electronic control of the excavator.
Comprehensive Model & Size Range
- Available in different models, sizes and configurations for different piling requirements and different type of piles ranging sheet piles, trench sheets and, H-beams to tubular steel piles and timber piles.
- Available for excavators ranging from 7 to 50 ton - thus always ensuring the optimum size and correct combination of vibratory pile driver and excavator.
High Frequency
- High frequency HF (2300-3000 rpm / 38-50 Hz) vibratory pile driver.
- Specifically designed to be used with an excavator or rail roader as carrier.
State-of-the-Art Vibration Technology
- Variable eccentric moment (VA-models) for optimum performance under all site and soil conditions. VA -models are also resonance-free under all operating conditions.
- Available also with fixed eccentric moment (STD/LITE).
MOVAX Modular System™
- Versatility based on the MOVAX Modular System™ which enables the use of the same unit for a wide range of different piling requirements, piling work and type of piles.
- Optional handling clamps available for U- & Z-piles.
MOVAX Control System
- MOVAX Control System, mControl+
- mControl+ LITE
- mControl+ PRO with automatic tip-control for maximized productivity and quality.
- Advanced, real-time monitoring of
- Clamping pressure (electronically monitored, actual pressure of all individual cylinders)
- Gear oil pressure
- Gear oil temperature
Movax Information Management Systems
- mFleetManagement for monitoring MOVAX piling equipment operation, performance and condition.
- mLogbook for monitoring and reporting the piling works.
Designed for Versatility
Modular Arms are designed for versatility and to handle, pitch, drive and extract sheet piles, tube piles, or timber piles.
Handling, pitching, driving & extracting tube piles.
Handling, pitching, driving & extracting sheet piles.
Handling, pitching, driving & extracting small OD tube piles.
Handling, pitching, driving & extracting timber piles.
