High Efficiency Z Sheet Pile - PZC

Hammer & Steel High Efficiency Z Sheet Piling Equipment

Manufactured by Gerdau Ameristeel, PZC sheet piling sections utilize a design that is wider, lighter and stronger than traditional Z-profile sheet piling.  Given these characteristics, PZC sheet piling yields both lower material costs and fewer piles that need to be installed making it significantly more cost-effective.

The PZC design still features the popular ball-and-socket interlock while providing greater degrees of swing and flexibility than alternative Z-profile sheet piling sections.  This makes it easier to set, drive, and establish precise wall layouts.  PZC sheet piling is commonly used in marine, foundation, transportation and environmental applications.​



Specifications

PZC 13

PZC 13

PZC 13

PZC 13

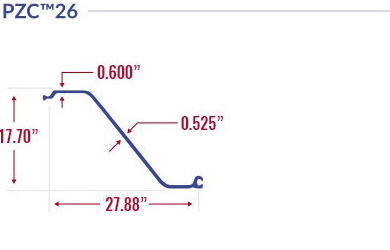

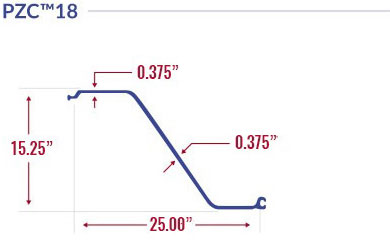

Per Single Section PZC™ 12 PZC™ 13 PZC™ 14 PZC™ 17 PZC™ 18 PZC™ 19 PZC™ 26
Nominal Width (in.) 27.88 27.88 27.88 25.00 25.00 25.00 27.88
Wall Depth - Height (in.) 12.52 12.56 12.60 15.21 15.25 15.30 17.70
Web Thickness (in.) 0.335 0.375 0.420 0.335 0.375 0.420 0.525
Flange Thickness (in.) 0.335 0.375 0.420 0.335 0.375 0.420 0.600
Area (in.2) 13.64 14.82 16.15 13.64 14.82 16.16 21.72
Weight Per Foot (lbs/ft) 46.4 50.4 55.0 46.4 50.4 55.0 73.9
Moment of Inertia (in.4) 326.6 353.0 381.6 492.9 532.2 576.3 994.3
Section Modulus (in.3) 52.0 56.2 60.5 64.5 69.8 75.3 112.4
Total Surface Area (ft2/ft) 6.09 6.09 6.09 6.09 6.09 6.09 6.65
Nominal Coating Area (ft2/ft) 5.60 5.60 5.60 5.60 5.60 5.60 6.15
Per Foot of Wall PZC™ 12 PZC™ 13 PZC™ 14 PZC™ 17 PZC™ 18 PZC™ 19 PZC™ 26
Area (in2/ft) 5.87 6.38 6.95 6.55 7.12 7.76 9.35
Weight Per Foot (lbs/ft2) 20.0 21.7 23.7 22.3 24.2 26.4 31.8
Moment of Inertia (in4/ft) 140.6 152.0 164.3 236.6 255.5 276.6 428.1
Section Modulus (in3/ft) 22.4 24.2 26.0 31.0 33.5 36.1 48.4

*All Dimensions Are Nominal
