Comacchio MC 4D Drilling Rigs

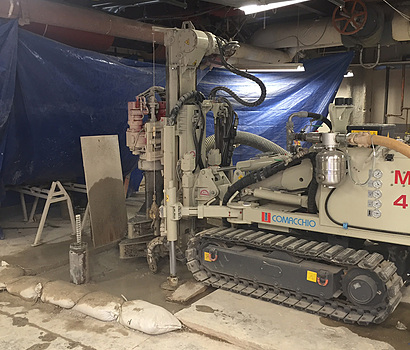

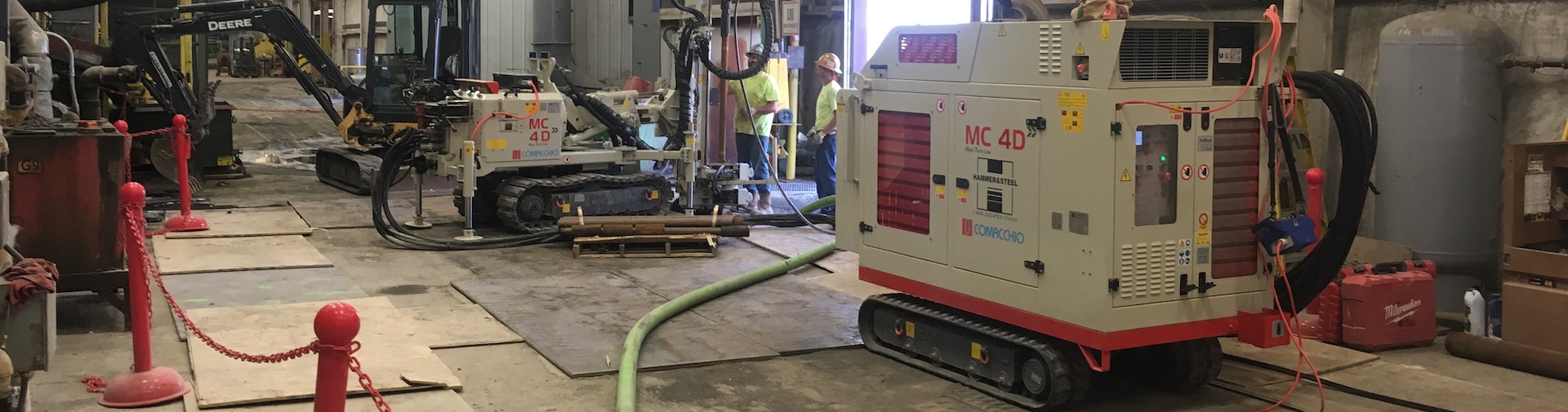

The MC 4 D is a hydraulic drilling rig with separate power pack, specifically designed for the execution of ground engineering works in confined or low overhead spaces and difficult access jobsites, inside buildings, basements and small tunnels. This is possible due to the rig’s wide range of allowable movements in addition to the telescopic mast adjustment, which is available as an option. Depending on the job site requirements, this machine can be supplied with a soundproof diesel power pack or with electric power pack. Thanks to the use of advanced modular hydraulic circuits, the MC 4D can accommodate a wide range of accessories and is suitable for any type of rotary or rotary-percussive drilling. The machine can be equipped with hydraulic proportional servo-assisted controls or with the innovative Comacchio radio control system. Like all Comacchio machines, the MC 4D can be customized according to specific needs.

Specifications
Engine Power 55 - 100 kW (74 - 134 HP)
Max Width 2.8 - 3.8 ft
Weight 10,100-11,500+4,400-6,100 lbs
Mast Feed 3 - 7 ft
Feed Force 7,868 lbs
Retract Force 7,868 lbs
Rotary Torque 3,319 - 11,432 lb*ft
Rotary Speed Range 65 - 380 rpm
Clamp Range 1.8 - 12.8 in

Comacchio MC 4D Drill Rigs, Comacchio MC 4D Drill Rig, Comacchio MC 4D Drilling Rigs

Comacchio MC 4D Drilling Rig

Download Brochure

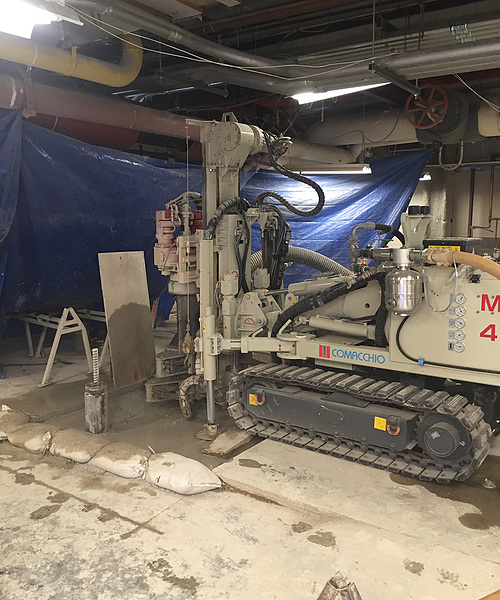

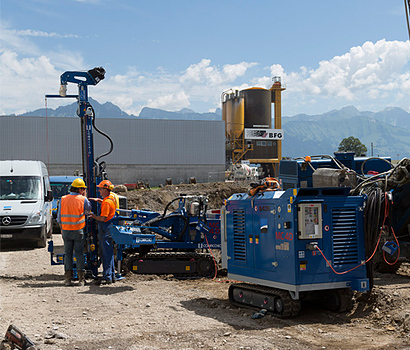

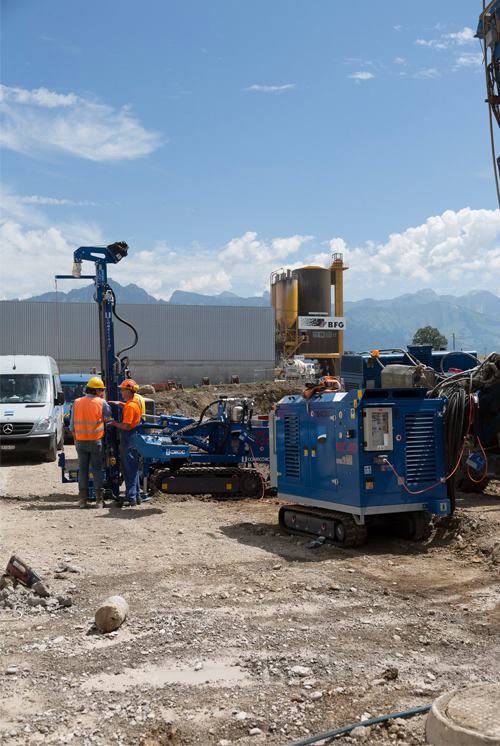

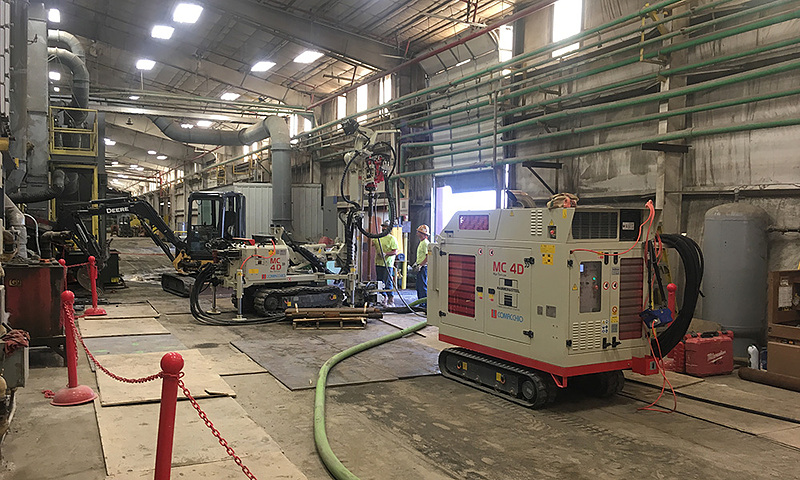

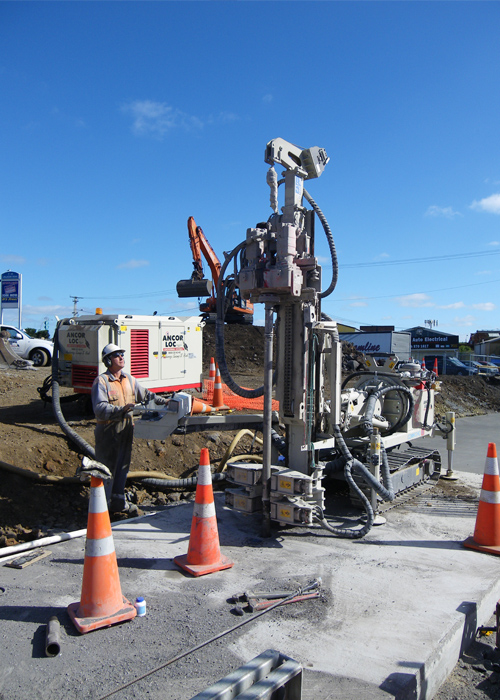

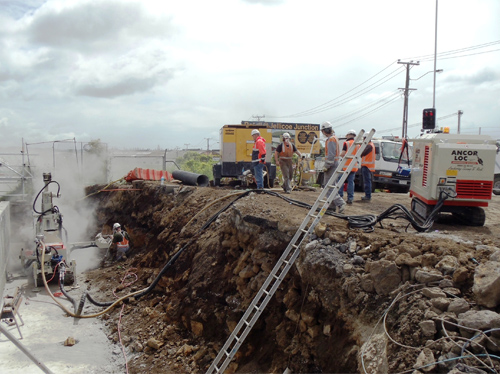

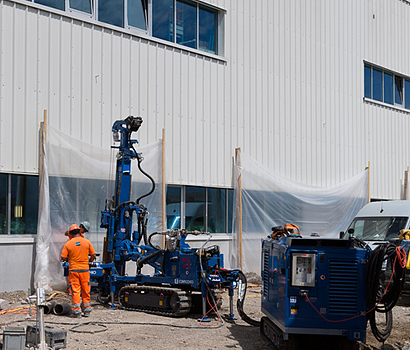

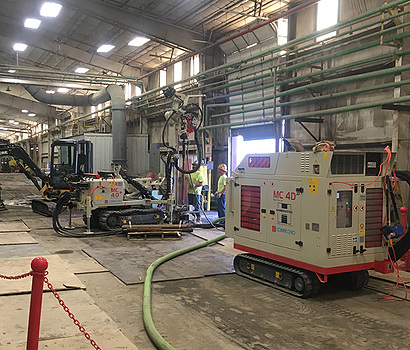

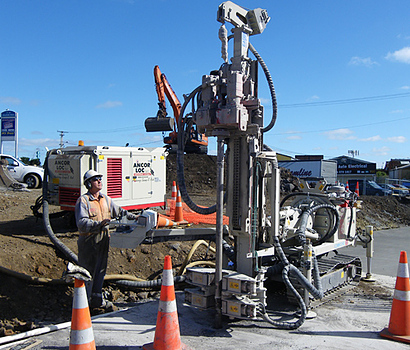

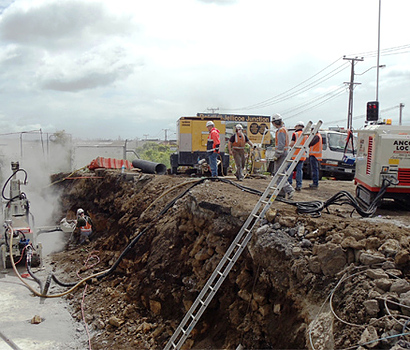

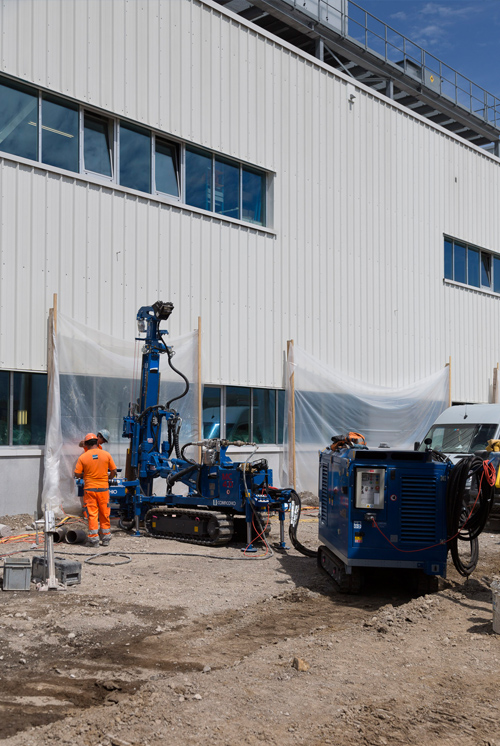

Photo Gallery
