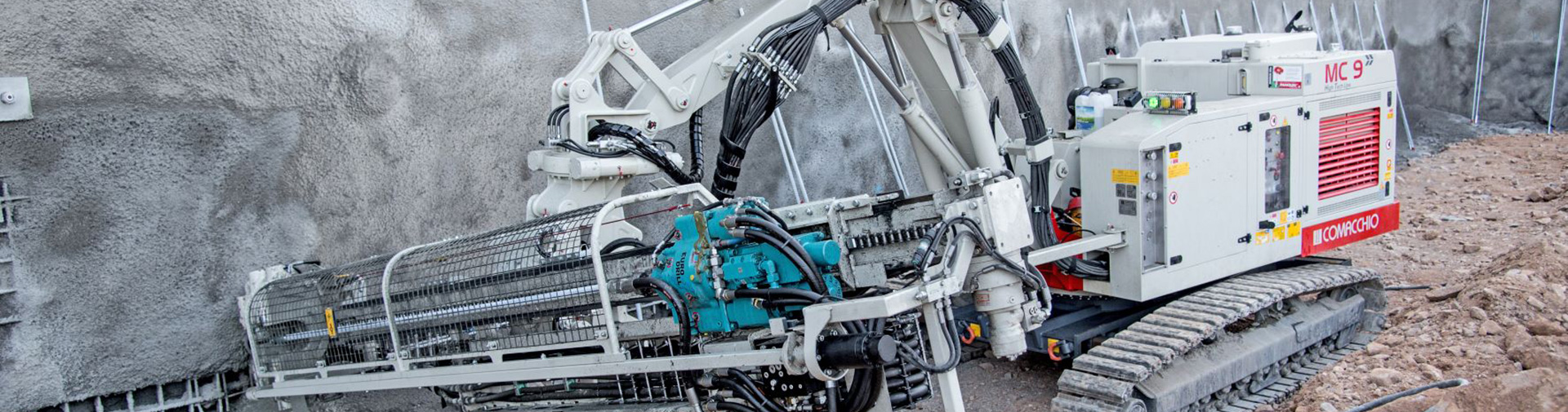

Comacchio MC 9 Drilling Rig
The MC 9 is an extremely versatile and powerful small/medium size hydraulic drilling rig, especially designed for civil engineering works such as anchors and consolidations by means of self-drilling bars as well as any type of rotary and rotary-percussive drilling. The patented mast articulation abilities, compact size and large variety of movements and inclinations make the MC 9 suitable to be used even in very small spaces with the need for special mast placement. The machine can be equipped with the innovative Comacchio radio control system. Like all Comacchio rigs, the MC 9 can be customized according to specific needs.
| Specifications | ||
|---|---|---|
| Engine Power | 97 - 100 kW (130 - 134 HP) | 5.9 - 8.5 ft |
| Max Width | 1.800 - 2.600 mm | 20,000 - 22.000 lbs |
| Weight | 9.500 - 10.000 kg | 11.1 ft |
| Mast Feed | 3.400 mm | |
| Feed Force | 2.500 daN | 5,620 lbs |
| Retract Force | 2.500 daN | 5,620 lbs |
| Rotary Torque | 88 - 1.100 daNm | 649 - 8,113 lb*ft |
| Rotary Speed Range | 43 - 360 rpm | |
| Clamp Range | 32 - 170 mm | 1.2 - 6.7 in |

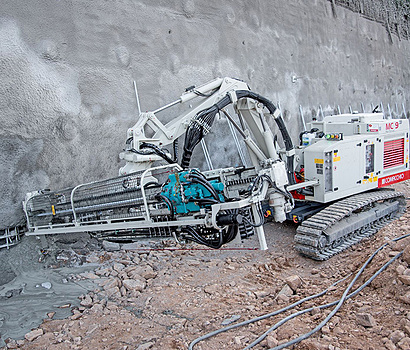

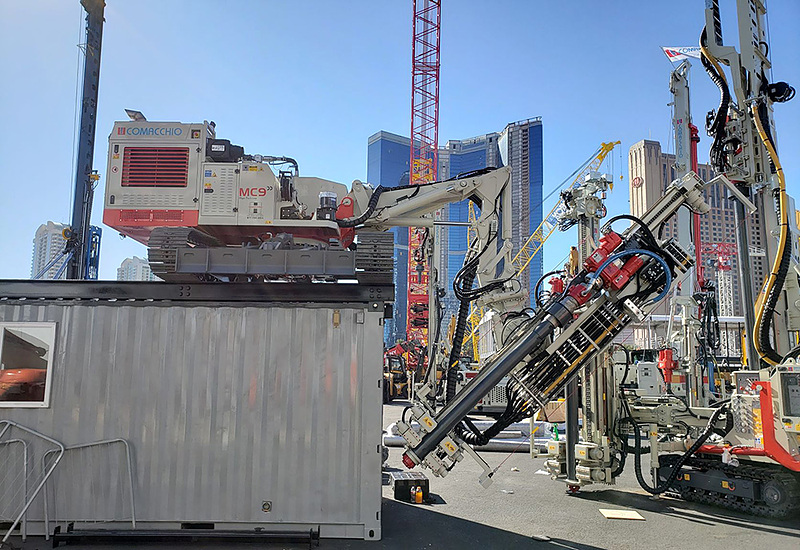

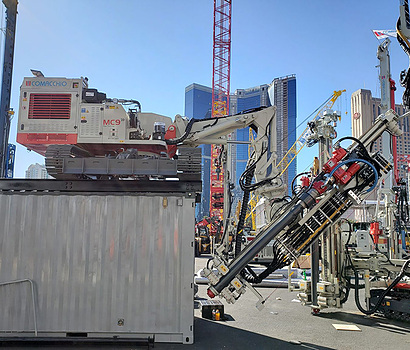

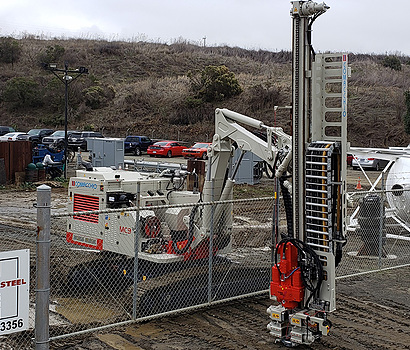

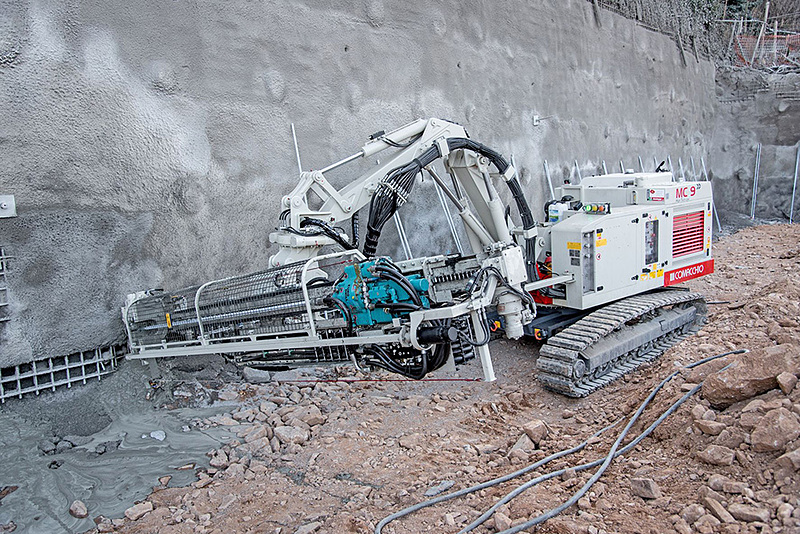

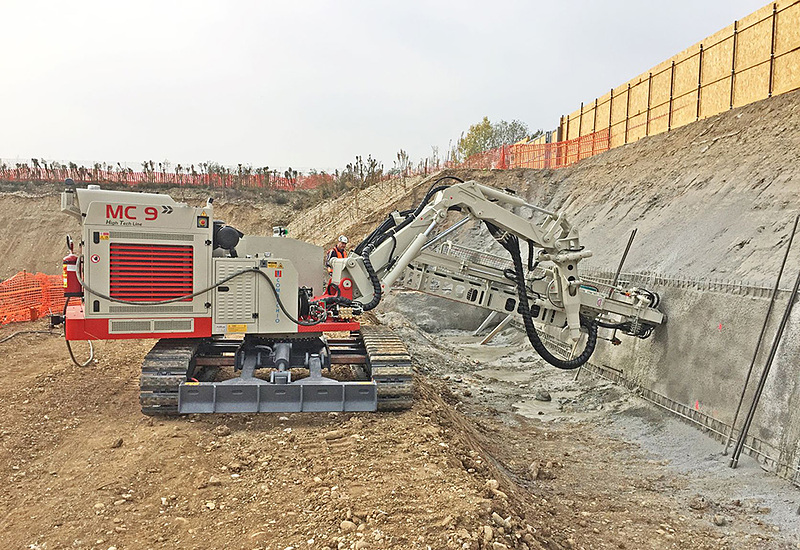

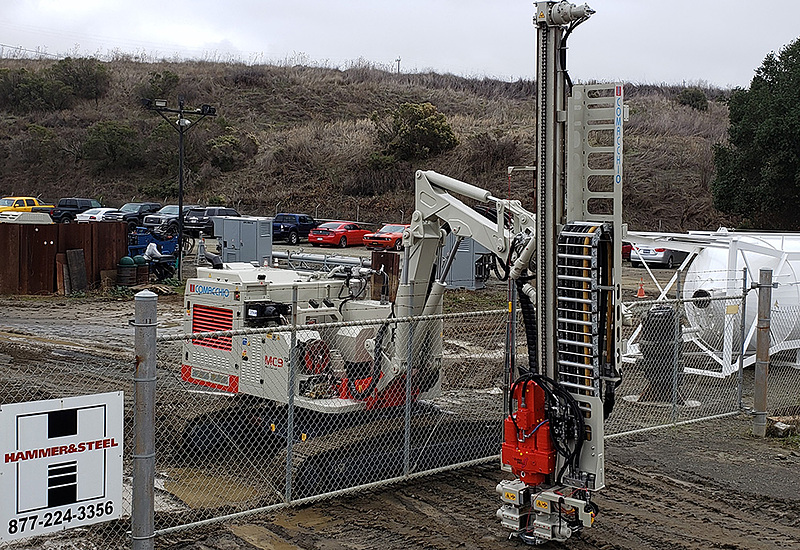

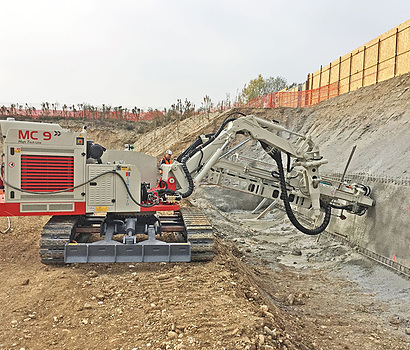

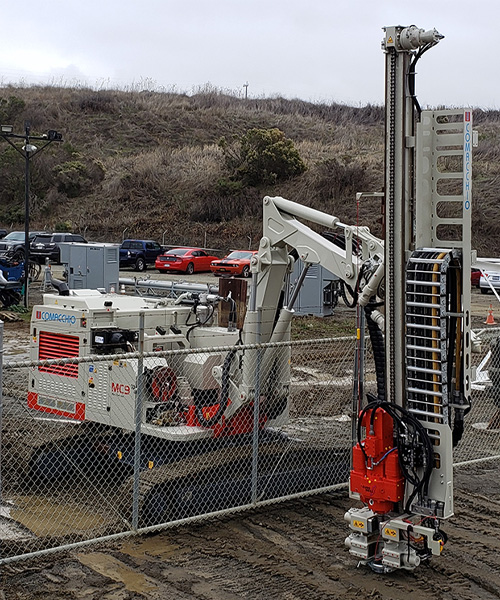

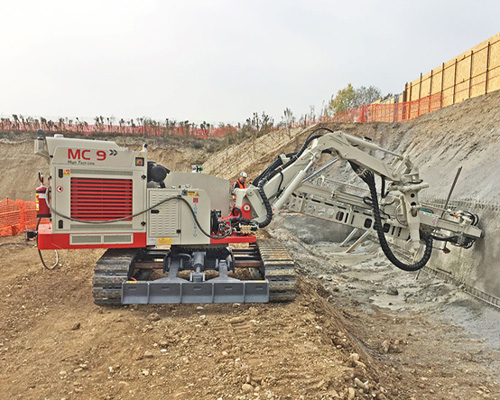

Photo Gallery
