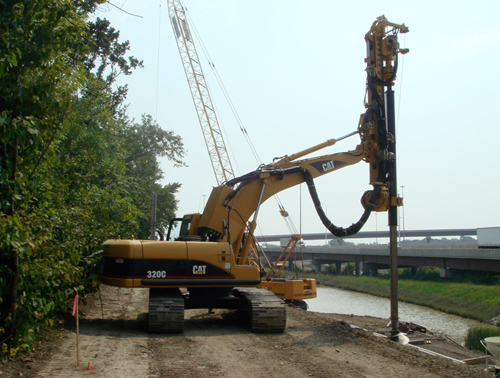

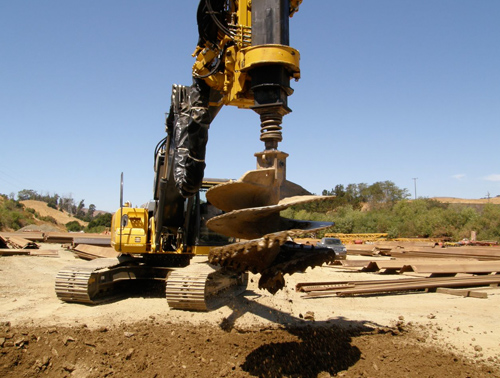

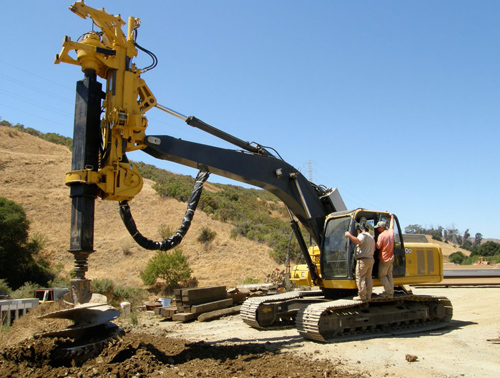

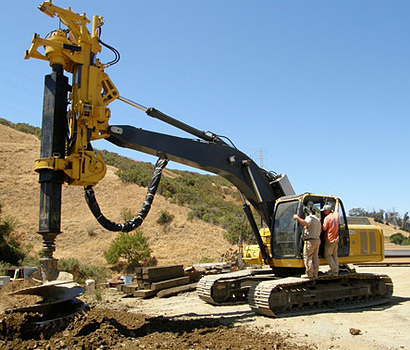

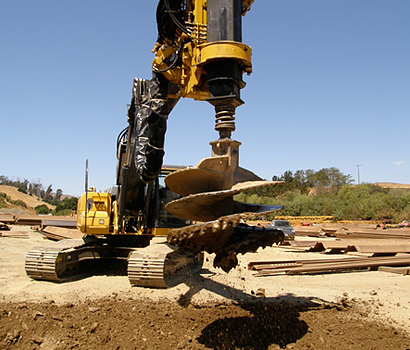

ABI GeoDrill Excavator Mounted Drilling Attachment
The GeoDrill™ drilling attachment is the newest, high-tech design by ABI - Germany. This versatile drilling tool is a perfect match for many job sites including those with limited access, low-headroom conditions, and long-or high-reach requirements. The ABI design features rugged components for extremely reliable operation.
Features
- Patented design by ABI - Germany.
- Typical drilling diameters of 18" to 60". Larger diameter holes can be drilled in certain conditions. Drilling depths of up to 60'.
- Streamlined installation on new and used excavator carriers from the 15-ton to 30-ton class.
- All Kelly Bar sets manufactured from high strength steel. Available in both Square Friction and Round Locking styles.
- Unlike truck-mounted units, the GeoDrill attachment and excavator carrier provide ultra-fast mobilization, extended reach and access to difficult drilling sites.
- Operator-friendly controls include two custom joysticks for all drilling functions. Reliable, illuminated touch screen display for level/depth control and troubleshooting.
- Rotary torque is supplied through the use of one ultra-high displacement, direct-drive hydraulic motor. Reliability and efficiency are greatly improved versus typical hydraulic motor and planetary designs.
- Universal drilling mast can be fitted with all rotary drive sizes, and can be ordered in standard and low-headroom configurations.
- Unique open design allows for better visual inspection of the Kelly Bars during drilling and easier routine maintenance.
- The powerful and fast Kelly winch is mounted low for better C.G. and improved cable fleet angle. UHMW nylon sheaves reduce cable wear.
- Grade angle correction up to 10 degrees left/right, 30 degrees fore/aft.
- Kelly winch: 16,860 lb. line pull, 203 feet per minute. Optional auxiliary winch: 4,496 lb. line pull, 164 feet per minute.
- Crowd cylinder force: 15,736 lb. Extraction cylinder force: 38,216 lb.
| Standard Mast | MDBA 4000 | MDBA 7000 |
|---|---|---|
| Rotary Torque (ft - lbs) | 29,000 | 51,000 |
| Drill Speed Range (rpm) | 27-54 | 22-44 |
| Spin-off Speed (rpm) | 100 | 85 |
| Hole Diameter (inch) | 48 | 60 |
| Hole Depth (ft) | 30-50 | 30-60 |
| Attachment Height (ft) | 24 1/2' | 24 1/2' |
| Attachment Weight (lbs) | 10,000 | 10,500 |
| Kelly Winch (lbs) | 18,000 | 18,000 |
| Typical Excavator Class (tons) | 20 | 30 |
| Short Mast | MDBA 4000 | MDBA 7000 |
| Rotary Torque (ft - lbs) | 29,000 | 51,000 |
| Drill Speed Range (rpm) | 27-54 | 22-44 |
| Spin-off Speed (rpm) | 100 | 85 |
| Hole Diameter (inch) | 48 | 60 |
| Hole Depth (ft) | 30-50 | 30-60 |
| Attachment Height (ft) | 14 1/2' | 14 1/2' |
| Attachment Weight (lbs) | 8,500 | 9,000 |
| Kelly Winch (lbs) | 18,000 | 18,000 |
| Typical Excavator Class (tons) | 20 | 30 |

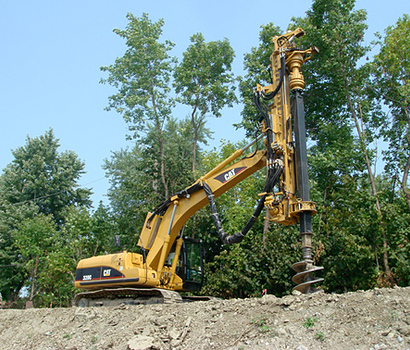

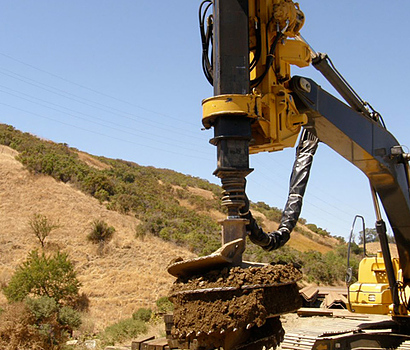

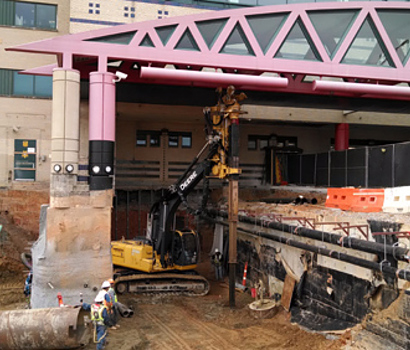

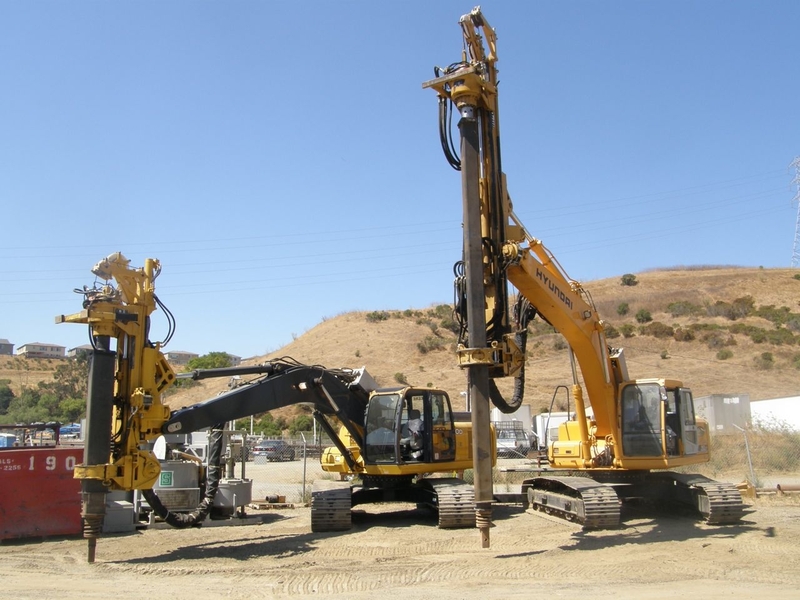

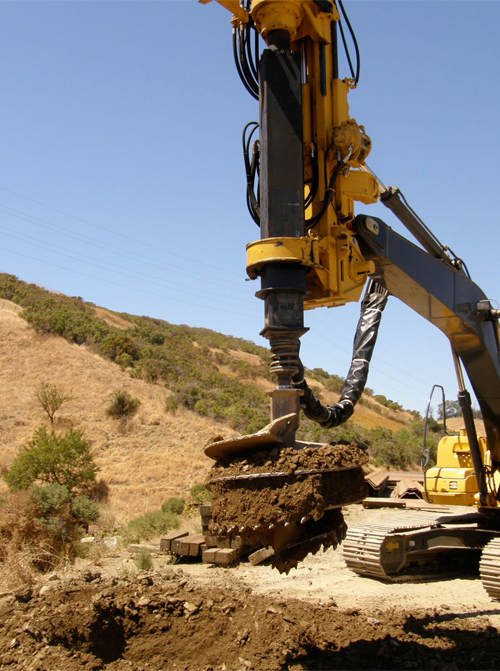

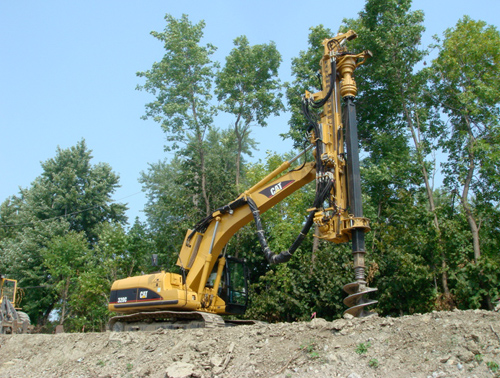

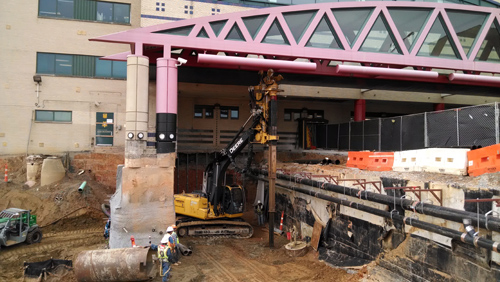

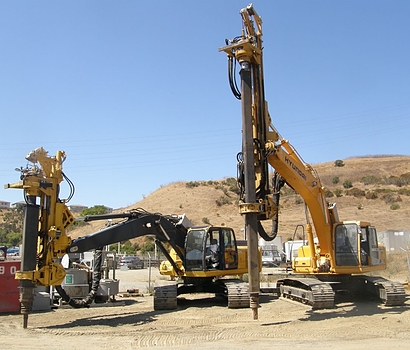

Photo Gallery
