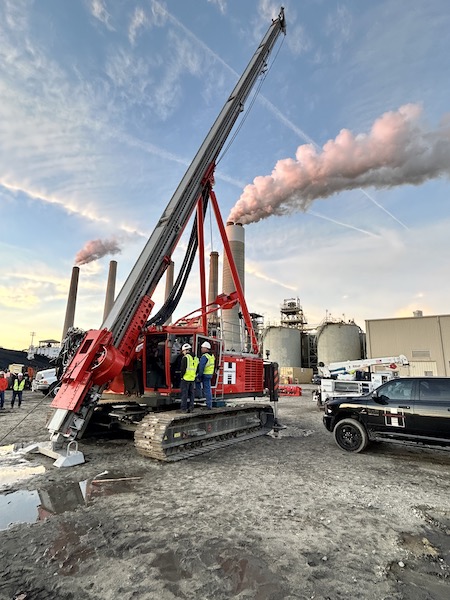

The VDH-MP70 is a flexible dedicated piling rig for impacting concrete, pipe, and steel piles, as well as drilling, compacting, and vibration.

This versatile machine uses a rack and pinion system for traveling the hammer sled along the mast. The big advantage of this is that winches are no longer needed and the leader can be easily shortened to the user’s desired length. This makes it an ideal solution for projects in urban areas, inside buildings or under sensitive overhead restrictions such as power lines or under bridges.

The robust hammer can be equipped with either a 5, 7 or 9 ton ram, further adding to the rig’s flexibility to deliver the right energy to the pile.

Technical Specifications
Standard leader length 25 m
Maximum leader length 29 m
Horizontal slide stroke 1,200 mm
Leader stroke 3,000 mm
Operating weight without tool 89 tonnes
Transport weight without counter weight 79 tonnes
Diesel engine CAT C18 (Stage V)
Power diesel engine 563 kW (765 hp)
Fuel tank 1,500 l
Total counter weight 10,000 kg
Transport width 3,400 mm
Working width 4,900 mm
Undercarriage length 5,520 mm
Standard track shoe width 900 mm

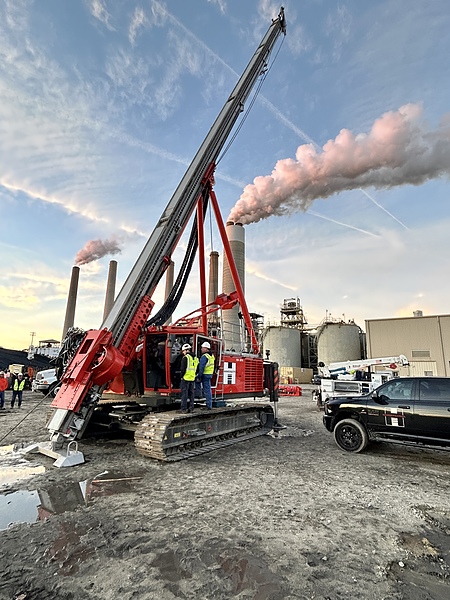

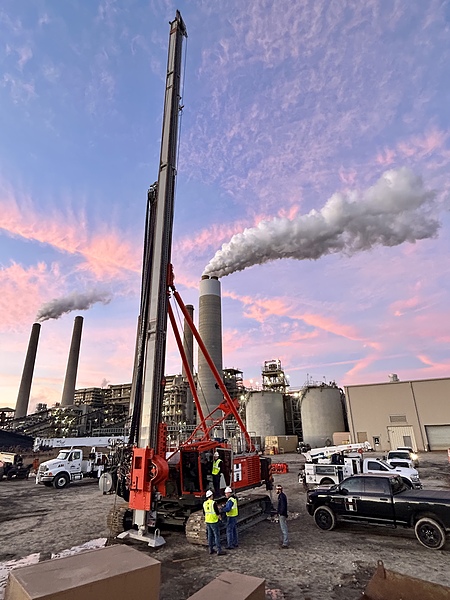

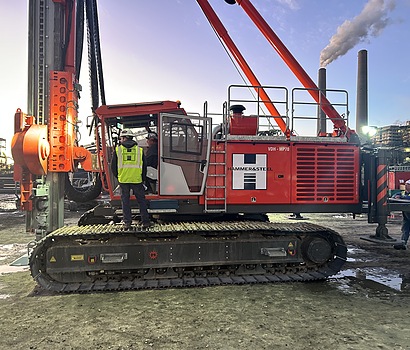

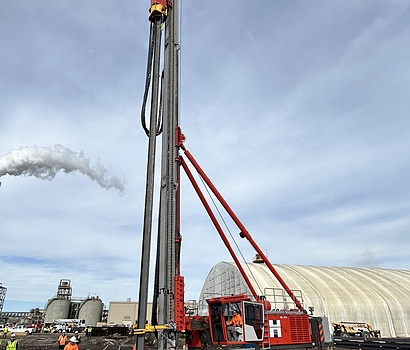

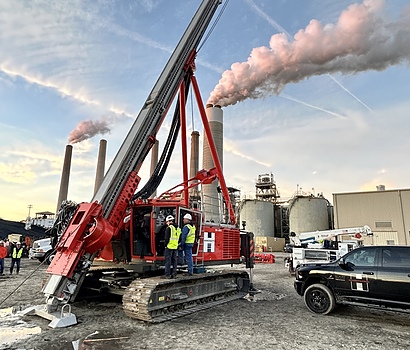

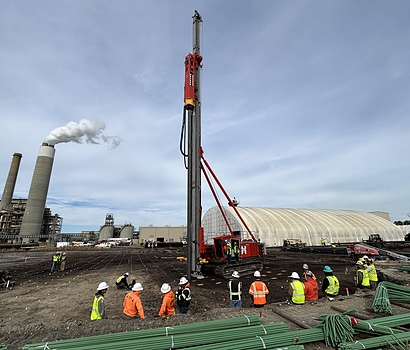

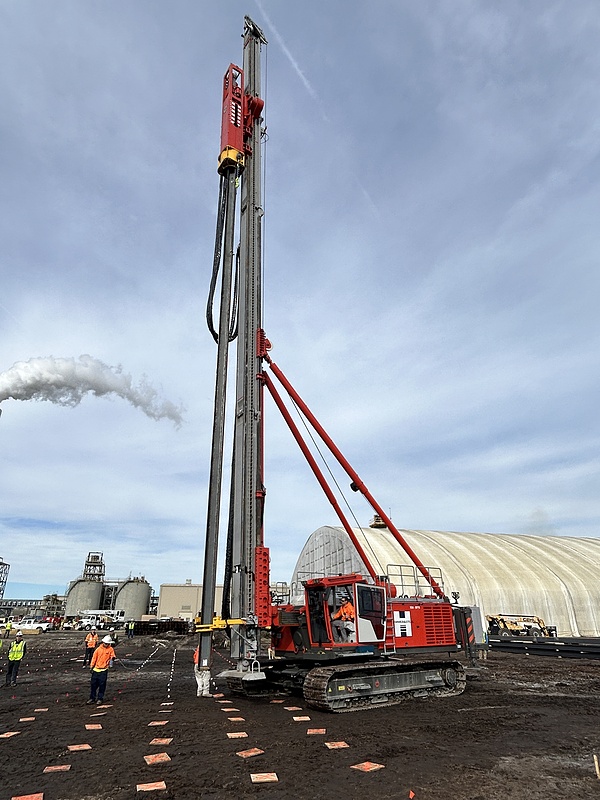

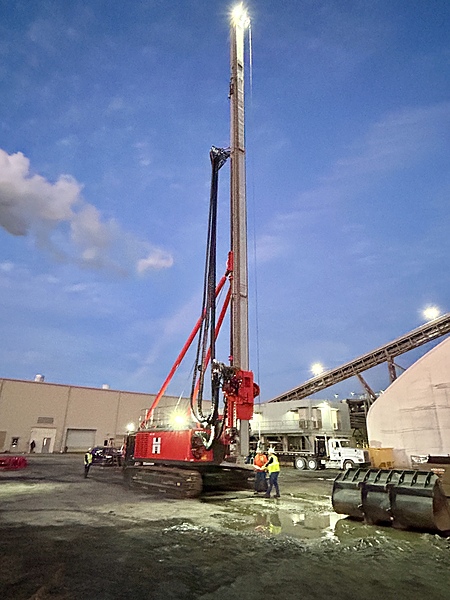

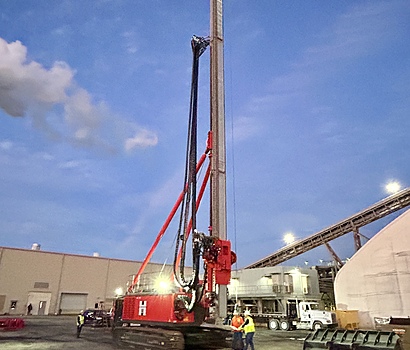

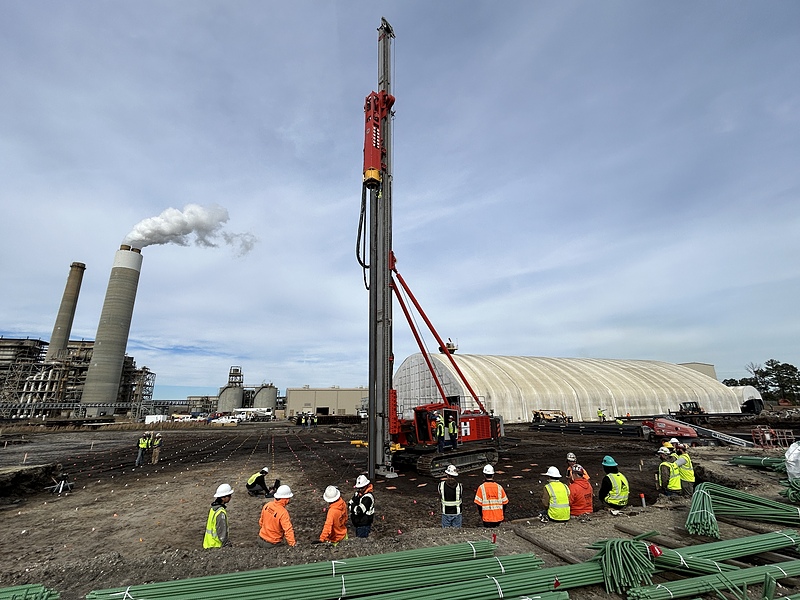

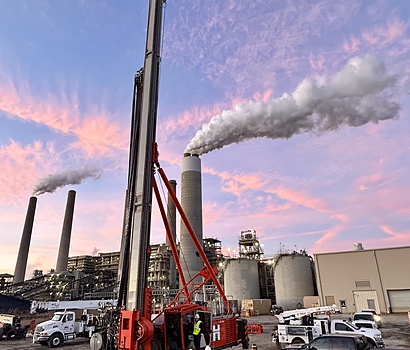

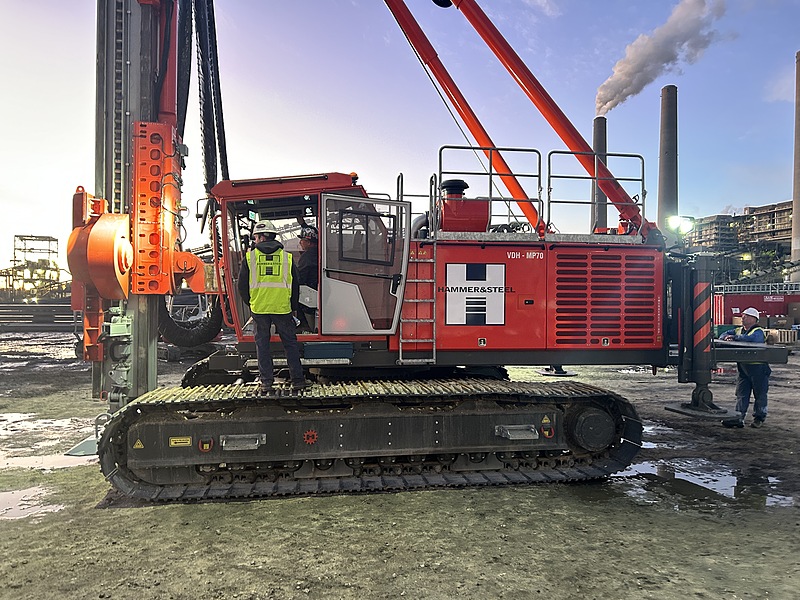

Photo Gallery
