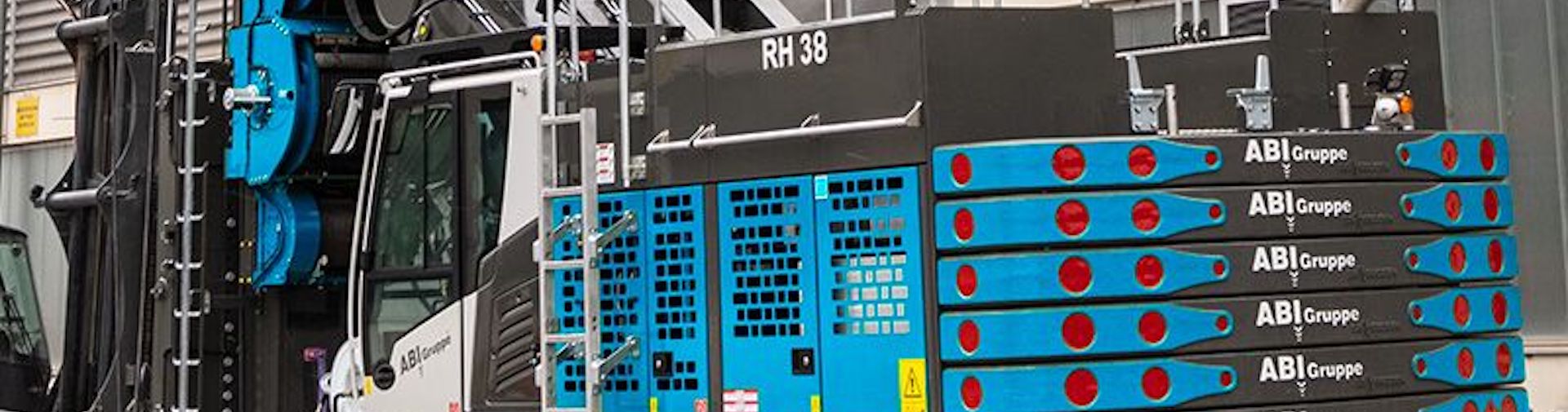

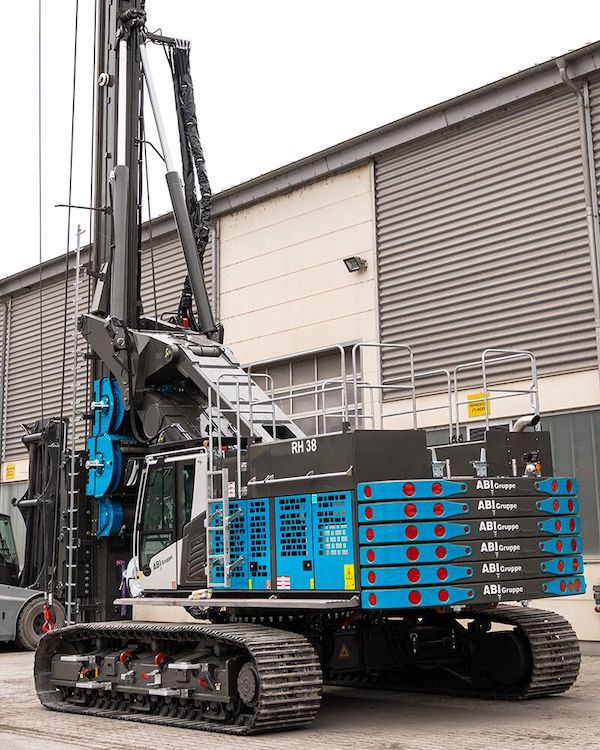

Delmag RH 38 Drill Rig

The Delmag RH 38 drill rig is a premier drilling machine built on an ABI T100 carrier. In addition to common drilling methods such as Kelly drilling, CFA drilling, partial and full displacement, double-rotary drilling and soil mixing, the machine can also be equipped with a Delmag diesel hammer for difficult impact needs.

Rig Model RH 34
Rig Features
Rotary model BT 380
Torque at 4780 psi 276,580 ft. lbs.
Engine CAT C13B, 536 h.p.
Operating weight 120.3 tns
Transport weight 84 tns
Max kelly drill depth 144' w/3.28' tool
