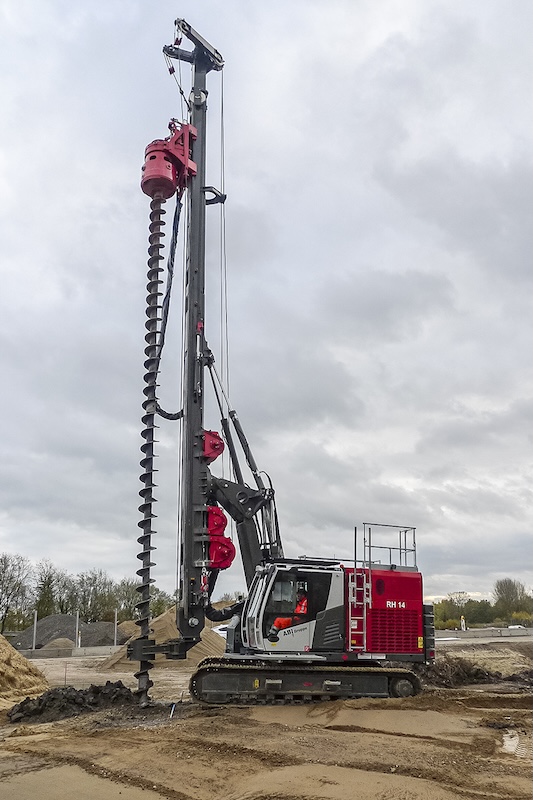

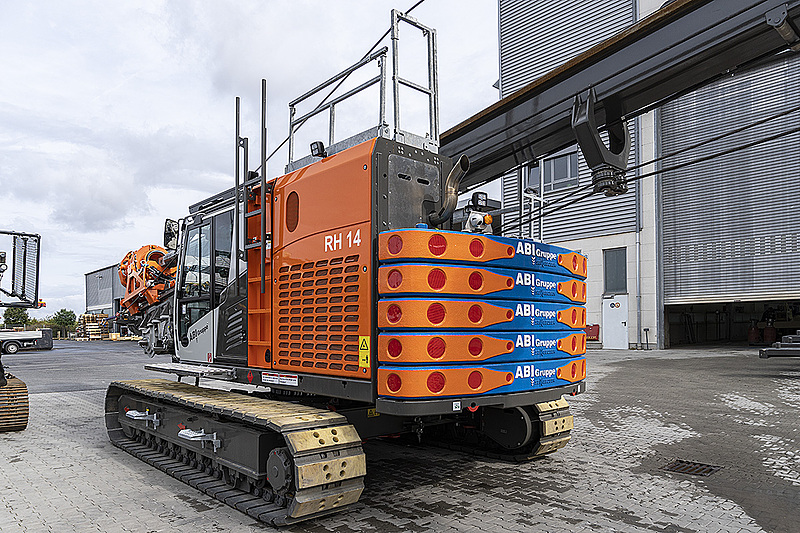

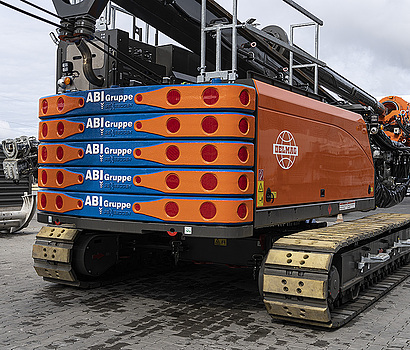

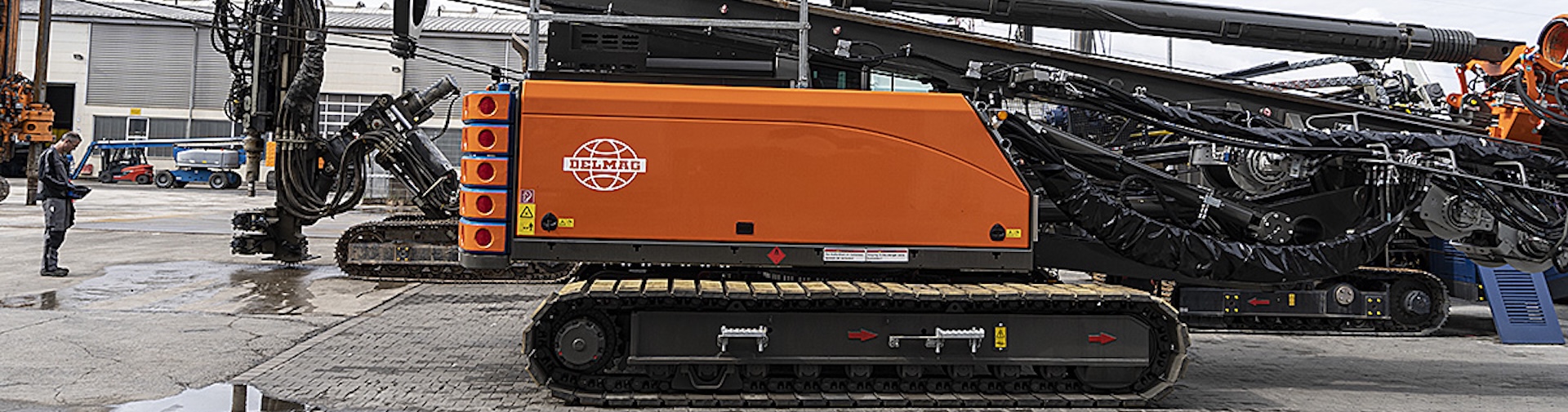

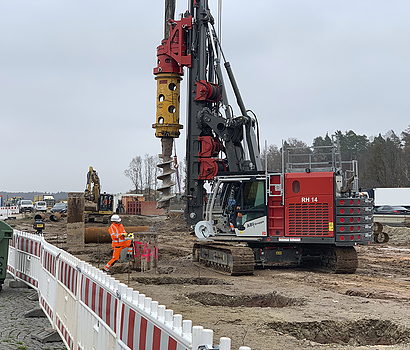

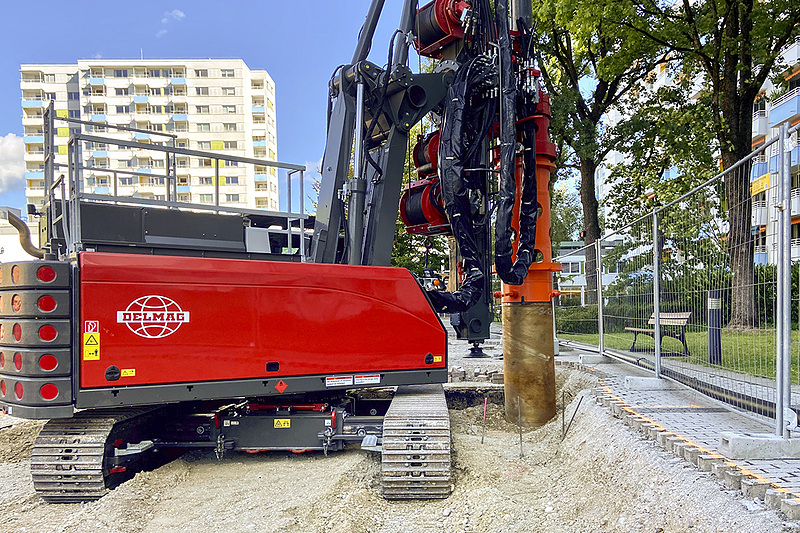

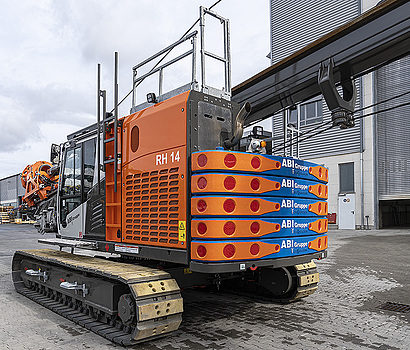

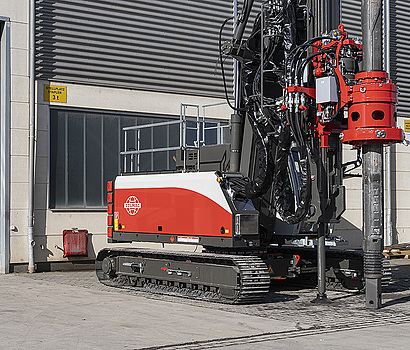

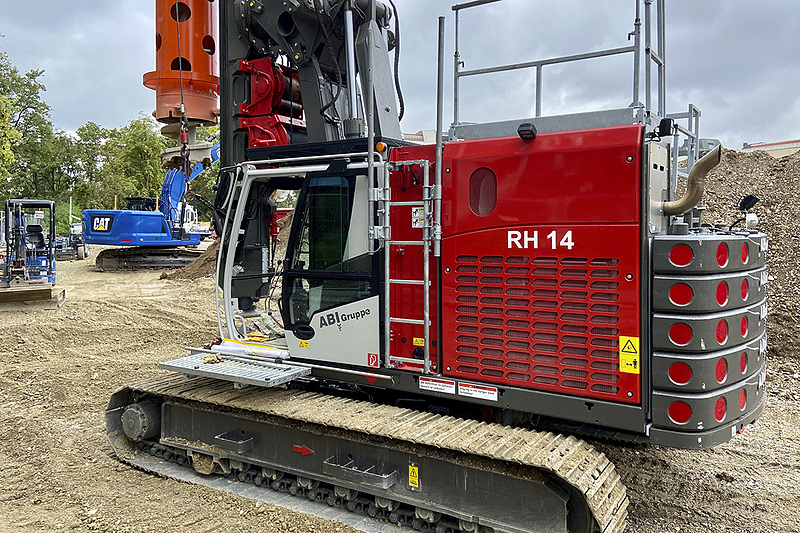

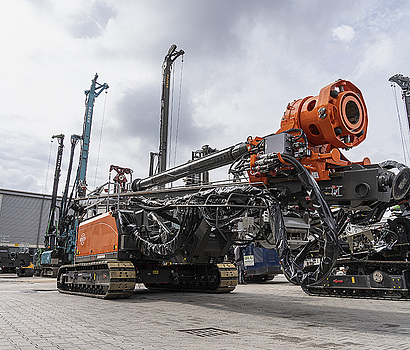

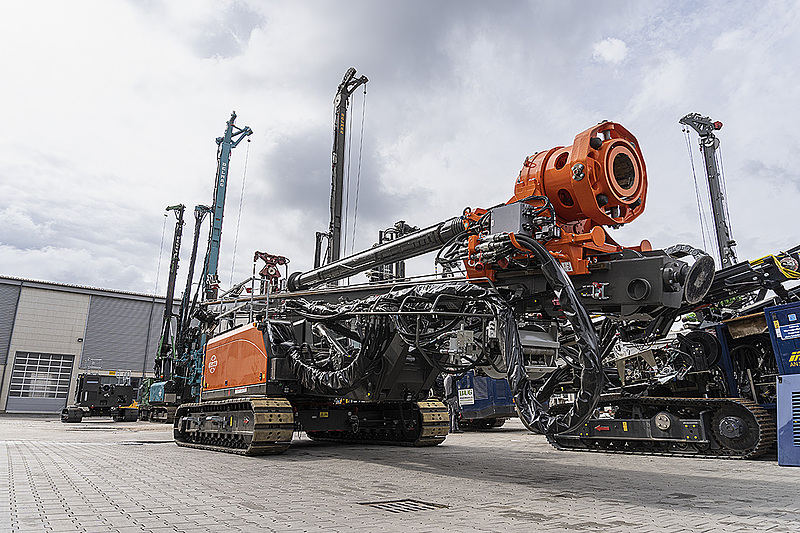

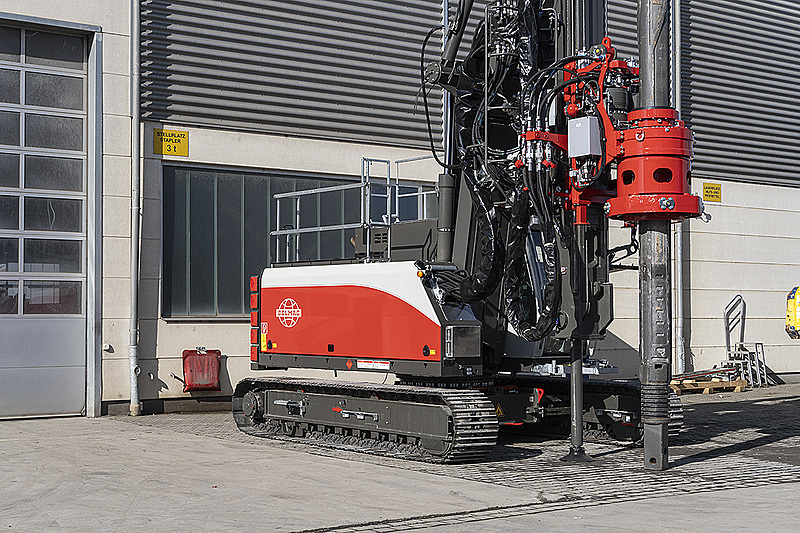

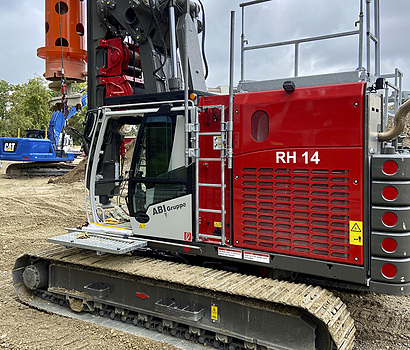

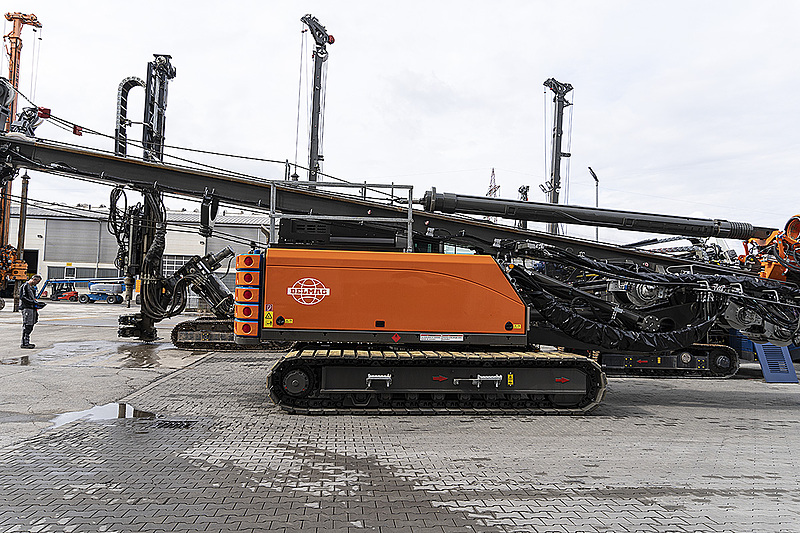

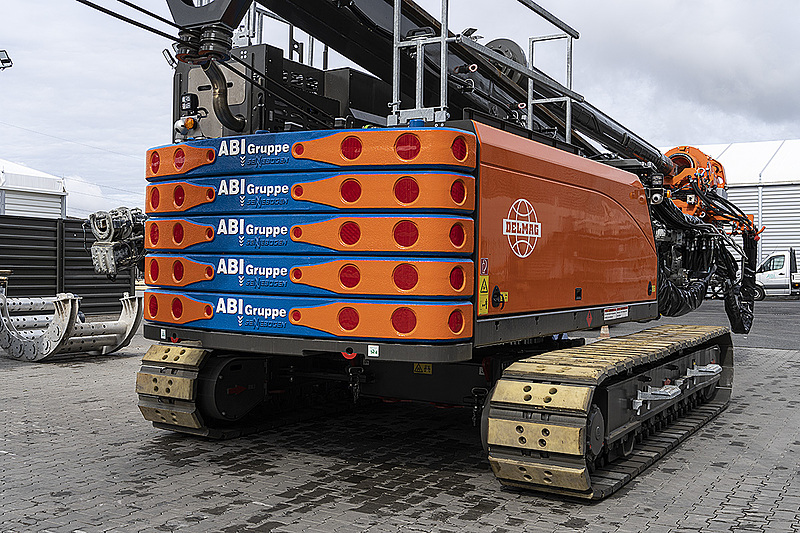

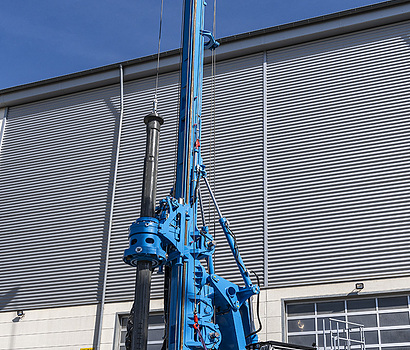

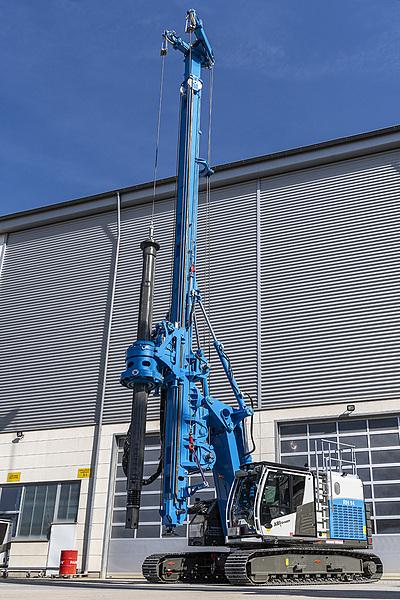

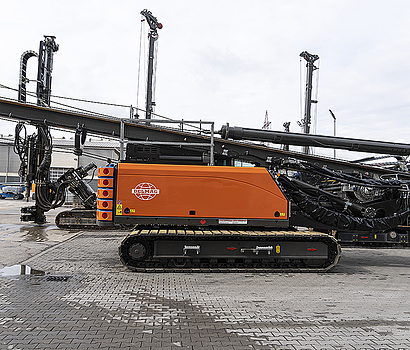

Delmag RH 14 Drill Rig
The DELMAG RH 14 delivers high torque, deep drilling capability, and reliable German engineering for contractors who need a mid-size rig that performs across Kelly drilling, CFA, and soil mixing applications. Compact transport dimensions and a robust SR 20 F carrier make it easy to mobilize while maintaining exceptional drilling output.
Key Benefits
- Up to 143 kNm torque for demanding soil and rock conditions
- 12,050 mm rotary head stroke for excellent drilling range
- Supports Kelly drilling, CFA drilling, and WSM soil mixing
- Multiple Kelly bar options up to 18.3 m drilling depth
- Stage V / Tier 4 Final Cummins B6.7 engine (209 kW)
- Strong mobility with hydraulic extendable undercarriage
Applications

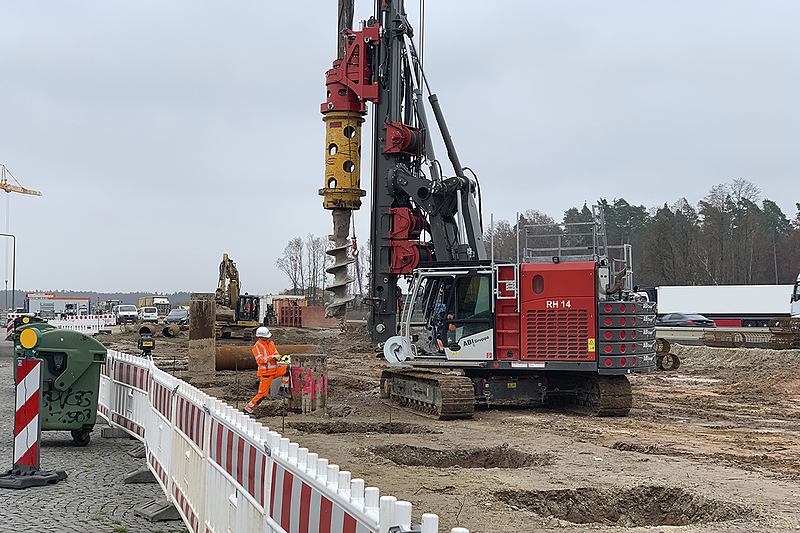

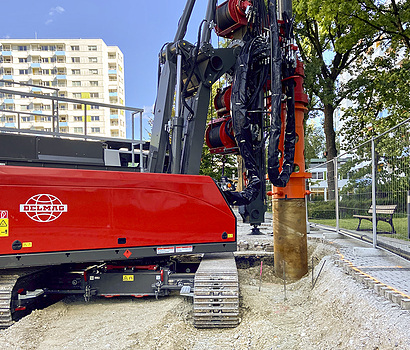

- Kelly Drilling
- Continuous Flight Auger (CFA)
- WSM Soil Mixing
- Short Mast Operations (KMB I & II)
RH 14 Specification Overview
| RH 14 | Specification |
|---|---|
| Max Torque | 143 kNm (BT 140 rotary head) |
| Drilling Stroke | 12,050 mm |
| Drilling Speeds | 15.5 rpm (rock), 40 rpm (standard), 60 rpm (spin-off) |
| Kelly Drilling Depths | 12.3 m (KS298/3-12), 15.3 m (KS298/3-15), 18.3 m (KS298/3-18) |
| Kelly Bar Diameter | 298 mm |
| Engine | Cummins B6.7 — 209 kW (Stage V / Tier 4F) |
| Operating Weight | ~45,000 kg (with rotary head + Kelly bar) |
| Transport Weight (min.) | 31,100 kg (without counterweight) |
| Travel Speed | 0–2.3 km/h |
Why Choose the RH 14
The RH 14 is built for operators who need strength, versatility, and fast mobilization. With high torque output, flexible tooling options, and reliable components, it performs consistently across deep foundation, ground improvement, and utility projects. Hammer & Steel backs each rig with expert support, training, and parts availability - making the RH 14 a dependable addition to any fleet.
Request Pricing or Schedule a Demo
Looking for deep foundation equipment you can count on? Request a quote or speak with a drilling equipment specialist today.
