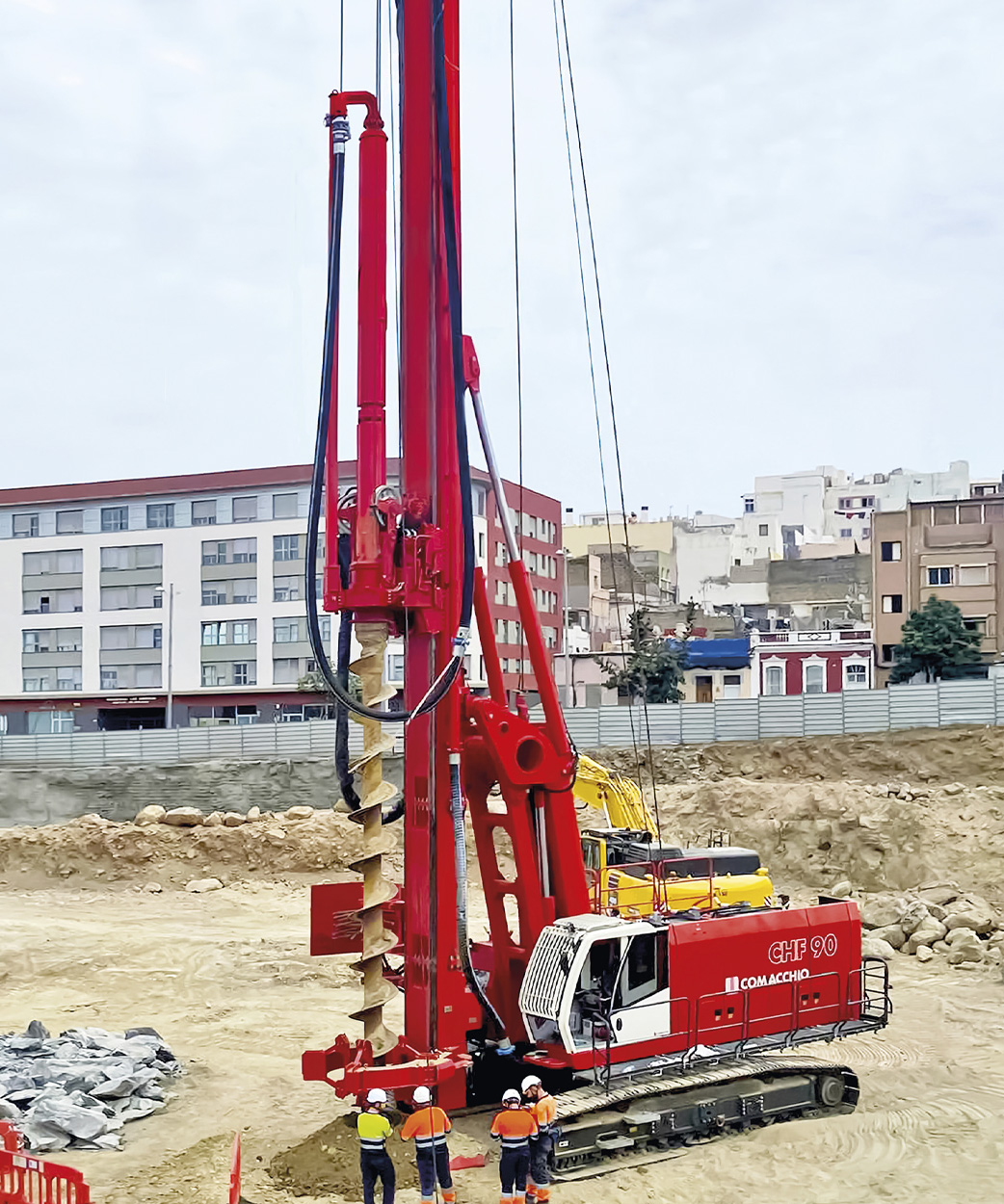

Comacchio CHF 900 Drill Rig
The Ultimate CFA Piling Rig for Deep Foundation Projects

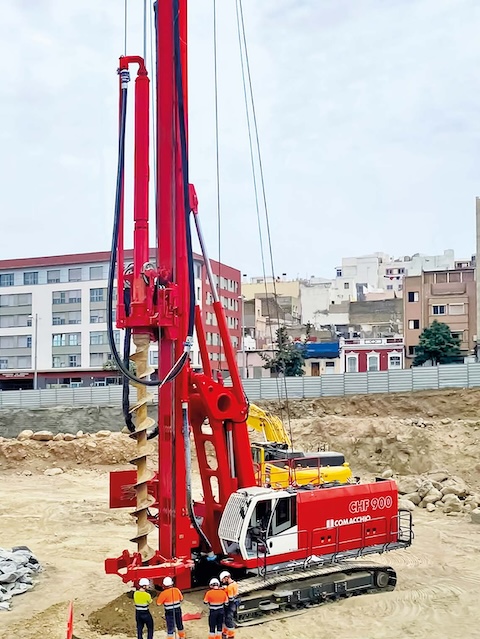

The CHF 900 is a state-of-the-art Continuous Flight Auger (CFA) piling rig, engineered for superior performance, efficiency, and reliability. Designed for fast setup, smooth operation, and maximum productivity, this 90-ton powerhouse delivers exceptional torque, stability, and drilling depth—perfect for demanding foundation projects.
Built for Power & Precision
- Unmatched Torque & Depth – Generates 280 kNm (206,500 lbf-ft) nominal torque and an extraction force of 1,120 kN (251,800 lbs), allowing it to drill CFA piles up to 32.5 meters (107 feet) deep and 1,200 mm (3'11") in diameter.
- Hydraulic Efficiency – Features advanced hydraulics for optimal performance and fuel efficiency, reducing emissions and operating costs.
- Versatile Auger System – Supports multiple auger cleaner types, including star, roller, and brush, for smooth and efficient drilling.
Fast & Easy Setup

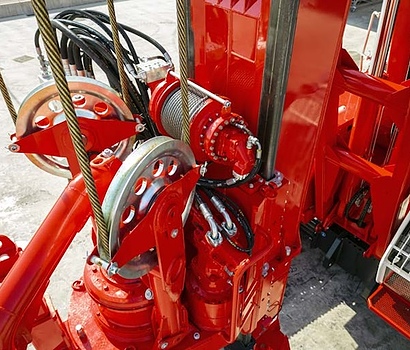

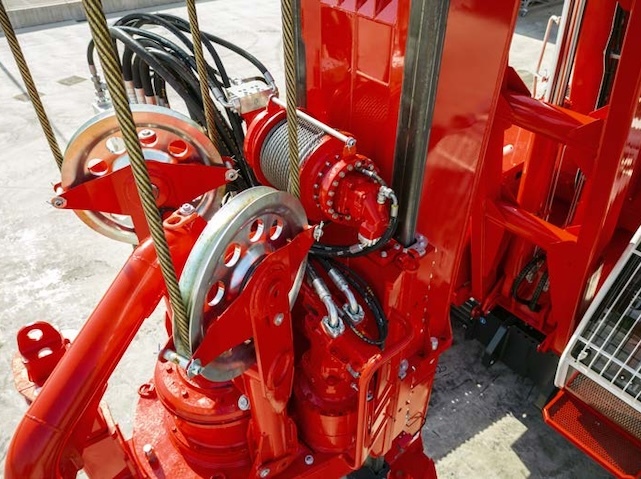

- Self-Erecting System – The CHF 900 simplifies rig-up and rig-down with hydraulic folding mast and cathead, minimizing setup time and reducing wear on components.

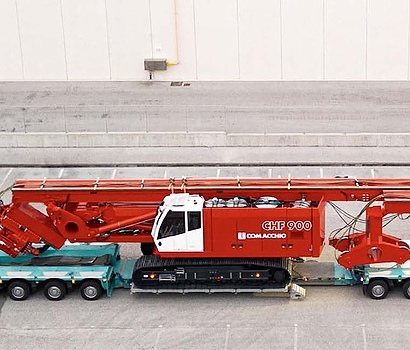

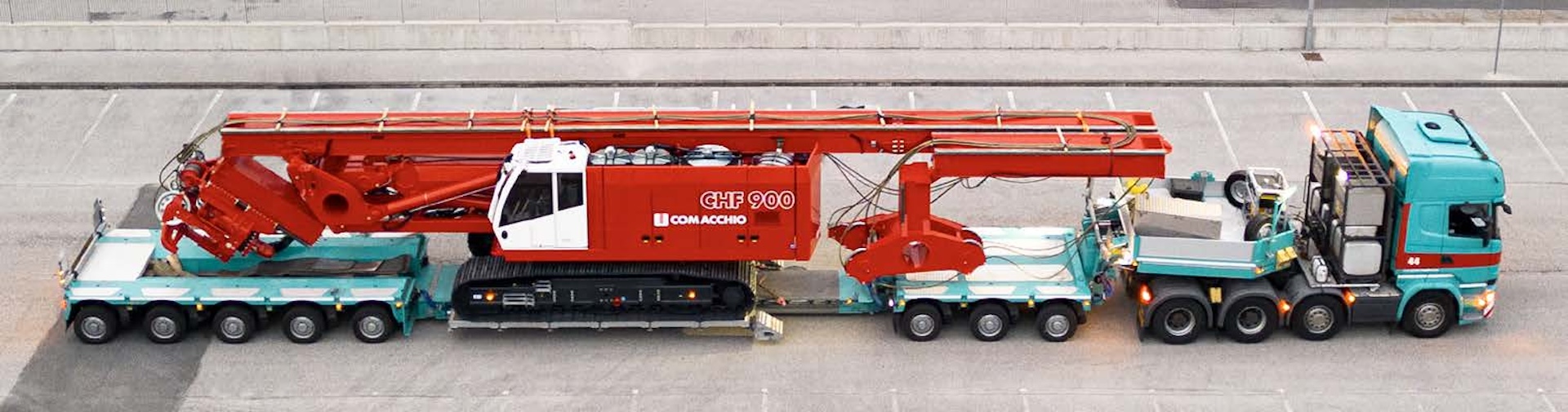

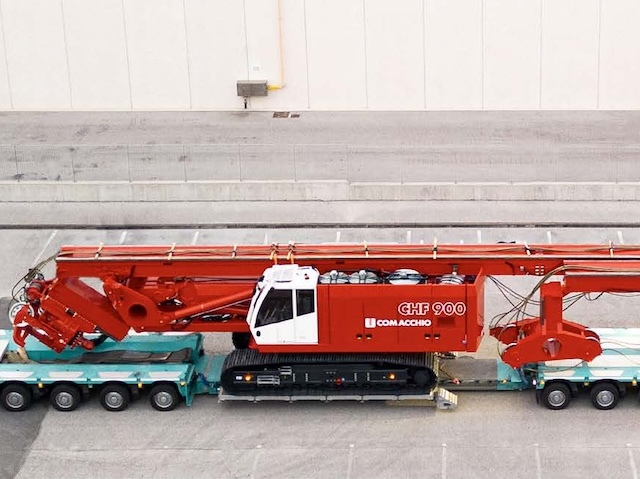

- Optimized Transportability – Designed for easy transport with minimal disassembly, ensuring faster deployment to job sites.
Unparalleled Stability & Operator Comfort
- Extended Undercarriage – Offers low ground pressure and improved stability, making it ideal for diverse ground conditions.

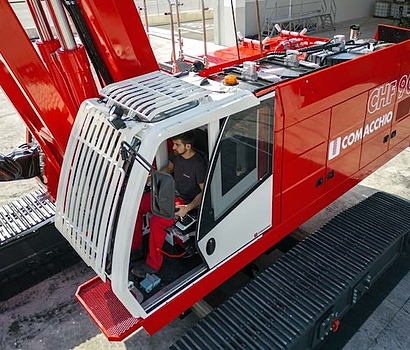

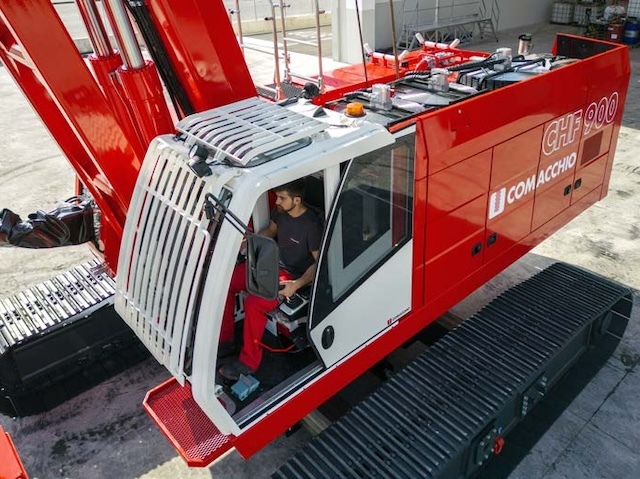

- Advanced Operator Cabin – Certified TOPS & FOPS-1 for safety, with a 12-inch touch screen control panel featuring Comacchio’s CCS System for real-time diagnostics and easy operation.
- Reduced Noise & Emissions – Equipped with a fuel-efficient Volvo D13 engine, complying with EU Stage V / US EPA Tier 4f standards, ensuring environmentally friendly operation.
Smart Technology & Safety Features
- Data Logger System – Enables real-time monitoring of drilling and concreting parameters for enhanced project control.
- Automated Functions – Includes automatic vertical mast alignment, depth measurement, and proportional cooling fan control for improved efficiency.
- Full Safety Compliance – Meets the strictest European drilling and foundation safety regulations, ensuring safe and secure operations.
Specifications
| Rig Model | CHF 900 |
|---|---|
| Diesel engine | Volvo D13 |
| Power rating | 1,700 rpm: 345 - 405 kW (462 - 543 hp) |
| Max nominal torque | 280 kNm (206,500 lbf-ft) |
| Main Winch | 280 kN (63,000 lbs) |
| Operating weight WPD | 86.1 tons (without tool) |
| WPD (Winch Pull Down) | 150 kN (33,700 lbs) |
| Max pull up force | 1,120 kN (251,800 lbs) |
| CFA - Max pile diameter | 1,200 mm (3’11”) |
| CFA - Max pile depth |
32.5 m (107’ – includes 6 m auger extension) |
Get More Done with the CHF 900
Designed for maximum efficiency, safety, and reliability, the CHF 900 sets a new standard in CFA piling rigs. Ready to transform your foundation projects with cutting-edge performance and smart technology? Contact us today to learn more about the CHF 900 and request a quote!
