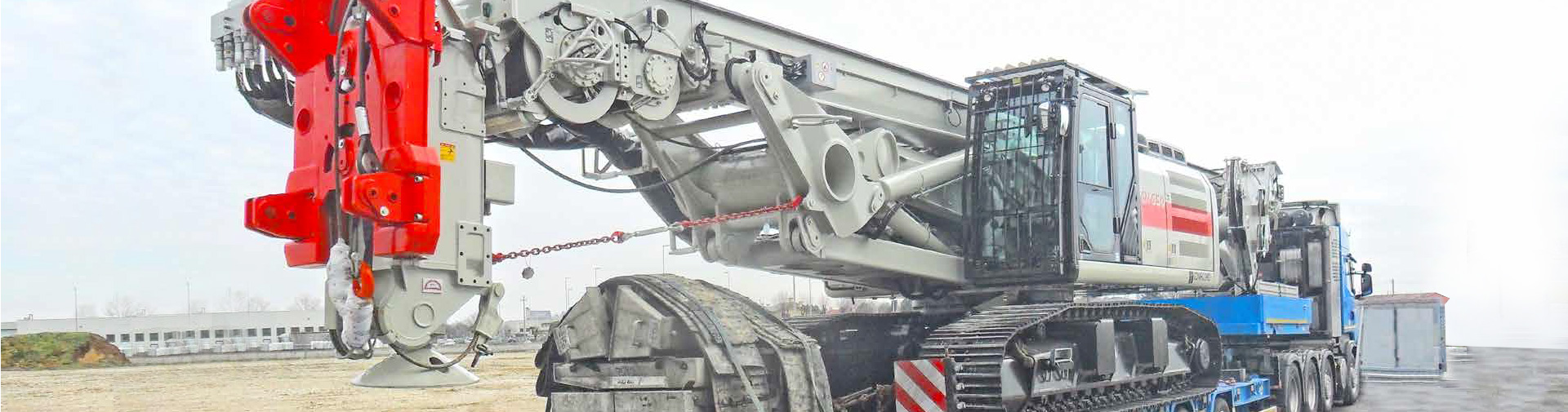

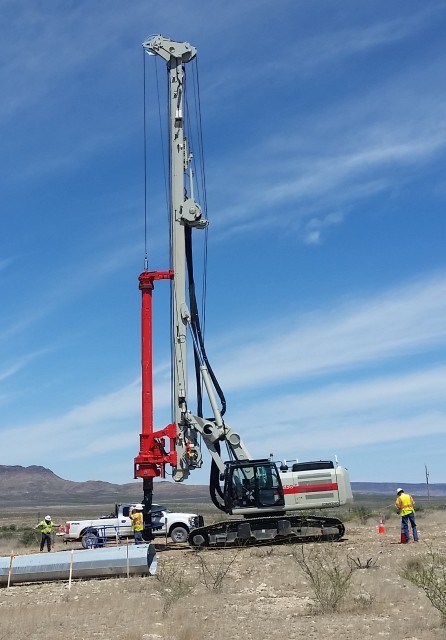

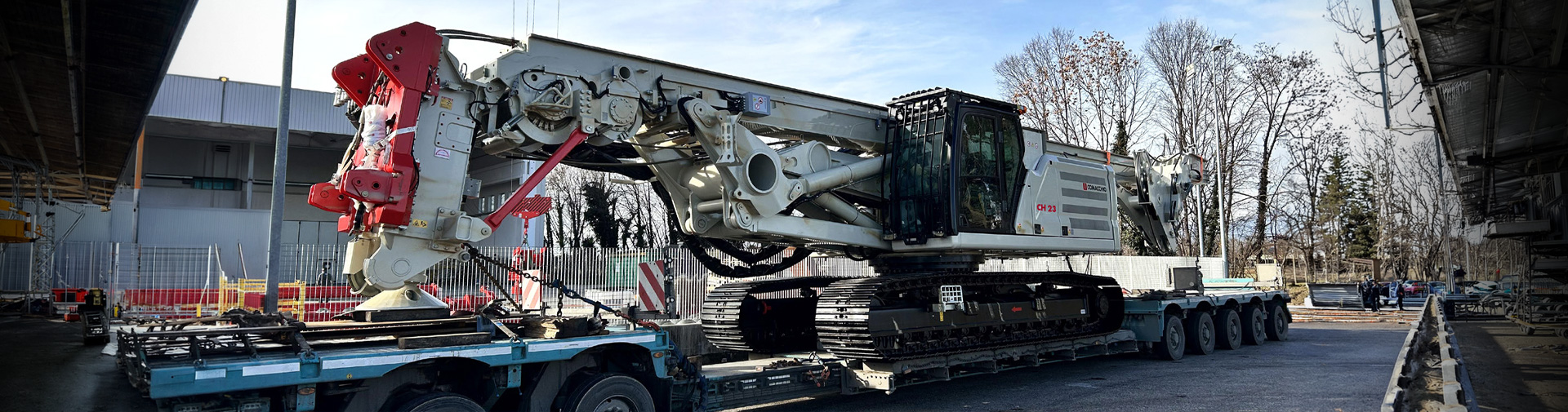

Comacchio CH 650 Drill Rig

The CH 650 is a multipurpose drilling rig mounted on a dedicated excavator carrier with an operating weight of 70 tons. The rig is self-erecting and can be transported with minor disassembly of the machine, thus allowing for easy and fast rig-up. The CH 650 is designed to cover a wide range of drilling technologies that include bored piles, continuous flight augers (CFA piles), displacement piles and soil mixing. The machine can be supplied in the CPD (cylinder pull down) and WPD (winch pull down) versions and can be equipped with different kelly bars, reaching a max. pile depth of 69 m.

Rig Model CH 650
Diesel engine CAT C9 / C9.3 (EU Stage IIIA/Stage IV - US EPA Tier 3/Tier 4f)
Power rating 240 kW (321 HP) / 1550 rpm - 261 kW (350 HP) / 1800 rpm
Max nominal torque 193,240 lbf*ft

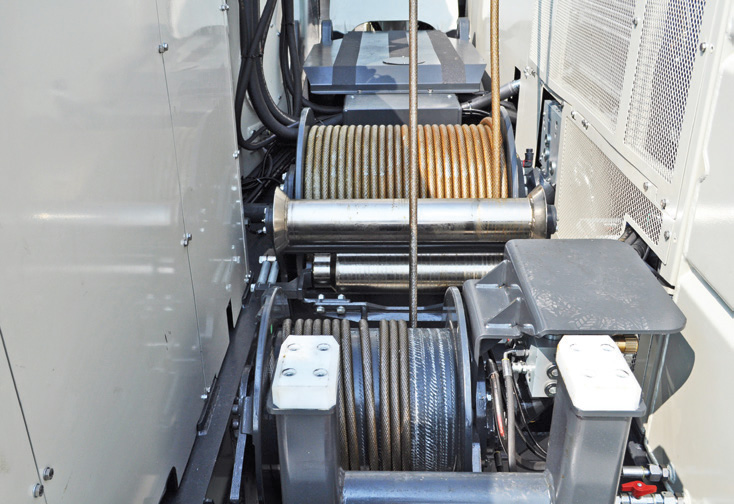

Main Winch 56,200 lbs
Transport weight CPD 143,300 lbs
Transport weight WPD 147,700 lbs

WPD (Winch Pull Down)
Max pull up force 74,200 lbs

CPD (Cylinder Pull Down)
Max pull up force 63,000 lbs

CFA
Max pile diameter 3’ 3”
Max pile depth 50’ 10” + 23‘ = 73’ 10”

comacchio ch 650 drill rig

Comacchio CH 650

Download Brochure
