ABI Mobilram TM 26

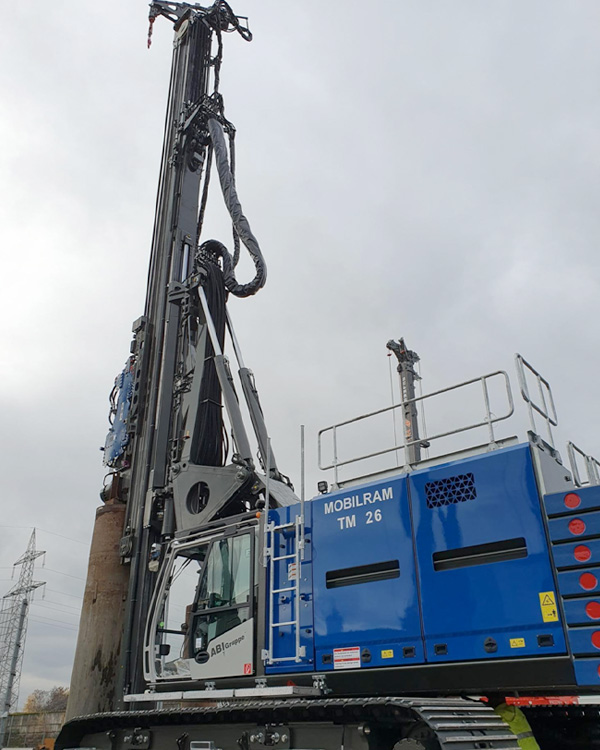

The TM 26 is the newest and largest telescopic leader mast in the ABI fleet. With an effective stroke of over 80’, the machine is suited for the largest jobs in the industry. The TM 26 is mounted on a Sennebogen SR 45 carrier with reinforced kinematics to handle the largest attachments, including the MRZV 36VV. It is ideally suited for the installation of extremely long sheet pile as well as drilling and soil mixing projects.
| Rig Model | TM 26 |
|---|---|
| Rig Features | |
| Docking | D6 |
| Sennebogen Carrier | SR 45 HD |
| Engine, HP | CATC18, 754 |
| Aux. Winch, Capacity | 5.6 ton |
| Vibratory Attachment | MRZV 36 VV |
| Vibratory Attachment | MRZV 36 VV |
|---|---|
| w/SKZ 1800 | |
| Eccentric Moment | 0 - 3121 in. lb. |
| Max. Operating Speed | 2600 cpm |
| Max. Driving Force | 168 tns |
