Vibro Pile

A vibro-pile is a closed off casing that is vibrated into the ground displacing and "densifying" all the material in its path. The casing is then filled with concrete and reinforcement and then extracted (or filled with concrete as it is extracted and the reinforcement is installed later.)

Vibro-pile is used as an alternative to pre-cast piles or drilled cast-in-situ piles in soft grounds especially when vibrating a can/probe is faster than drilling and casing or when vertical tie downs are necessary.

Advantages

  • High production, low cost, superior quality piles.
  • No spoils are removed from the ground.
  • The material is "densified" around the pile providing more bearing and lateral load capacity.
  • The casing/probe hole is sealed and there is no possibility of contamination of the pile.
  • The foot of the pileis flat and gives a better end bearing load capacity.
  • The diameter of the pile can be expanded by pumping concrete under pressure while withdrawing the relatively small diameter probe.

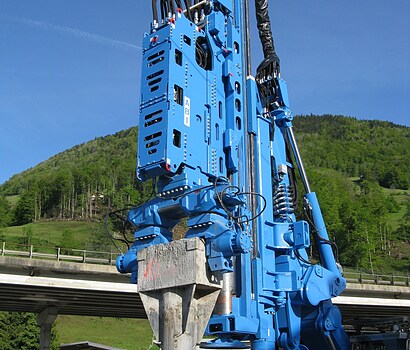

 vibro-pile equipment


Vibro Piles (Stone Columns)

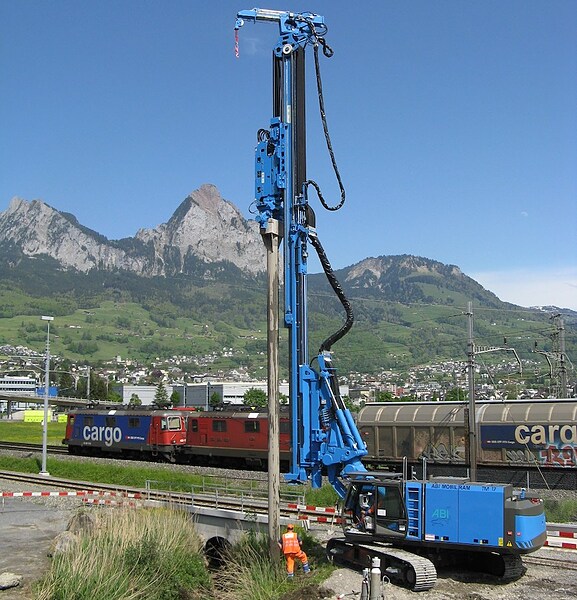

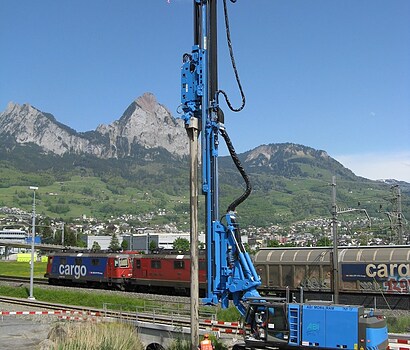

The multi-purpose ABI Mobilram is the ideal piece of equipment for vibro-pile applications. Read more information about the ABI Mobilram.

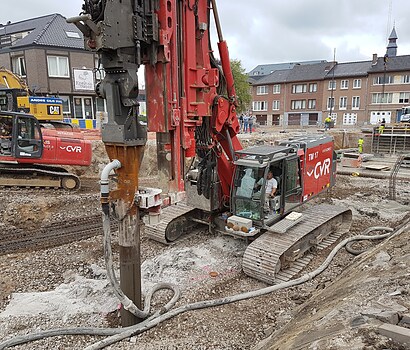

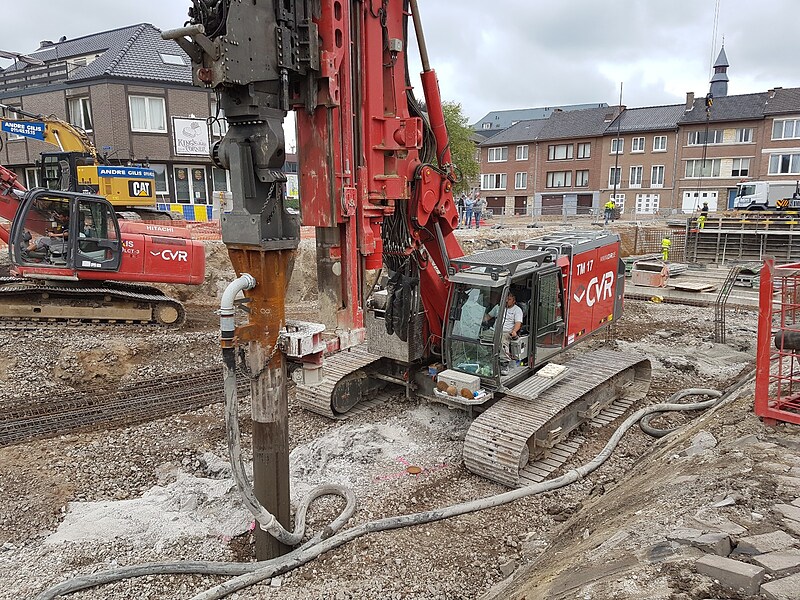

 vibro-pile applications  vibro-pile application
