Steel Sheet Pile

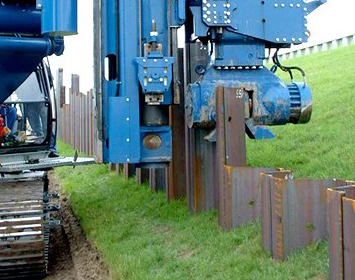

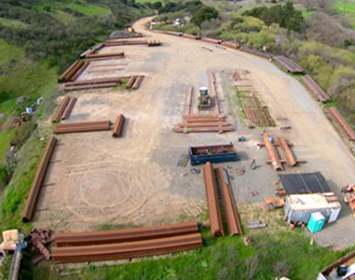

With multiple stocking facilities throughout the United States, Hammer & Steel has a large selection of steel sheet piling products available for sale or rental. Our sheet piling products feature mechanical "ball and socket" connections that allow each sheet to interlock with another and create a rigid barrier for earth and water while resisting the lateral pressures of the these forces. The ball and socket interlock also permits flexibility in setting while remaining very durable under driving conditions compared to other systems.

The Z shape of each section lends to its structural strength which is determined not only by the size, but also by the thickness of the steel. Of course, the soil conditions in which the section is driven will also affect the performance of the foundation or wall. The PZC and PZ series sheet pile can often be used as an alternative to Trade Arbed AZ sheet piling from Arcelor.

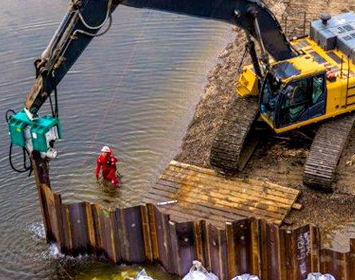

High Efficiency"Z" Section Steel Sheet Pile

					Per Single Section						Per Foot Of Wall
Section Designation	Nominal Width	Wall Depth (Height)	Web Thickness	Flange Thickness	Area	Weight Per Foot	Moment of Inertia	Section Modulus	Total Surface Area	Nominal Coating Area	Area	Weight Per Foot	Moment of Inertia	Section Modulus
Section Designation	in.	in.	in.	in.	in.²	lbs/ft	in.⁴	in.³	ft²/ft	ft²/ft	in²/ft	lbs/ft²	in⁴/ft	in³/ft
PZC"12	27.88	12.52	0.335	0.335	13.64	46.4	326.6	52.0	6.09	5.60	5.87	20.0	140.6	22.4
PZC"13	27.88	12.56	0.375	0.375	14.82	50.4	353.0	56.2	6.09	5.60	6.38	21.7	152.0	24.2
PZC"14	27.88	12.60	0.420	0.420	16.15	55.0	382.7	60.5	6.09	5.60	6.95	23.7	164.8	26.0
PZC"17	25.00	15.21	0.335	0.335	13.64	46.4	492.9	64.5	6.09	5.60	6.55	22.3	236.6	31.0
PZC"18	25.00	15.25	0.375	0.375	14.82	50.4	532.2	69.8	6.09	5.60	7.12	24.2	255.5	33.5
PZC"19	25.00	15.30	0.420	0.420	16.16	55.0	576.5	75.2	6.09	5.60	7.76	26.4	276.7	36.1
PZC"26	27.88	17.70	0.525	0.600	21.72	73.9	994.3	112.4	6.65	6.15	9.35	31.8	428.1	48.4
All Dimensions Are Nominal

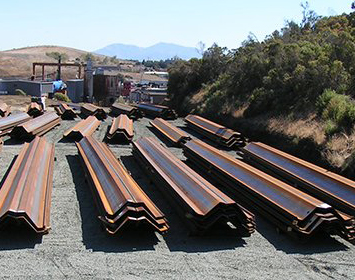

Heavy Duty "Z" Section Sheet Pile

					Per Single Section						Per Foot Of Wall
Section Designation	Nominal Width	Wall Depth (Height)	Web Thickness	Flange Thickness	Area	Weight Per Foot	Moment of Inertia	Section Modulus	Total Surface Area	Nominal Coating Area	Area	Weight Per Foot	Moment Of Inertia	Section Modulus
Section Designation	in.	in.	in.	in.	in.²	lbs/ft	in.⁴	in.³	ft²/ft	ft²/ft	in.²/ft	lbs/ft²	in.⁴/ft	in.³/ft
PZ 22	22	9.25	0.375	0.375	12.2	41.5	156	33.7	4.96	4.46	6.65	22.6	85.1	18.4
PZ 27	18	12.1	0.375	0.375	12.2	41.5	281	46.4	4.96	4.46	8.13	27.7	187.3	31
PZ 35	22.64	15.1	0.5	0.605	19.4	66	697	92.3	5.83	5.33	10.28	35	369.4	48.9
PZ 40	19.69	16.4	0.5	0.6	19.28	65.6	824.8	100.6	5.83	5.33	11.75	40	502.7	61.3
All Dimensions Are Nominal

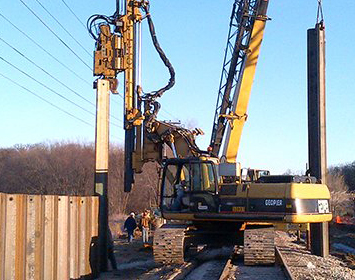

Flat Sections

Typically used for circular cell design applications, flat sheet pile is a proven technology that is still used on many projects. While these sheet piles offer much less beam strength than Z piles, the sections use a Thumb and Finger interlock with a three-point contact connection to generate significant pull strength to counter the hoop stress applied to them.

			Per Single Section				Per Foot Of Wall
Section Designation	Nominal Width	Web Thickness	Weight Per Foot	Moment of Inertia	Section Modulus	Nominal Coating Area	Weight Per Foot	Moment Of Inertia	Section Modulus
Section Designation	in.	in.	lbs/ft	in.⁴	in.³	ft²/ft	lbs/ft²	in.⁴/ft	in.³/ft
PS 27.5	19.69	0.4	45.2	5	3.2	3.68	27.5	3	1.9
PS 31.0	19.69	0.5	50.9	5	3.2	3.68	31	3	1.9
All Dimensions Are Nominal
