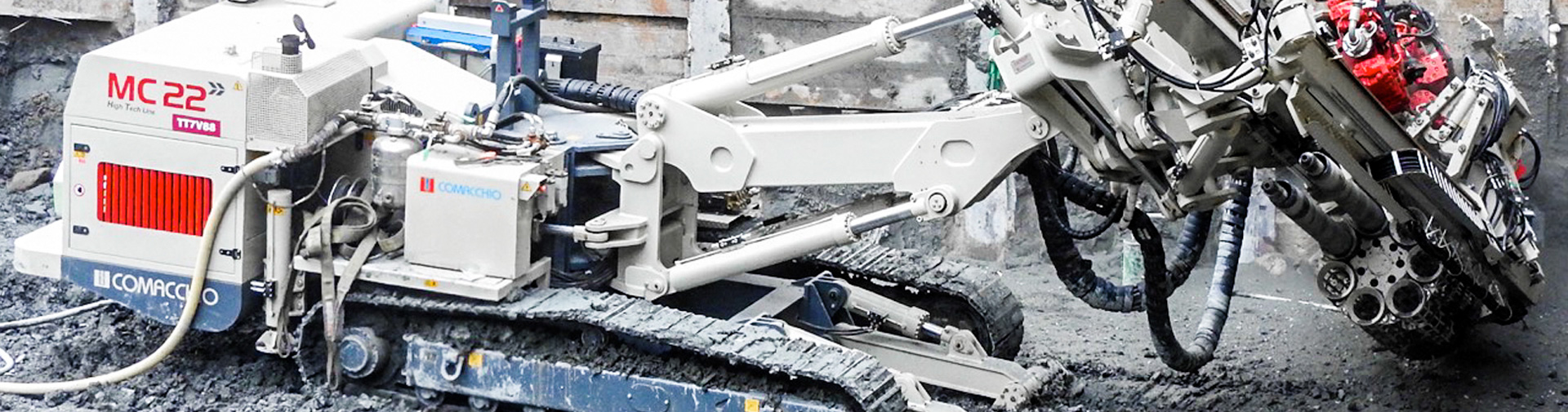

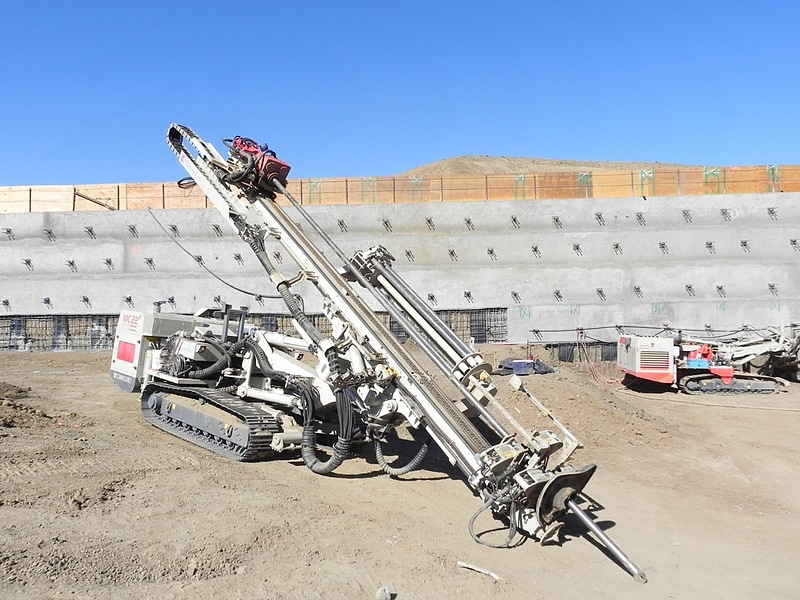

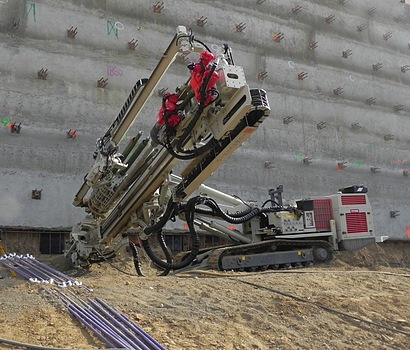

Comacchio MC 22 Drilling Rigs

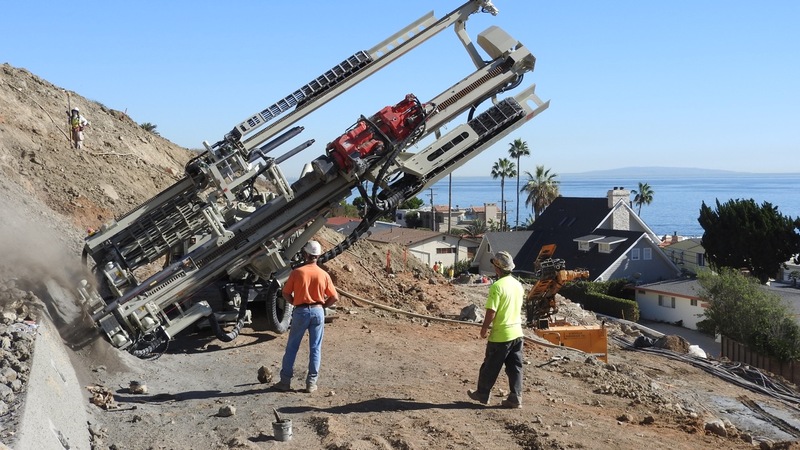

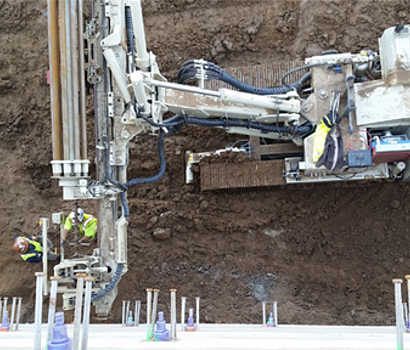

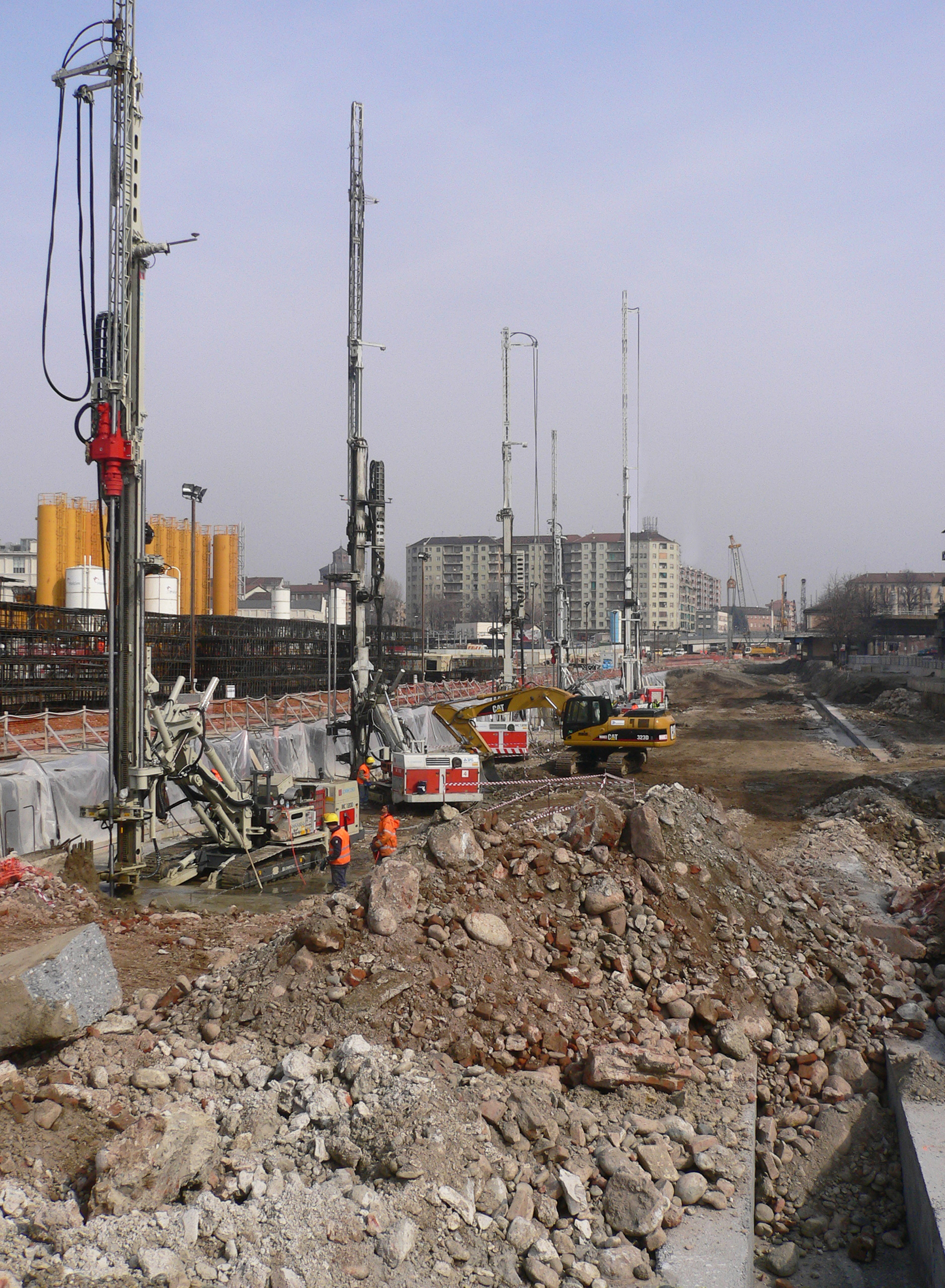

The variety of movements and inclinations due to this system allows for the use of the MC 22 for various kinds of ground engineering works (micropiles, anchors, jet grouting and consolidations in general) even in confined spaces.

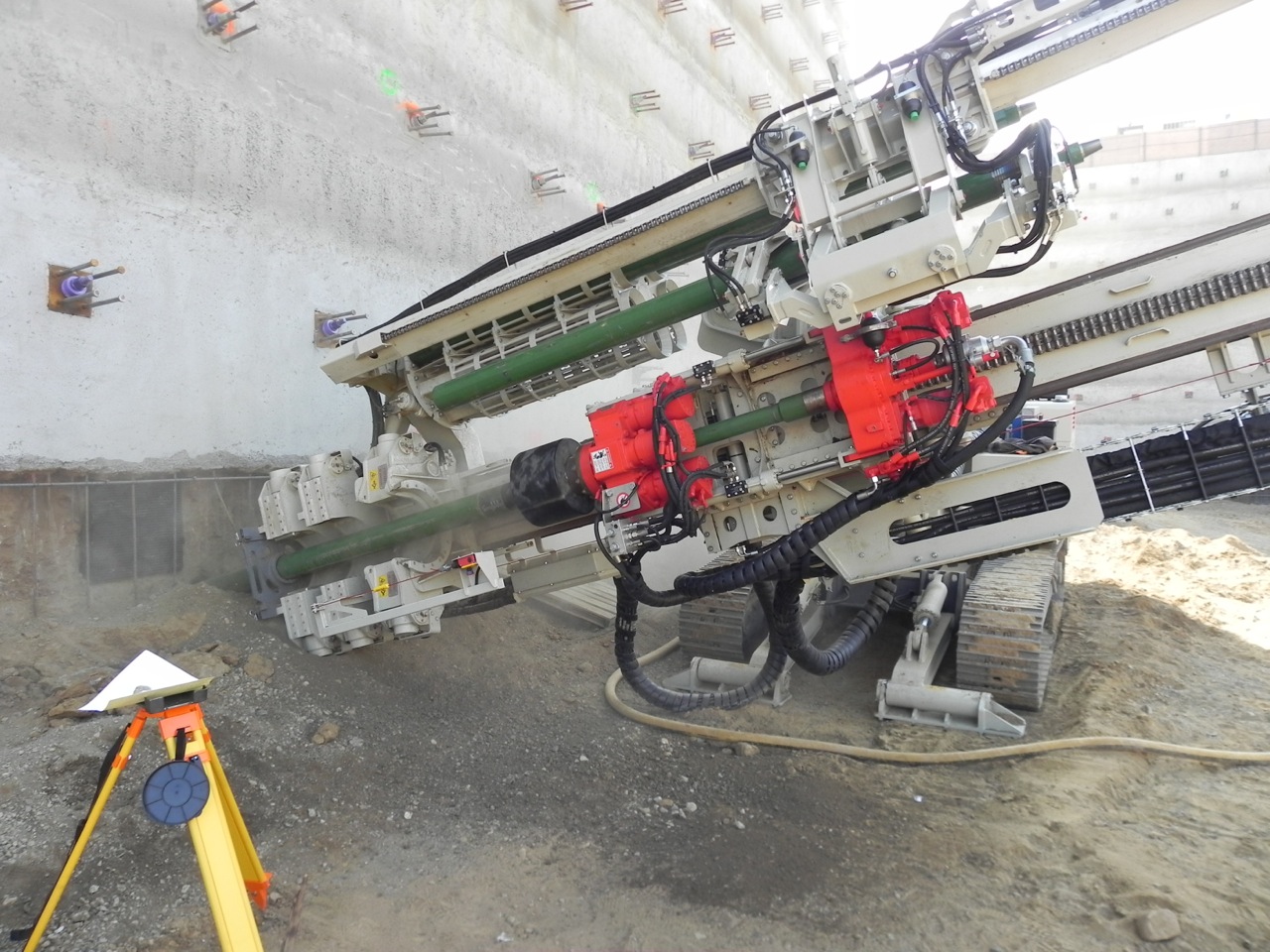

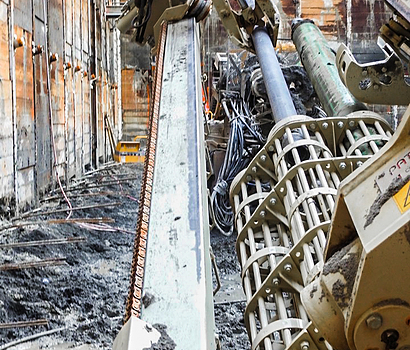

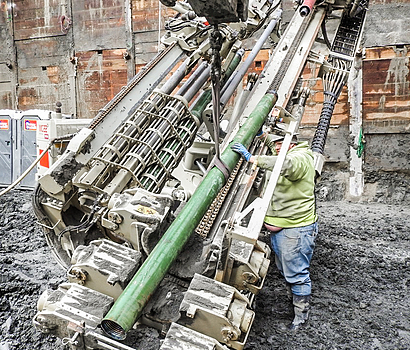

The MC 22 was the first drilling rig equipped with the innovative Comacchio mast articulation system. Available with a wide selection of rotary heads, hydraulic hammers, double head systems, water and mud pumps, winches and rod carousels, the MC 22 is suitable for any type of rotary and rotary-percussive drilling and can be equipped with hydraulic proportional servo-assisted controls or radio control for tramming, drilling, machine set-up and carousel functions.

Specifications
Engine Power 197 - 225 HP
Max Width 8.2 ft
Weight 48,500 - 52,900 lbs
Mast Feed 14.6 - 33.5 ft
Feed Force 17,984 lbs
Retract Force 17,984 lbs
Rotary Torque 9,588 - 22,864 lb*ft
Rotary Speed Range 48 - 350 rpm
Clamp Range 1.8 - 20.9 in

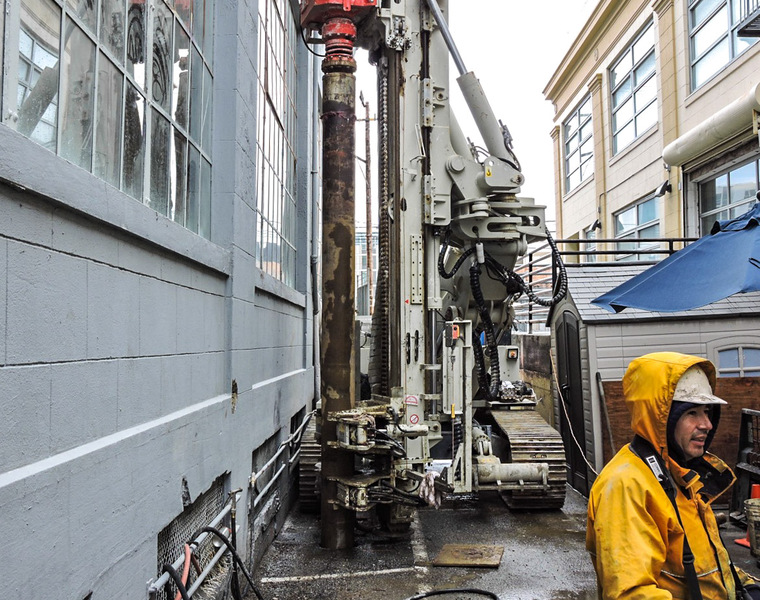

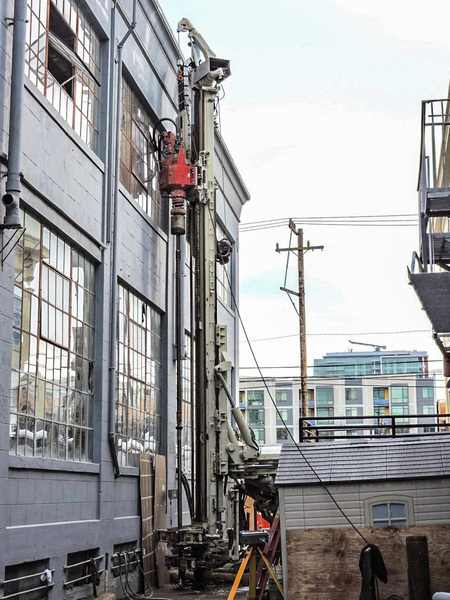

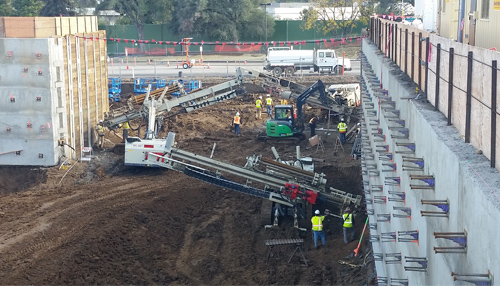

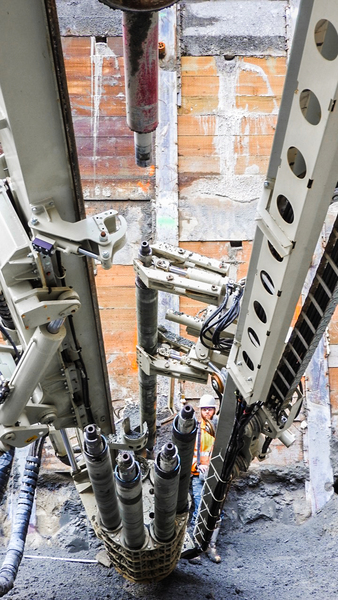

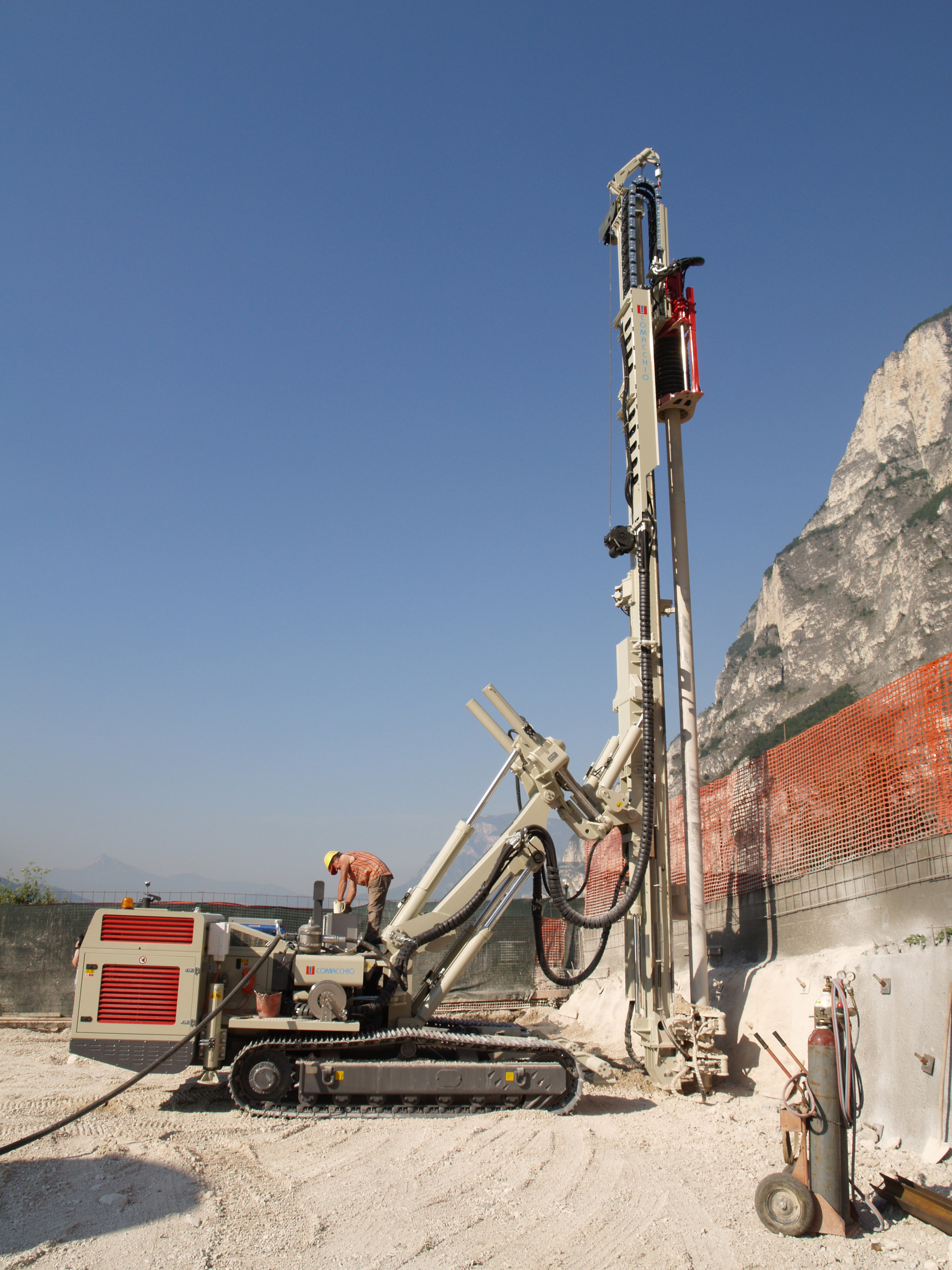

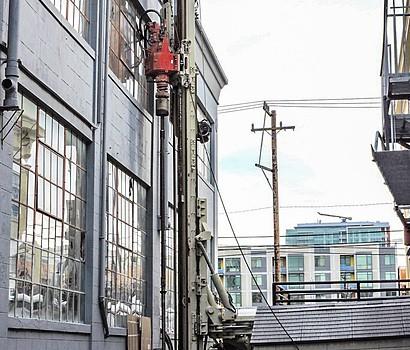

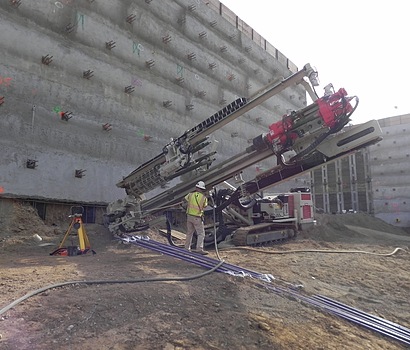

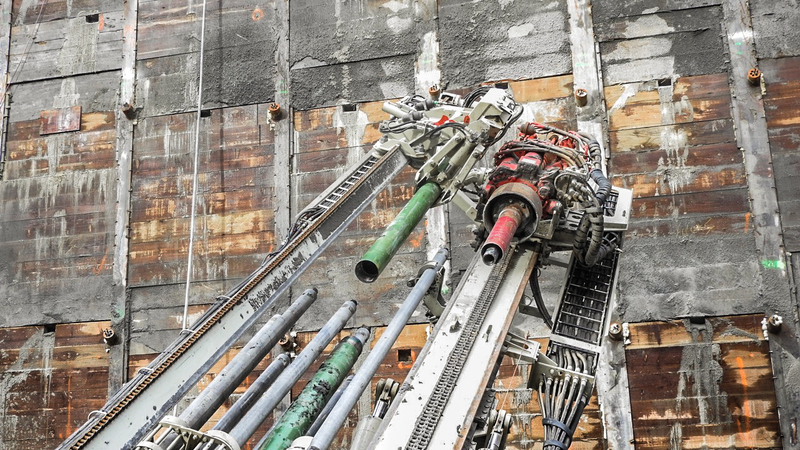

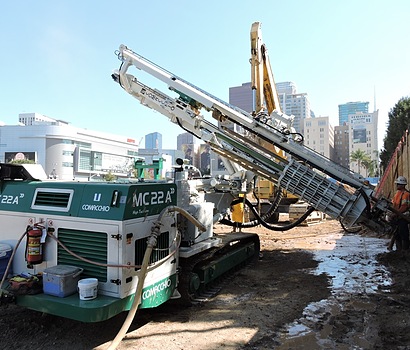

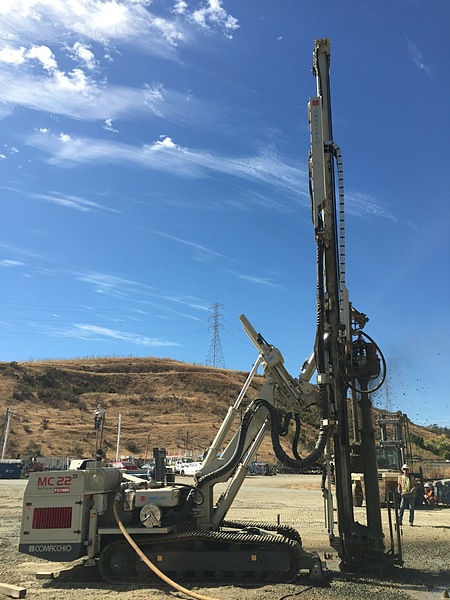

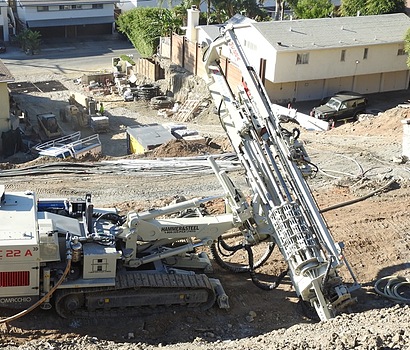

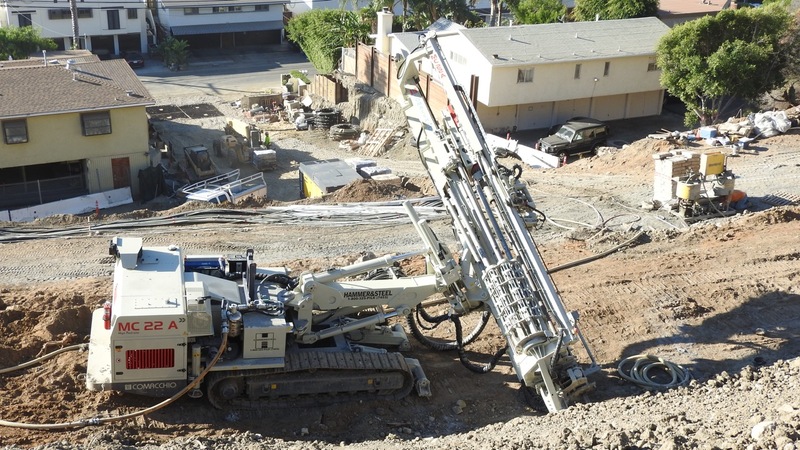

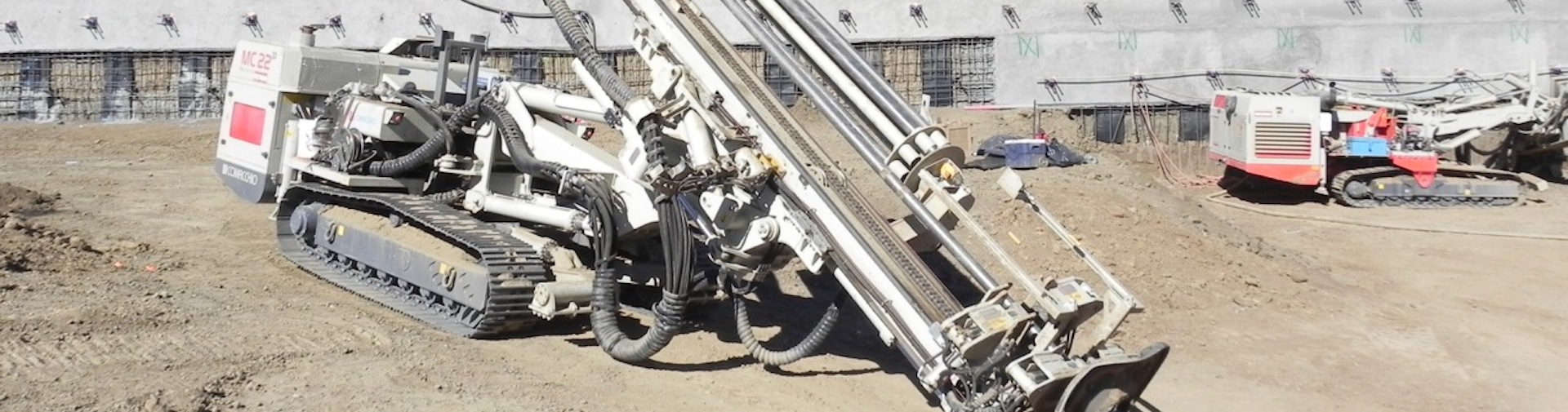

comacchio mc 22 drill rig

Comacchio MC 22 Drilling Rigs

Download Brochure

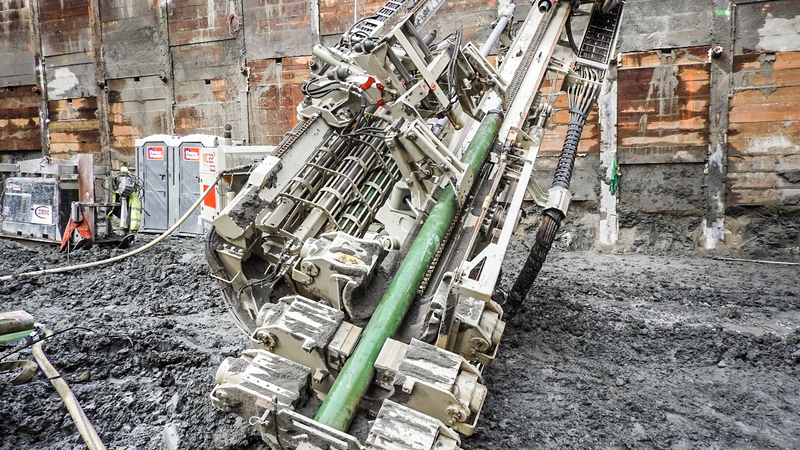

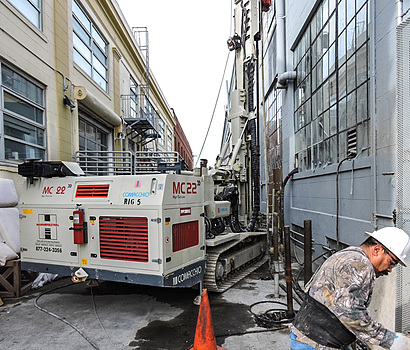

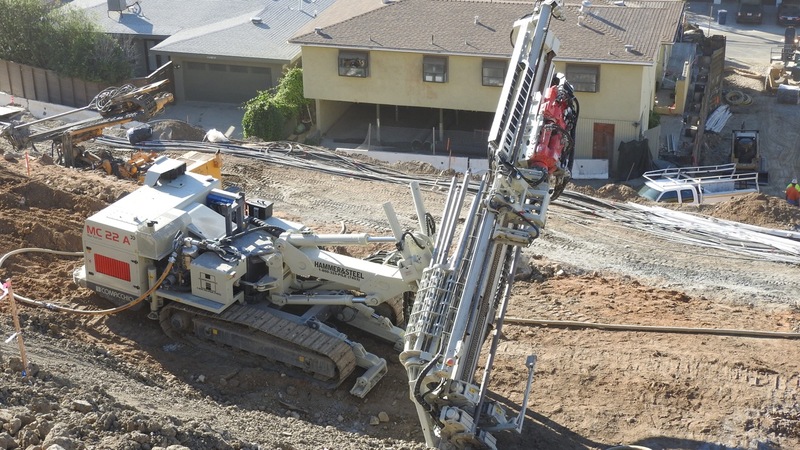

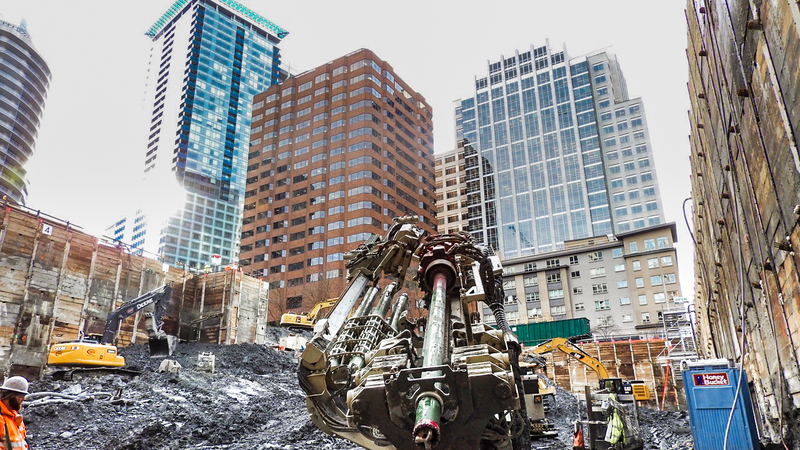

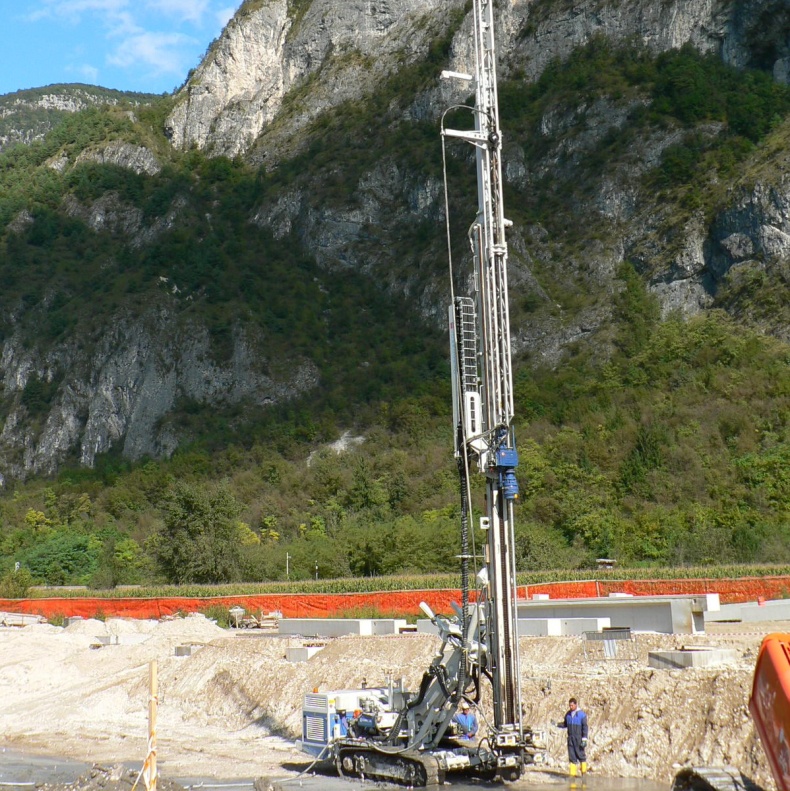

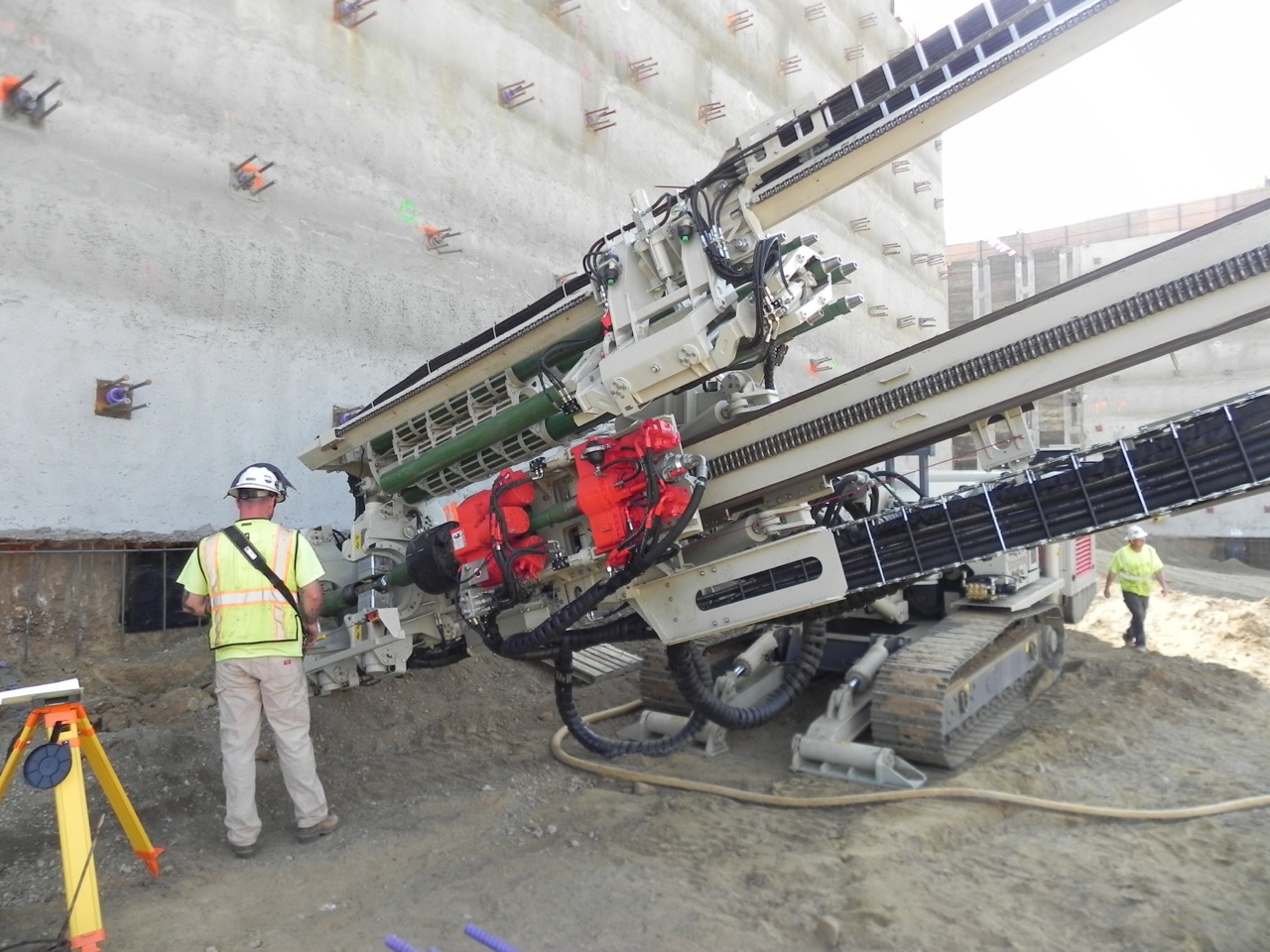

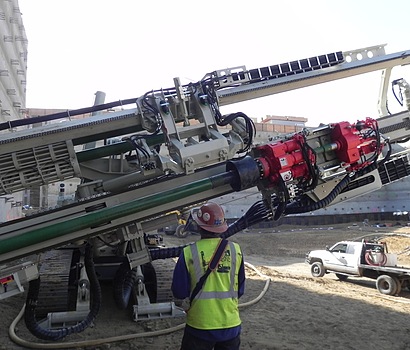

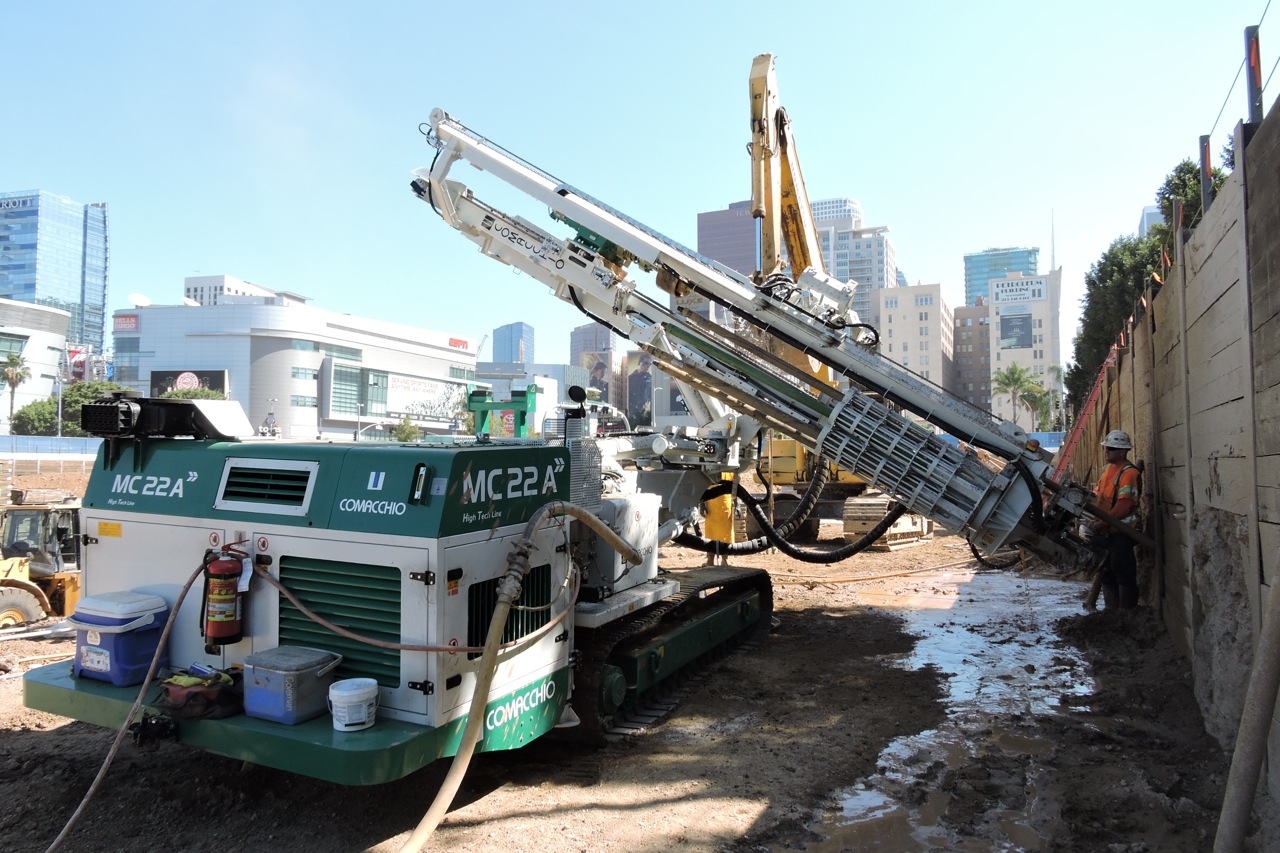

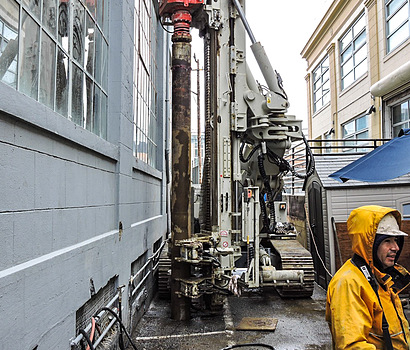

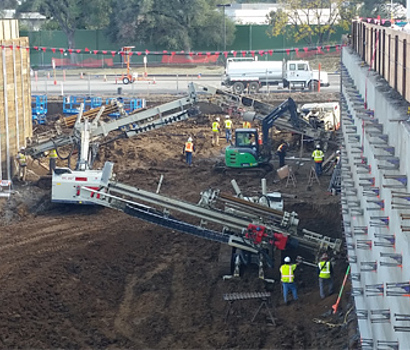

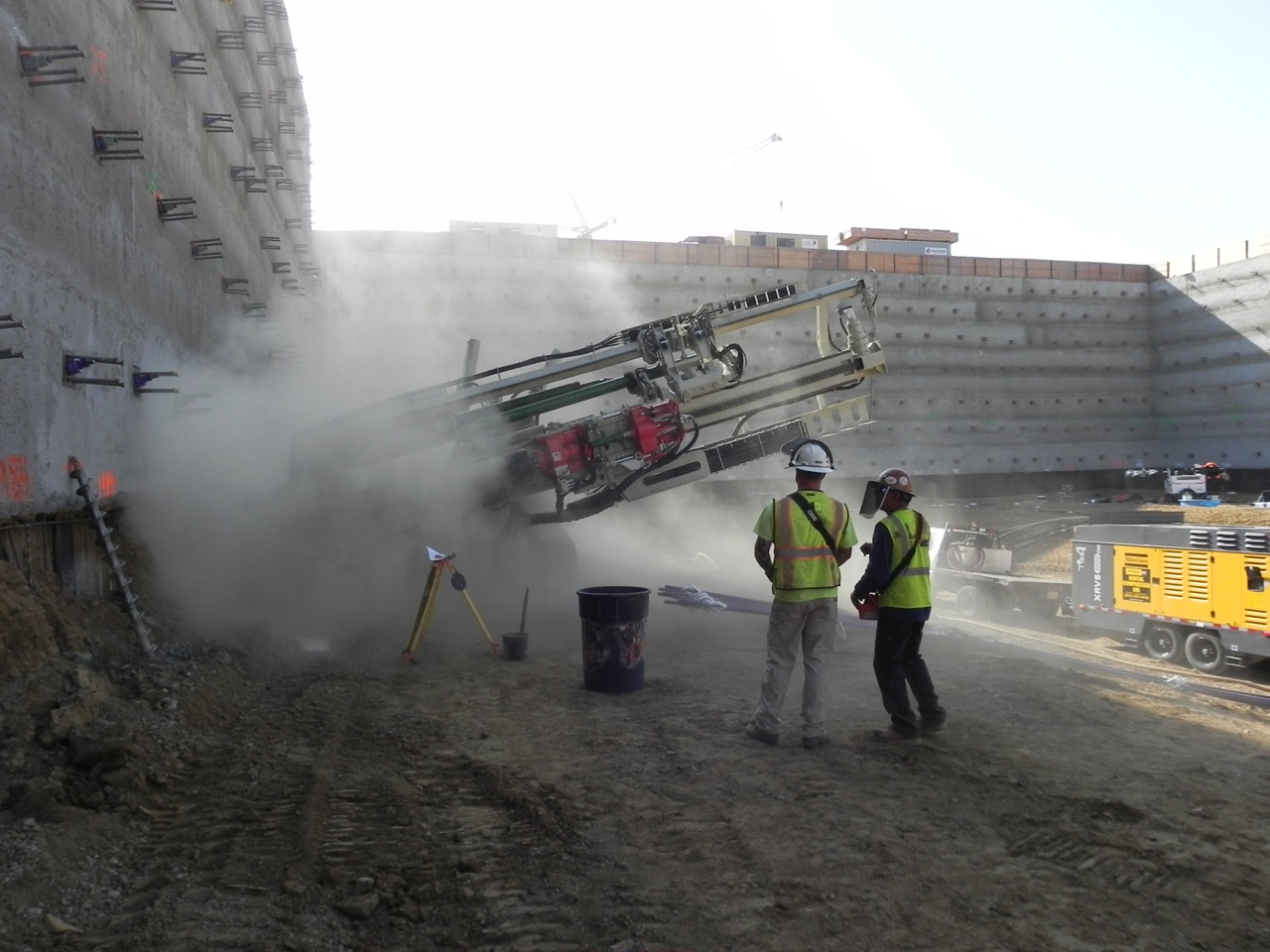

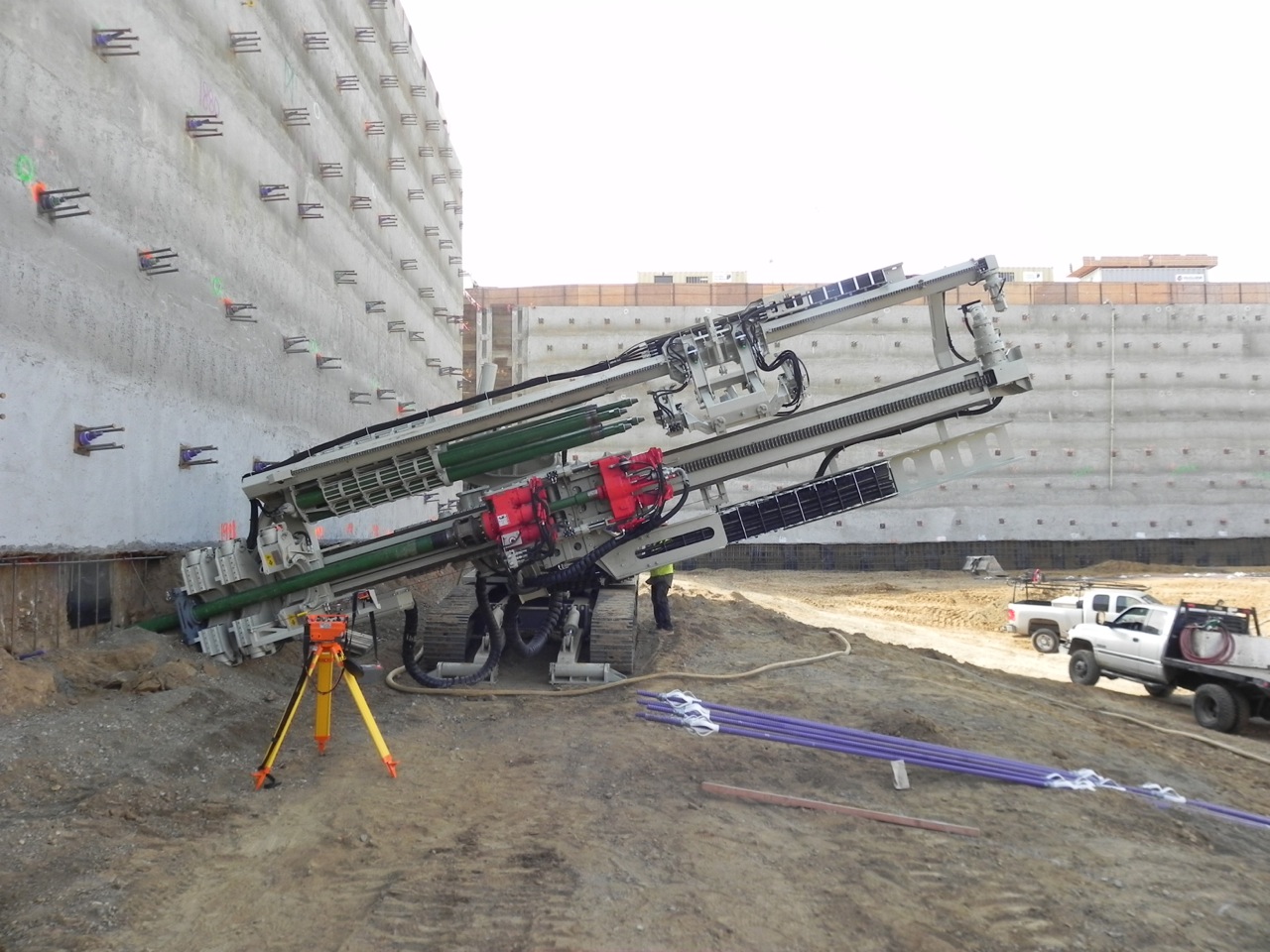

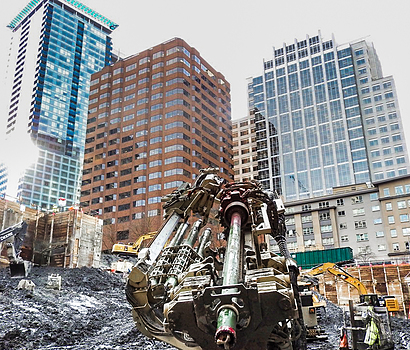

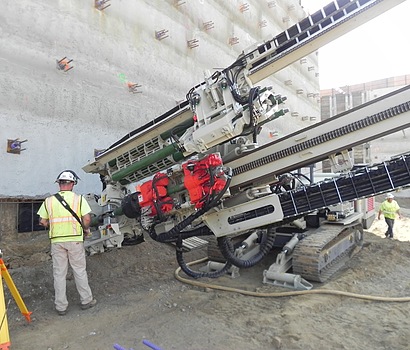

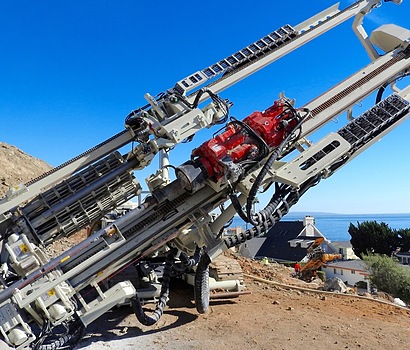

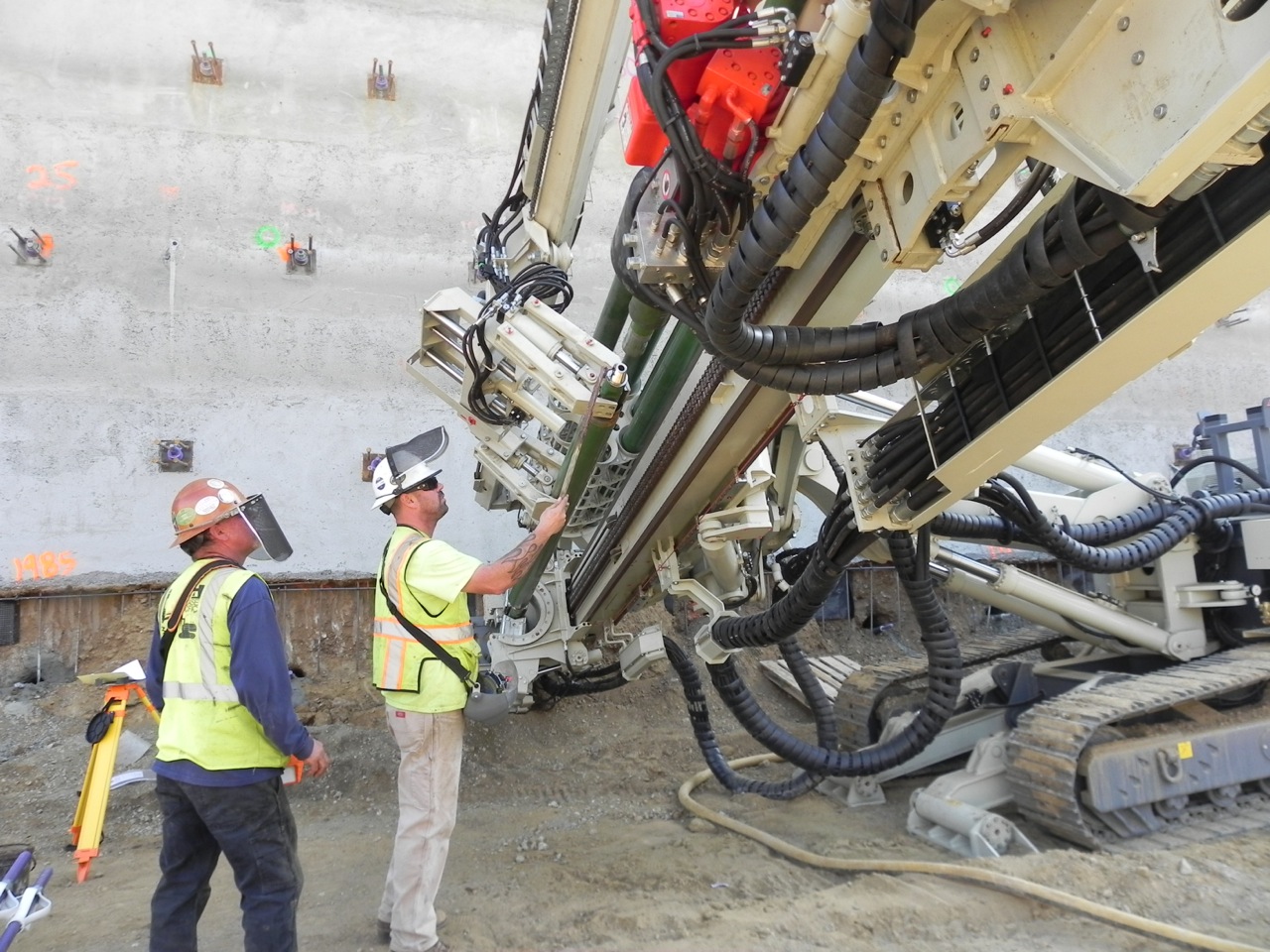

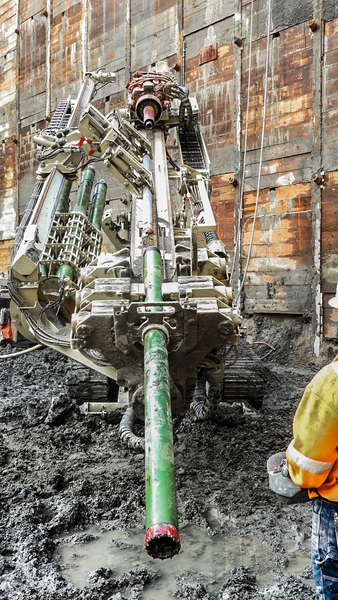

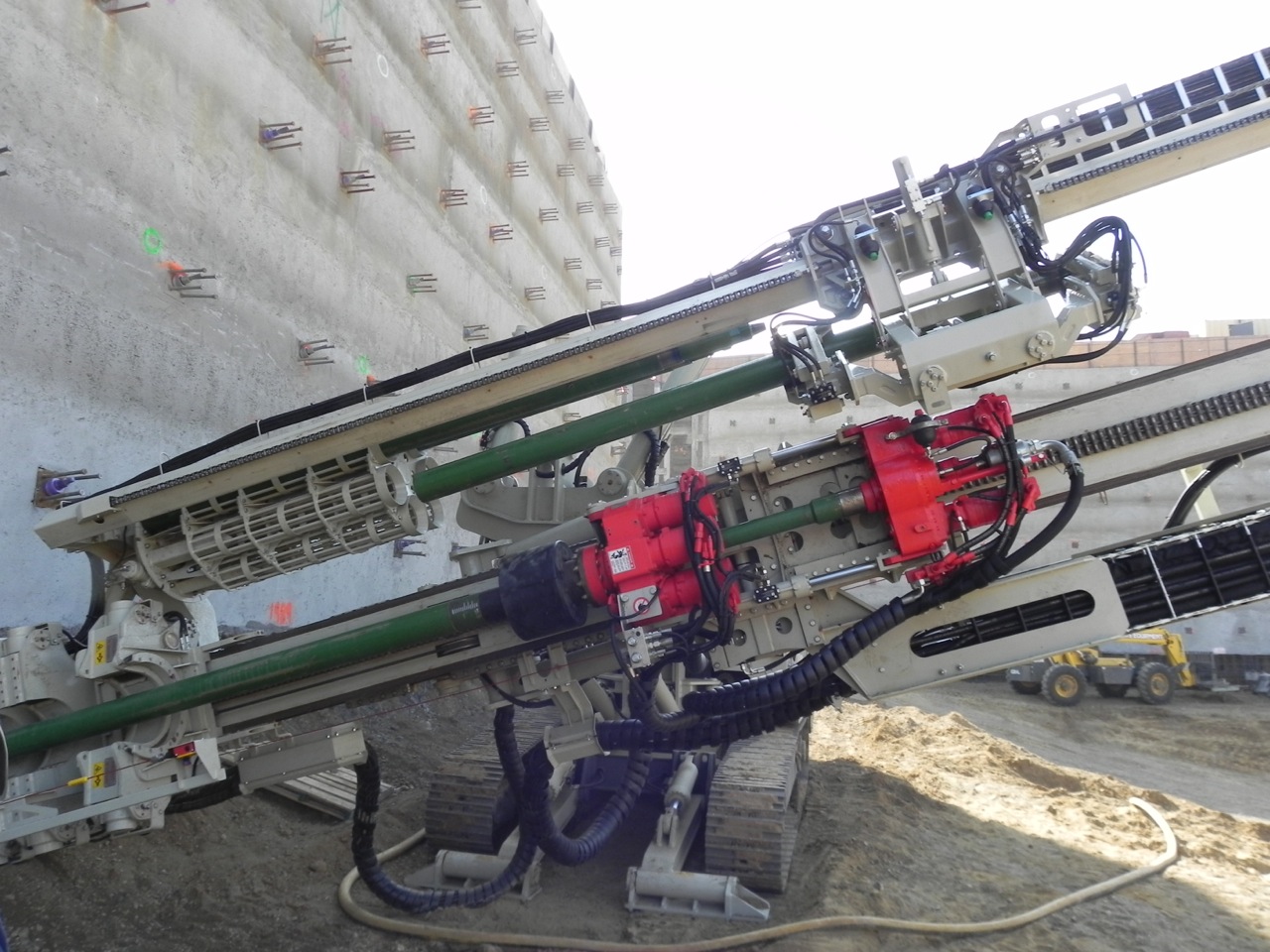

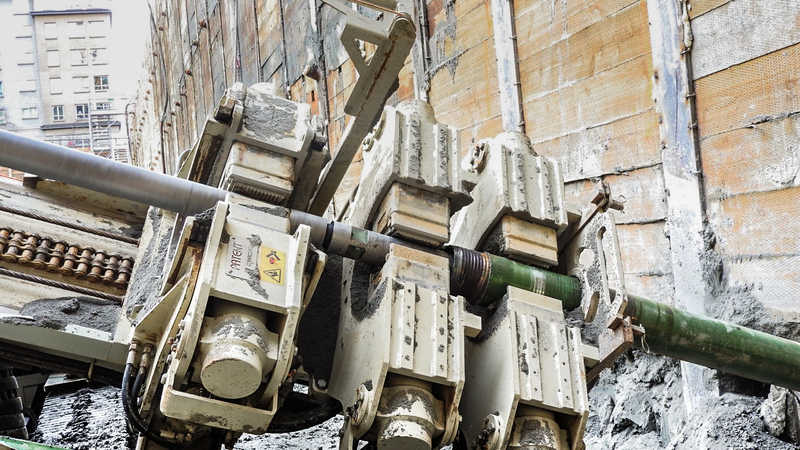

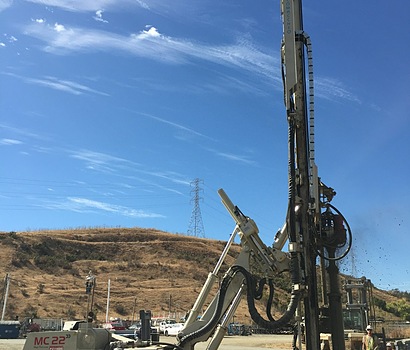

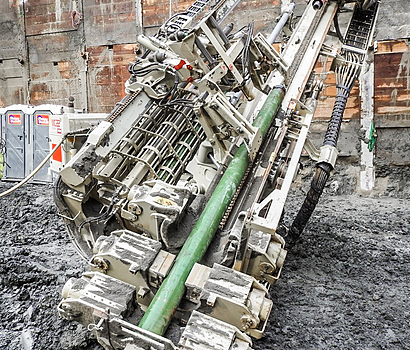

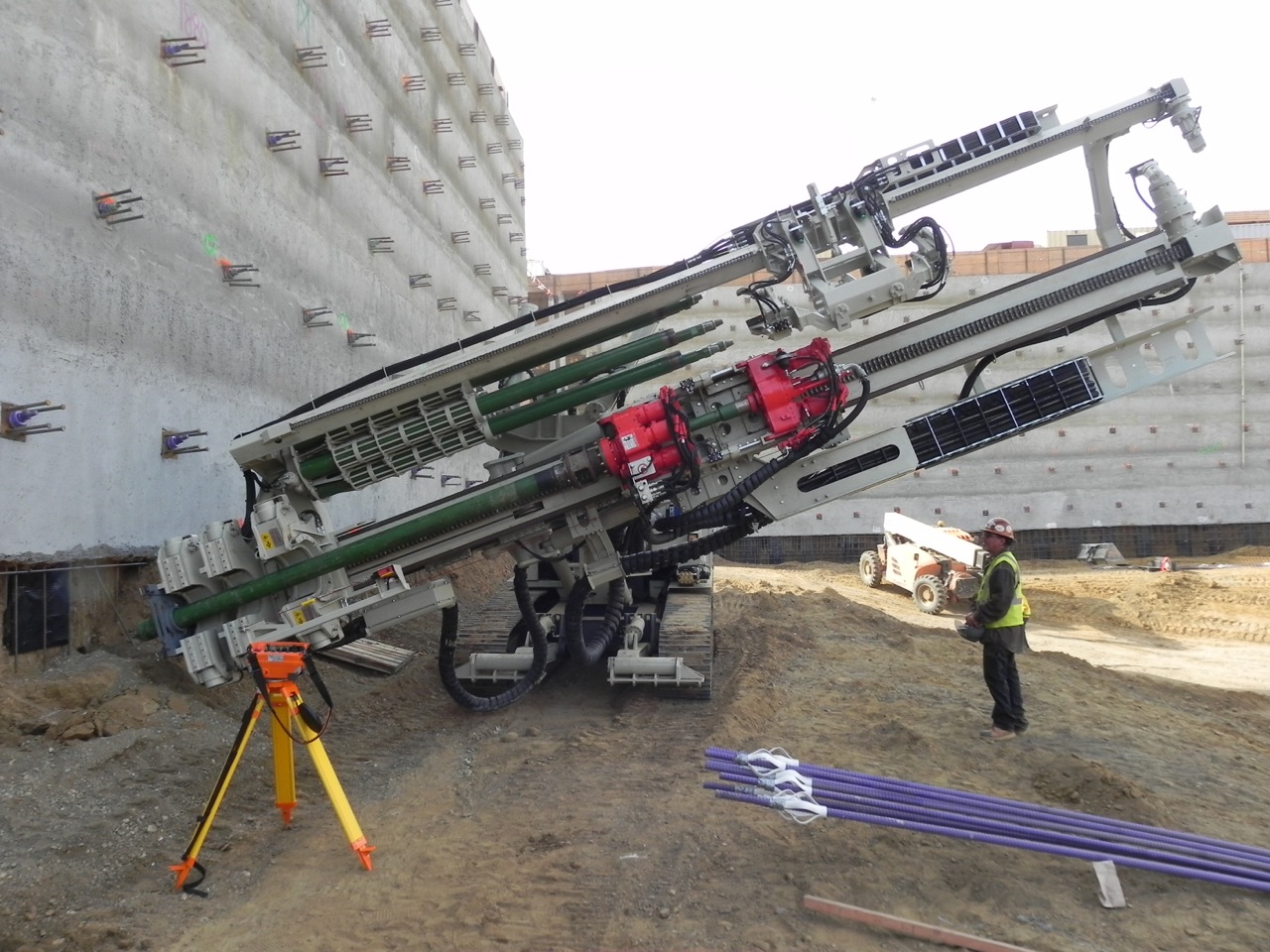

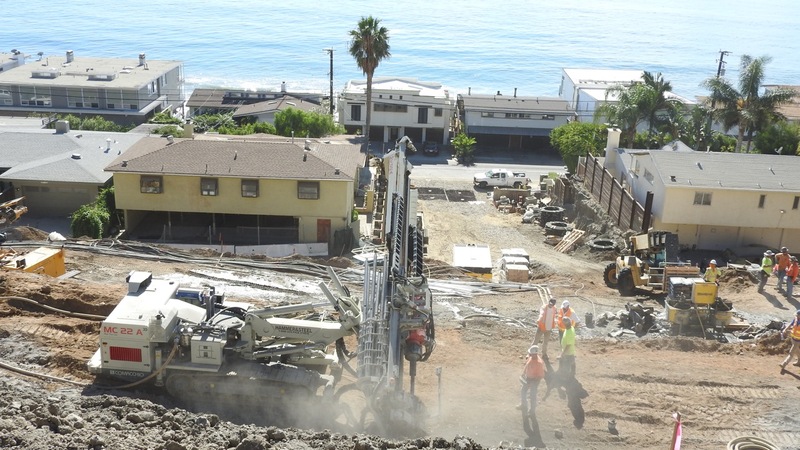

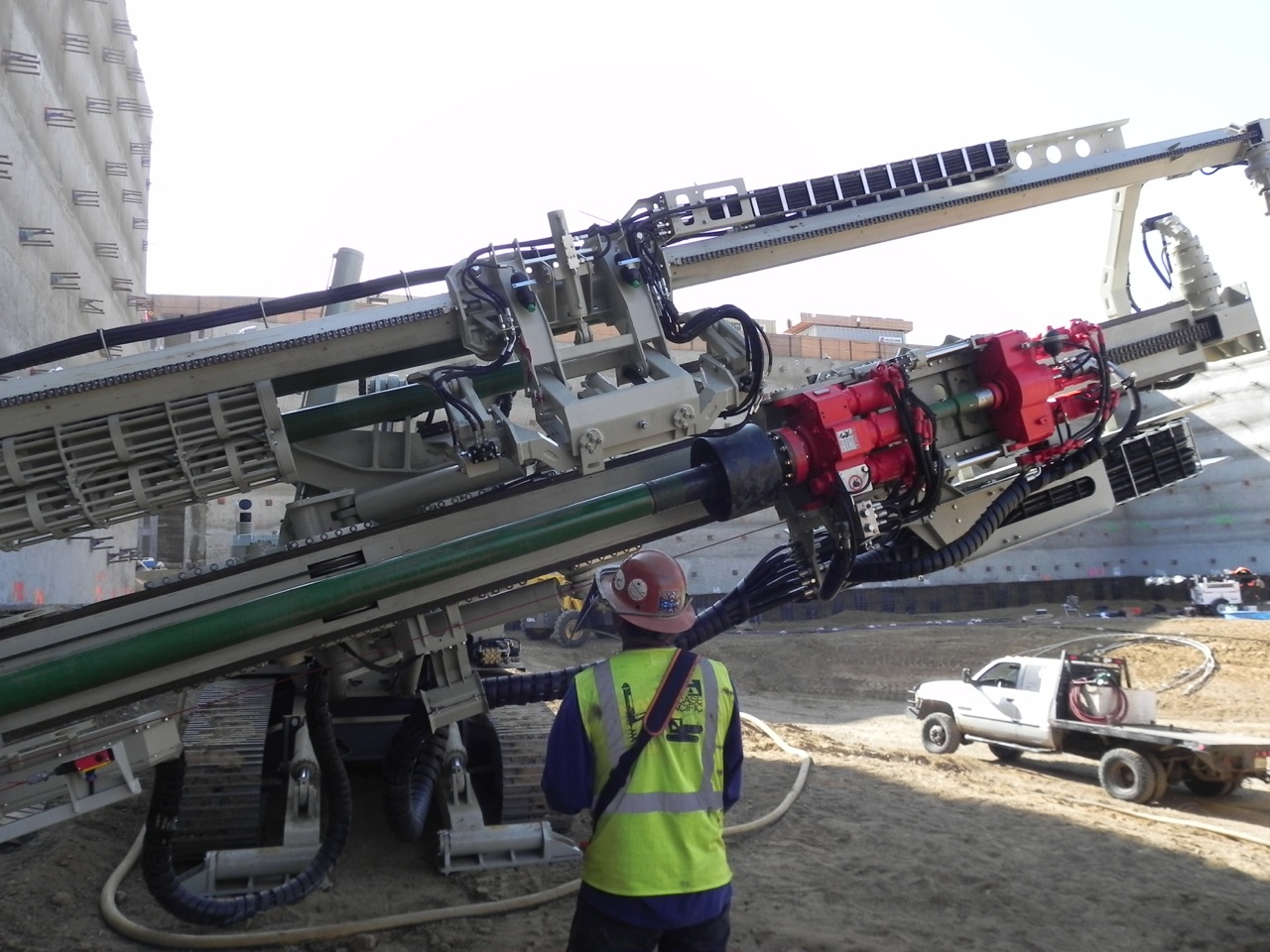

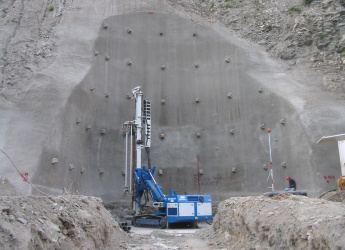

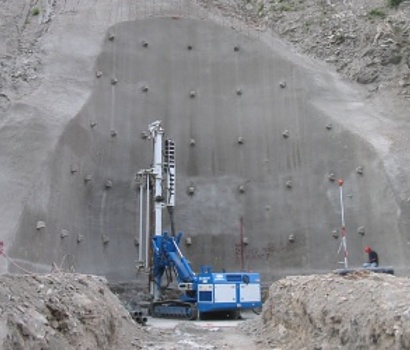

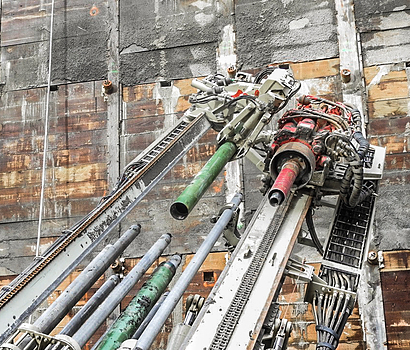

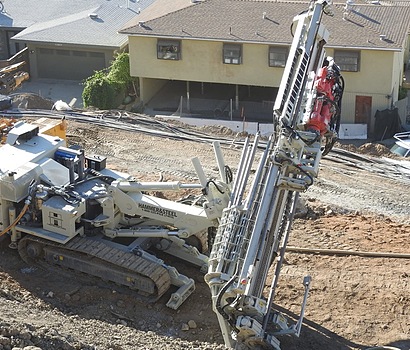

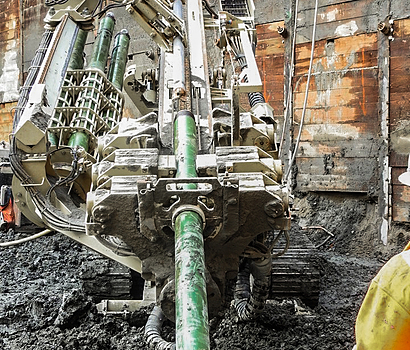

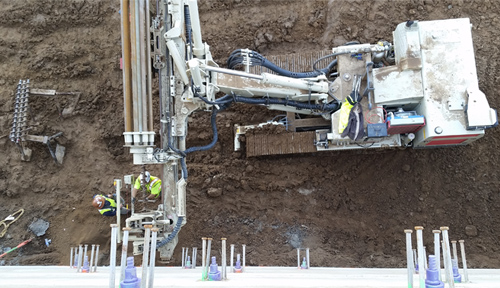

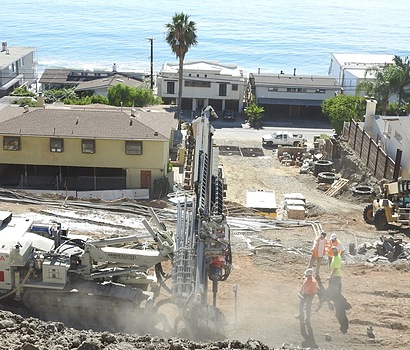

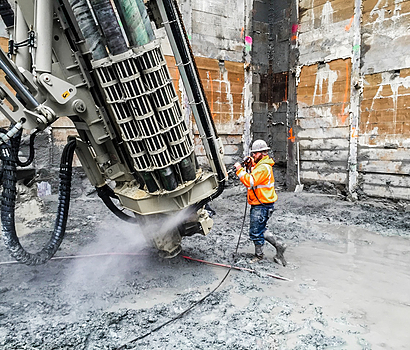

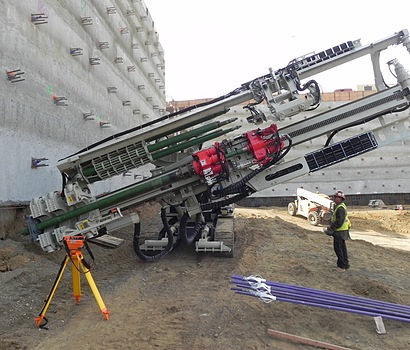

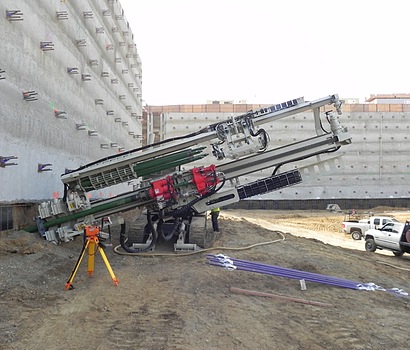

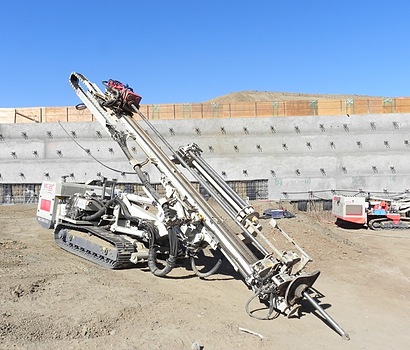

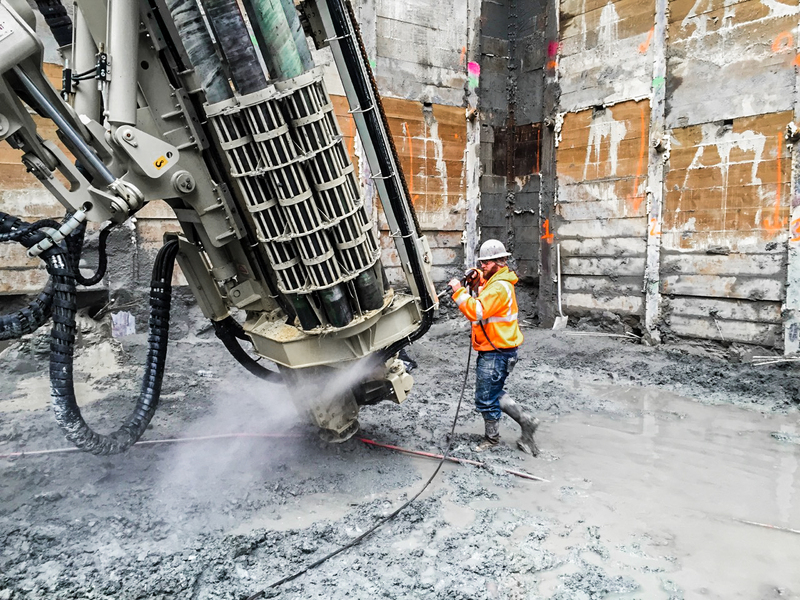

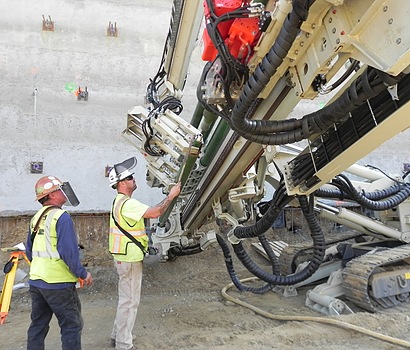

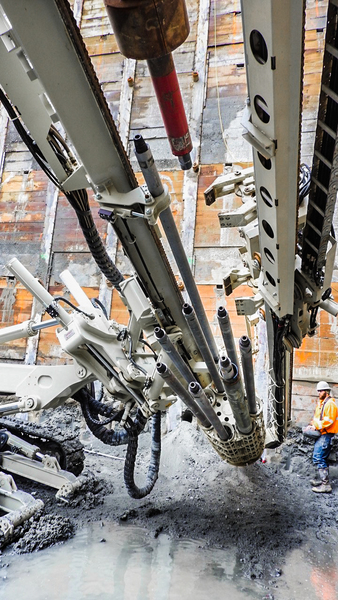

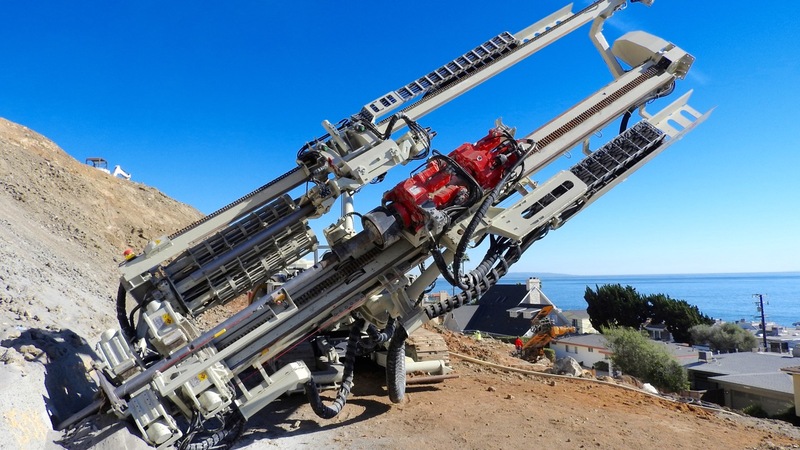

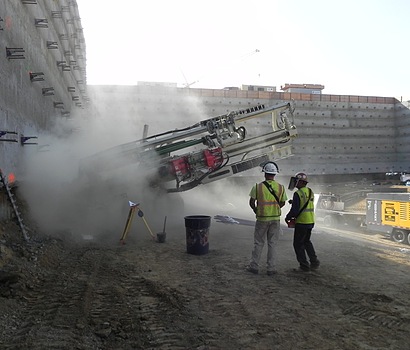

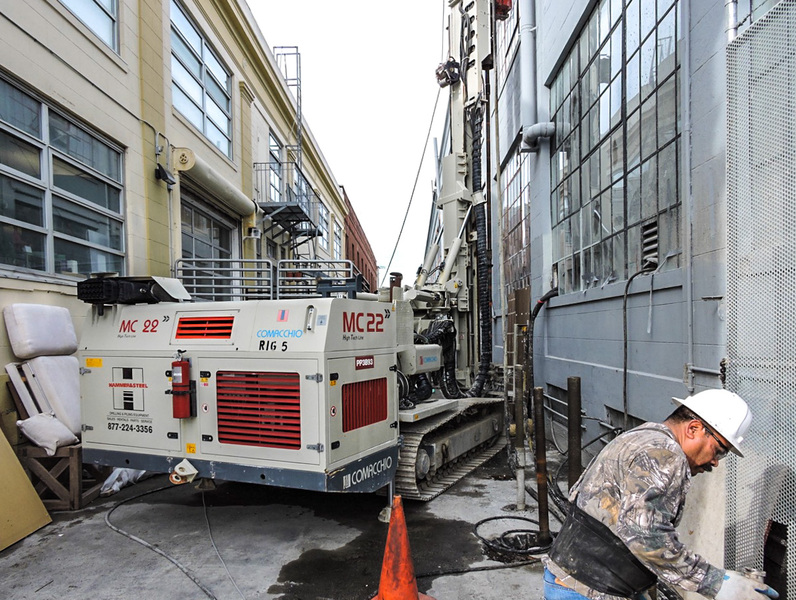

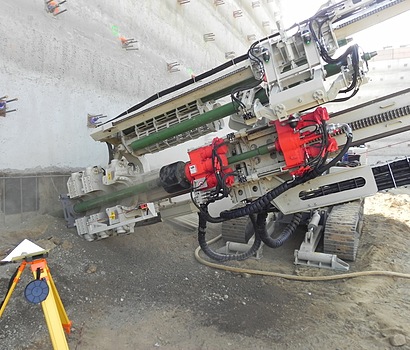

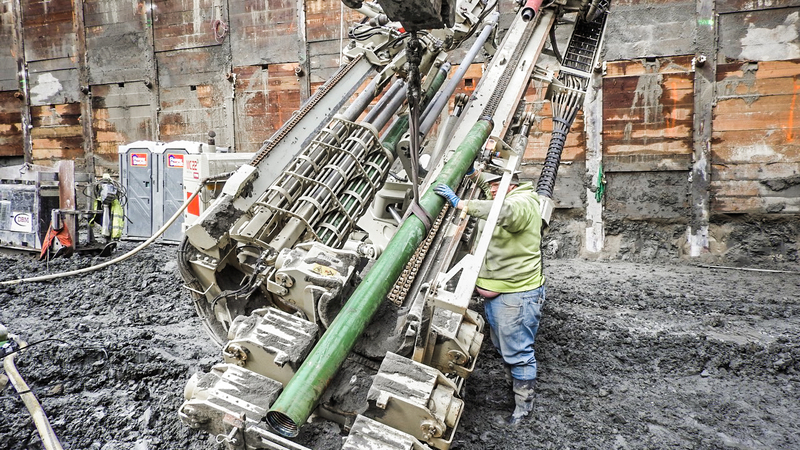

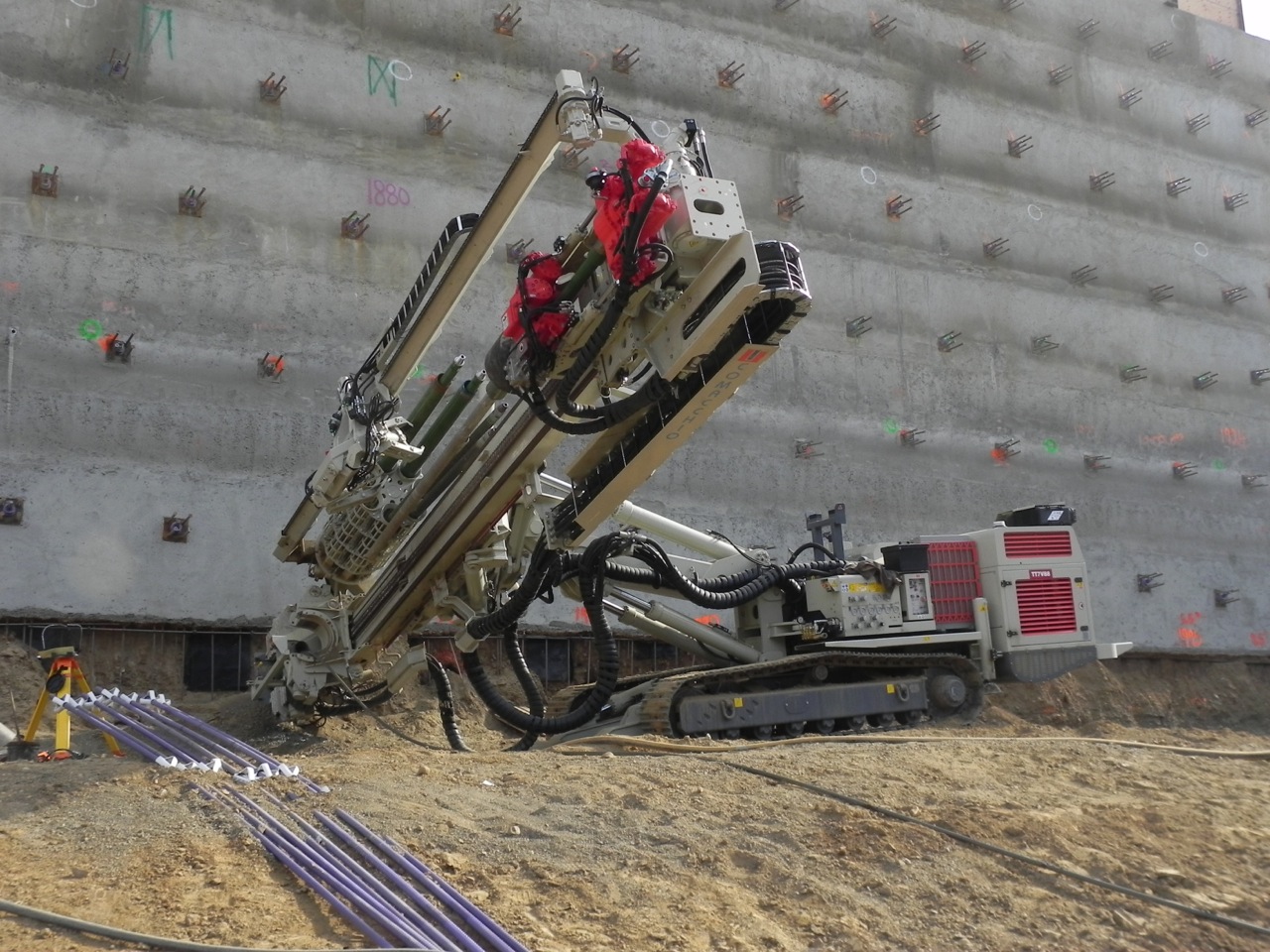

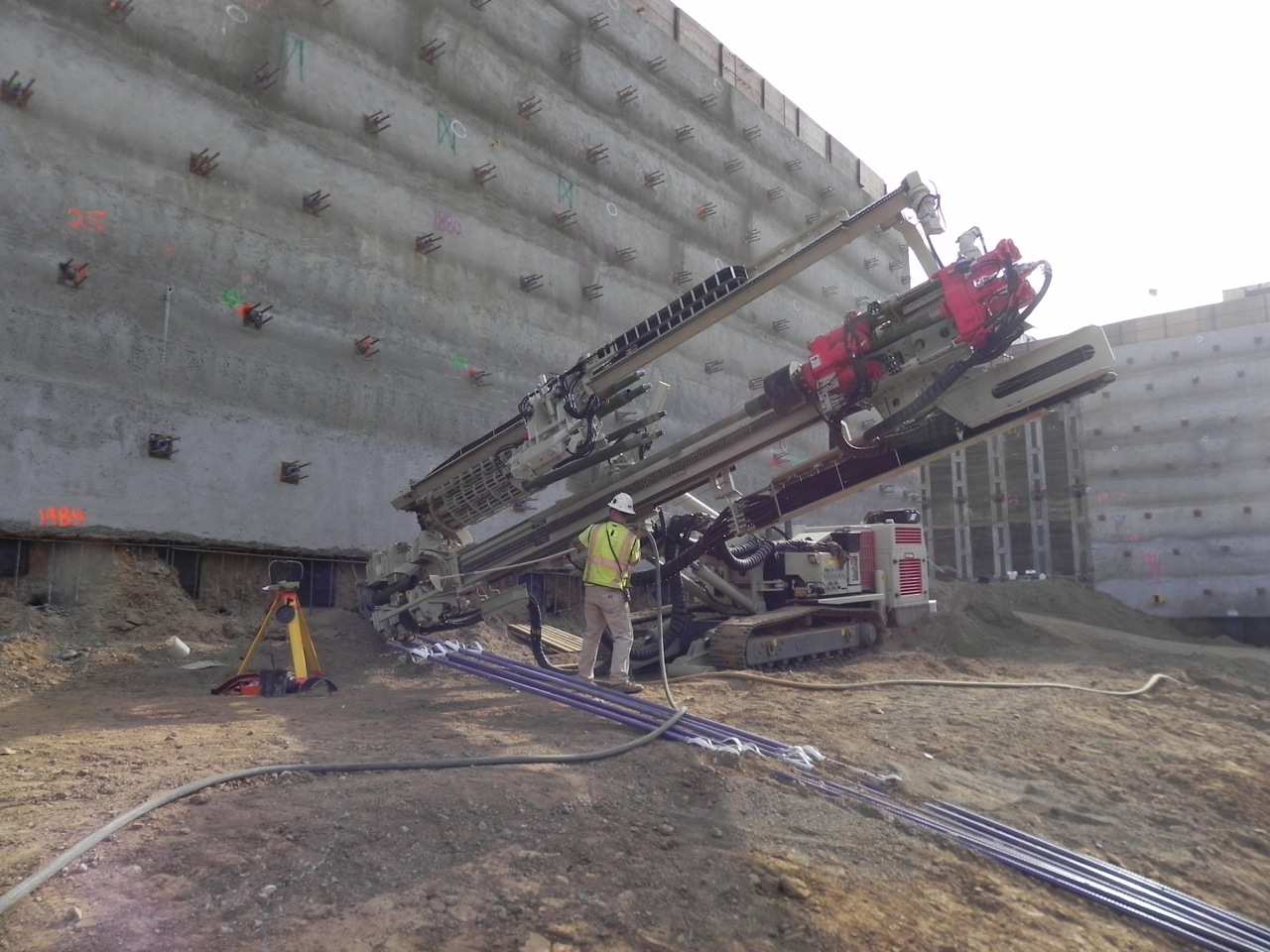

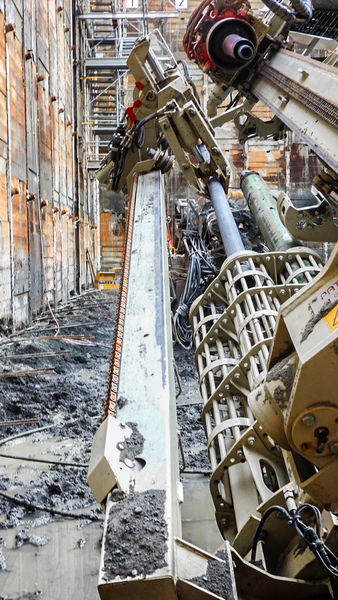

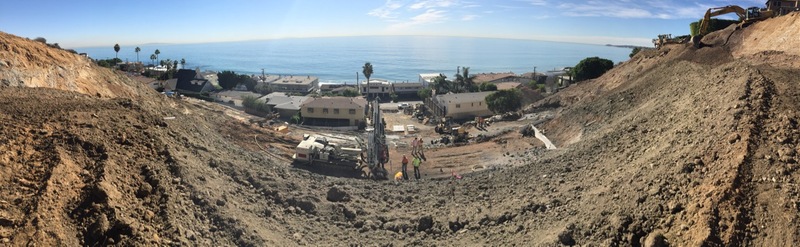

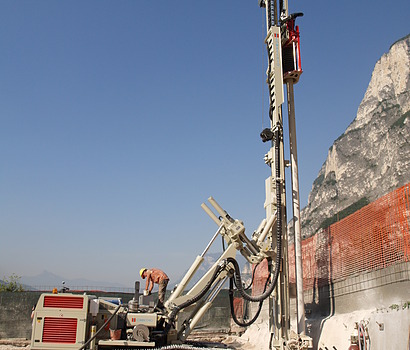

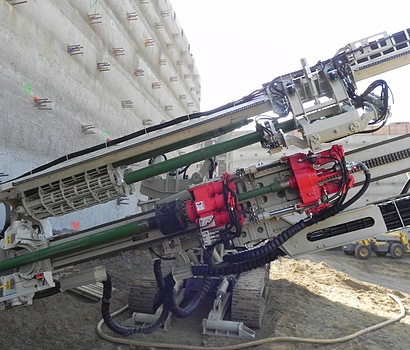

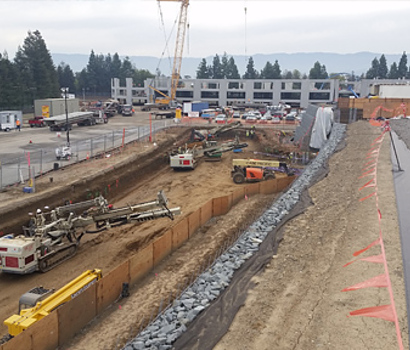

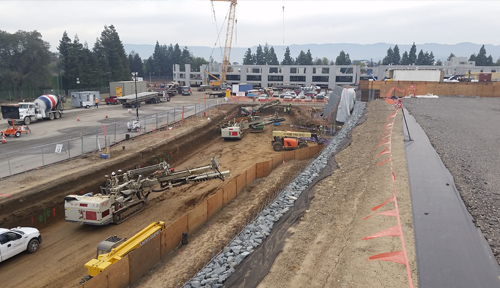

Photo Gallery
