Mobilram Attachments

The Mobilram is a highly versatile rig that can be outfitted with a number of different attachments to perform a wide variety of piling applications quickly and efficiently.

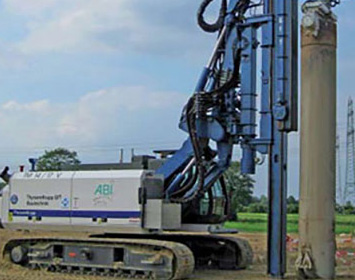

	Vibratory Hammer The Mobilram vibratory hammer with adjustable static moment is suitable for the piling and extracting of steel sections such as sheet pile walls, H-beams and pipes as well as alternative foundation methods like vibro, cast-in-place, gravel, and sand piles.

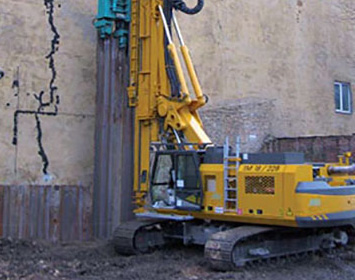

	Dual Auger Casing Drive The Dual Auger Casing Drive is ideal for drilling operations that are directly against adjacent structures (contiguous type, tangential, secant and on-the-wall) and for soilmix applications.

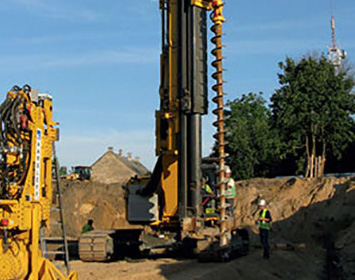

	CFA drill head CFA Drill Head The CFA Drill Head is ideal for applications like ground release drilling, dwell drilling, or pile foundation drilling. The unit contains an injecting head for the installation of CFA piles as well as part and full displacement piles.

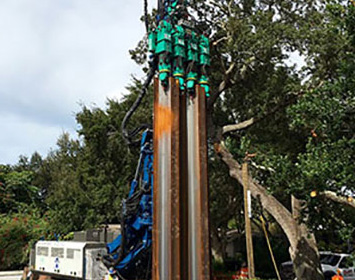

	Z Pile Pusher The "Z" Pile Pusher is ideal for static pressing pile elements on construction sites where noise and vibration emissions have to be reduced to a minimum or for applications where 4 sheets can be pressed at one time to maximize productivity.

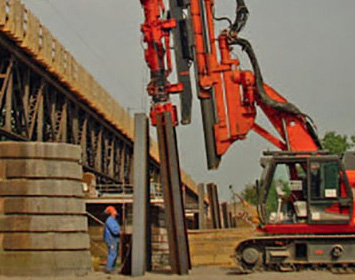

	Diesel Hammers The Mobilram system can also accommodate Delmag diesel hammers which are usable in all displaceable soils and ideal for back driving and for determination of the load bearing capacity.

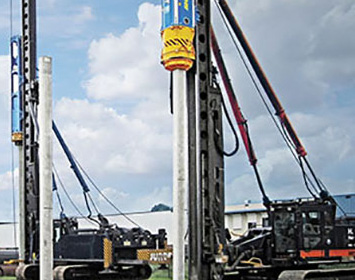

	Hydraulic Impact Hammers Certain Banut hydraulic impact hammers can be attached to the Mobilram rig and are especially designed for impacting pre-fabricated concrete piles.
